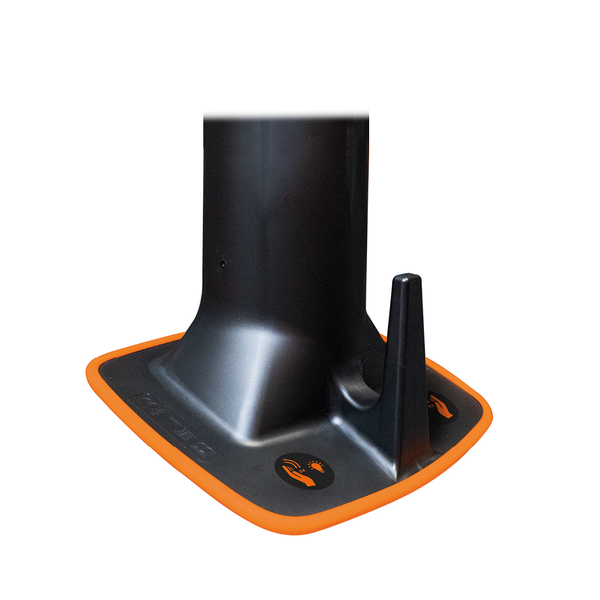

The Hood Pro

Maximum extraction, smart control, and integrated lighting

With The Hood Pro, a new generation of extraction hoods begins. Just double-tap – and you control both extraction and light. The built-in lighting and the enlarged extraction area provide greater comfort, safety, and efficiency when welding.

For use on KEMPER units with extraction arm and lighting or on wall-mounted extraction arms with additional transformer box
Local extraction of welding fumes directly at the source
Also compatible with automatic start-stop systems. In this case, double-tapping on the right controls the automatic system – not the device directly.
Thanks to TouchControl, you can intuitively control the lighting and extraction with a double tap directly on the hood frame – simple, fast and glove-friendly.
Easy focus lens replacement – no screws needed, in just 20 seconds.
Maximum extraction performance thanks to flow-optimised hood shape with over 60% more extraction area.
More brightness: Up to 80% increase in light efficiency compared to before – for better visibility and control in the workplace.
Minimal maintenance thanks to lighting outside the air flow – for consistently reliable extraction performance.
Plug & Play: quick installation of the connection cable
Special light guidance on the area to be extracted – for greater work safety and minimal readjustment
Tap & Go: Control without switches – the first TouchControl function makes it possible.
Can be retrofitted to all KEMPER devices with lighting – even those with automatic start-stop function
Robust, switch-free design
Suction field: ISO 21904-1 compliant
luminous flux: 501.93 lm
Connection Ø: 150 mm
Dimensions (w x t x h): 287 x 361 x 416 mm
Weight: 2.14 kg
Power supply: 24V AC
rotation angle: 360 °
Illumination width: 510 x 445 mm
suction field: 360 °
