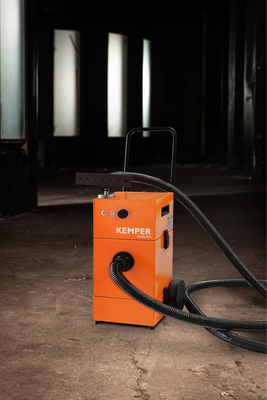

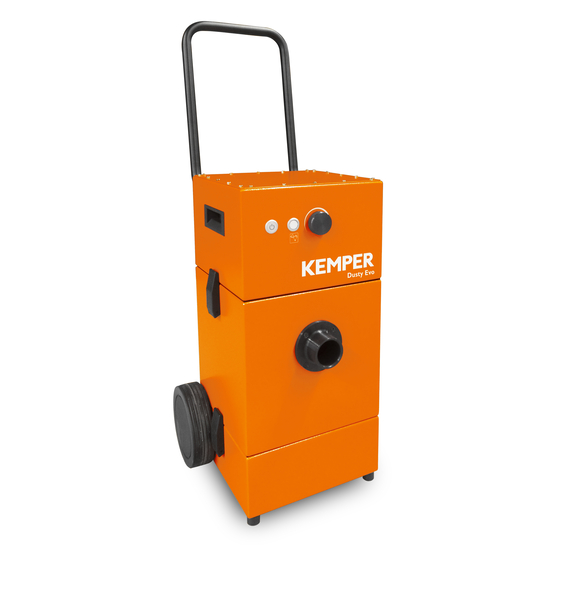

Dusty Evo High Vacuum Smoke Extraction Filter Unit

Lightweight high vacuum extraction unit with a cleanable filter

Dusty Evo is very easy to use and a must for every workshop. With manual filter cleaning for fume extraction on extraction torch, slot and funnel nozzles. Thanks to the large handle the unit is also suitable for mobile use on construction sites and repair work. It is hardly larger than a small trolley.

Low to medium levels of smoke and dust
Occasional use
Nozzles, funnel and torch extraction
Repair work
Alternating work places
High extraction capacity due to two high performance turbines
Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
Easy to transport on site or confined spaces due to rigid handle and recessed grips
For mobile use due to light weight
Optimal adjustment to the welding process with stepless speed control
Manual filter cleaning
Cleaning indicator
KemTex® ePTFE filter cartridge
Portable and mobile
Stepless speed control
Dust collection tray, 6L
Automatic start-stop
Tool tray with cup holder
Suction hose
Slot nozzle
Funnel nozzle
Connector for welding torches
Other voltages
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Manual
Filter surface: 1.35 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.9 %
Dust classification: M
Extraction capacity: 260 m³/h
Max. fan performance: 360 m³/h
Maximum vacuum: 18.100 Pa
Dimensions (w x t x h): 410 x 472 x 1004 mm
Weight: 29,5 kg
Motor power: 1,6 kW
Power supply: 1 x 230 V / 50 Hz / 60 Hz
Rated current: 8,7 A
Noise level: 74 dB(A)
Fan type: Suction turbine
Hose connection: Ø 45 mm / Ø 63 mm
Dust collection tray: 6 l
