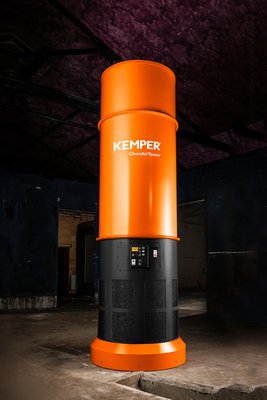

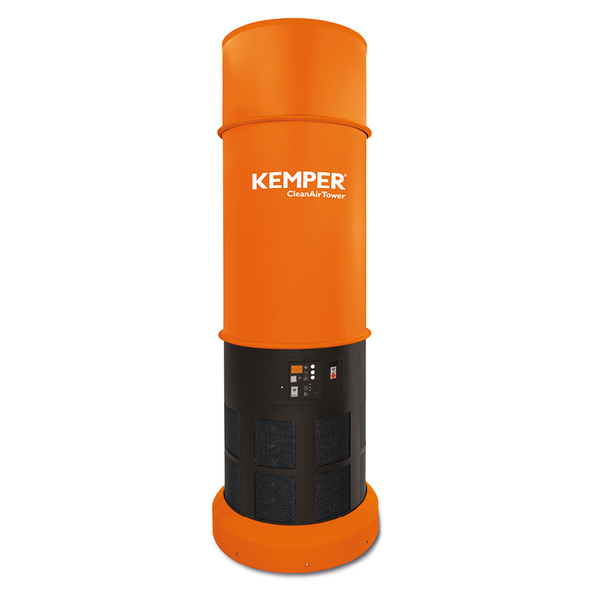

Energy-saving indoor ventilation system
The ventilation system CleanAirTower is used wherever local extraction does not work or is insufficient. It effectively protects employees and machines from fine dust. The purified air is recirculated. The device hardly creates any air turbulence, ensuring that no dust is distributed into clean areas. The CleanAirTower functions according to the displacement ventilation principle recommended by health and safety bodies.
Digitally connected with KEMPER Connect:
Workshops where local exhaust ventilation is not possible
To complement local exhaust ventilation systems
Environments with changing sources of smoke and dust
Workstations, Workshops, Logistic and distribution centres
Low risk potential due to foreign bodies
Effective energy reduction of possible sparks and particles by the pinball method with 7 or more collision points
Effective efficiency through tornado principle
Minimization of heating costs due to air recirculation and air distribution
Enormously long filter lifetime due to optimised air flow
Increased safety with contamination-free dust disposal
Cost-effective installation or retrofit, as no ductwork is needed
New head element can be retrofitted to existing systems
Safe transportation and easy installation by crane eyes
Permanent operation by means of automatic dust disposal in dust collection bin
Automatic filter cleaning
Lifting eyes
Effective baffle plates for spark pre-separation
KEMPER Connect connectivity via mobile network – 6 months included free of charge
Contamination -free dust disposal in one-way containers.
Optimised airflow
Pinball method and tornado principle
Displacement flow principle, recommended by health and safety bodies
System barely generates air turbulence
AirWatch
Filter stages: 1
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 20 m²
Number filter elements: 3
Filter surface total: 60 m²
Filter material: PTFE-membrane
Filter efficiency: > 99.9 %
Dust classification: M
Extraction capacity: 6000 m³/h
Max. fan performance: 10800 m³/h
height: 3617 mm
height: 3617 mm
Diameter: 1172 mm
Weight: 666 kg
Motor power: 5.5 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 11 A
Control voltage: 24 V, DC
Noise level: 72 dB(A)
Fan type: Radial fan, direct driven
Compressed air supply: 5 - 6 bar
Capacity Dust collection container: 10 l
