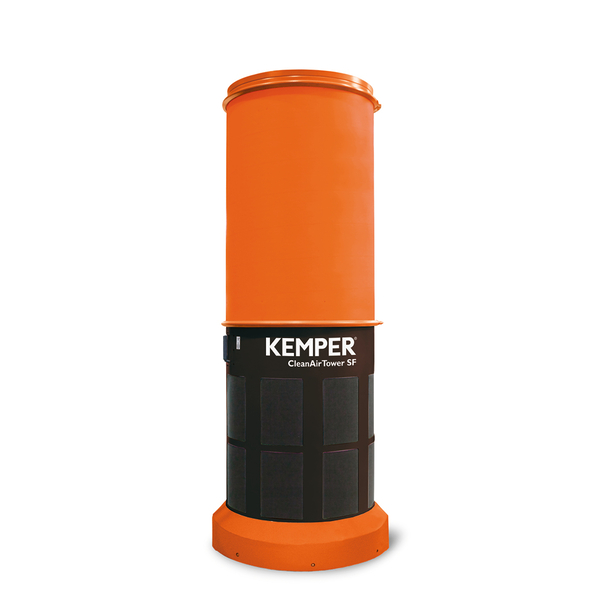

CleanAirTower SF 9000 hall ventilation with storage filter

Hall ventilation with storage filter and 9,000 m³/h extraction capacity

The ventilation system CleanAirTower is used wherever local extraction does not work or is insufficient. The CleanAirTower SF 9000 is equipped with a disposable filter. It effectively protects employees and machines from fine dust. The purified air is recirculated. The device hardly creates any air turbulence, ensuring that no dust is distributed into clean areas. The CleanAirTower functions according to the displacement ventilation principle recommended by health and safety bodies.
Digitally connected with KEMPER Connect:

Low to medium levels of smoke and dust
Workshops where local exhaust ventilation is not possible
To complement local exhaust ventilation systems
Environments with changing sources of smoke and dust
Workstations, Workshops, Logistic and distribution centres
Low risk potential due to foreign bodies
Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud*
Minimization of heating costs due to air recirculation and air distribution
Cost-effective installation or retrofit, as no ductwork is needed
Short-term increase in extraction performance due to TurboBoost function
360 degree extraction radius
KEMPER Connect connectivity via mobile network – 6 months included free of charge
Slow, low-impulse air circulation
Displacement flow principle, recommended by health and safety bodies
Control via touch panel
System barely generates air turbulence
TurboBoost Function
AirWatch
Filter stages: 2
Filter method: Storage Filter
Filter surface: 100 m²
Filter material: nano-cellulose
Filter efficiency: > 99.9 %
Dust classification: M
Extraction capacity: 9000 m³/h
Max. fan performance: 11000 m³/h
height: 3050 mm
height: 3050 mm
Diameter: 1172 mm
Weight: 446 kg
Motor power: 5.7 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 9 A
Control voltage: 24 V, DC
Noise level: 70 dB(A)
Fan type: Centrifugal fan with EC motor
