Cost-effective welding fume filter solution for modular installation

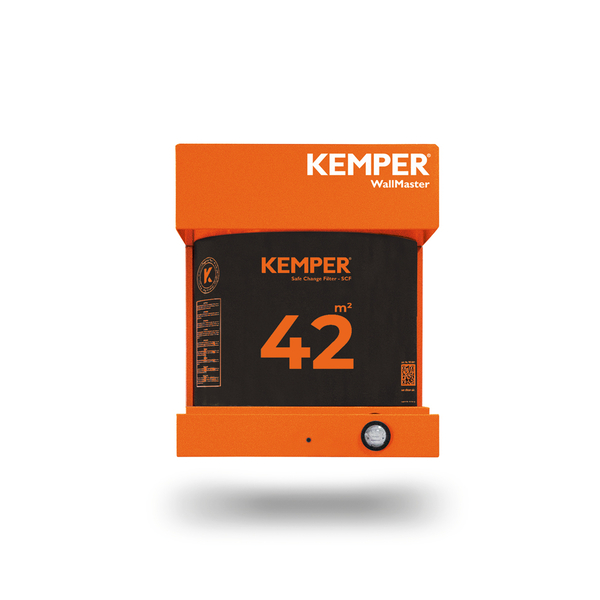

The wall-mounted welding fume filtration system Wallmaster is a cost-effective filter solution for the modular setup of extraction systems. The filter medium integrated in a compact housing can be easily combined with both new and existing extraction elements. The SafeChangeFilter from KEMPER enables contamination-free filter changes, which also has a particularly high filter surface area of 42 square metres.
Medium levels of smoke and dust

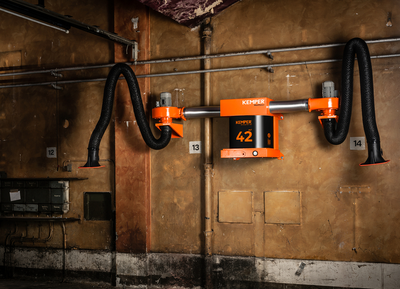

Modular extensionin combination with capturing elements
One or two workplaces
Increased safety with safe filter change
Very economic due to long lasting high capacity filters
Inexpensive welding smoke filter for retrofitting of existing capturing elements
Robust filter monitoring by means of pressure gauge
Integrated lifting device for filter change
Easy and quick installation
Retrofittable
Compact and solid design
Mechanical operation of the filter unit
Filter stages: 2
Filter method: Storage Filter
Filter surface: 42 m²
Type of filter: Safe Change Filter
Filter material: Non-woven polyester
Filter efficiency: > 99.5 %
Filter class: E12
Dimensions (w x t x h): 765 x 715 x 795 mm
Weight: 65 kg
Suitable for air volumes of up to: 1600 m³/h
