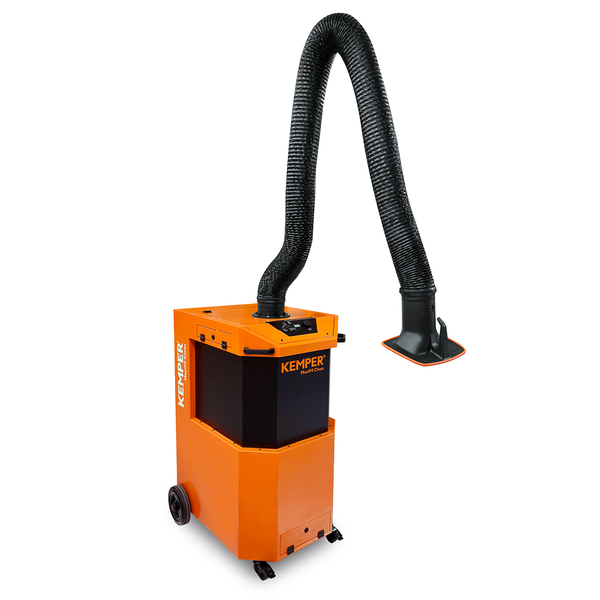

NEW Kemper 2 M ARM, FLEXIBLE EXHAUST ARM

Self-cleaning suction and filter unit for welding smoke and contamination free dust disposal
The welding smoke extraction unit MaxiFil Clean has a self-cleaning filter in combination with an automatic, contamination-freedust disposal. Its high mobility and a 360-degree operating radius make it the ideal device for continuous use. The simple filter unit easily handles applications with large amounts of smoke and dust.

Suitable for all materials, including high-alloy steel
High levels of smoke and particles
Non-stop operation
Safe operation by rotation field control
Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
Increased safety due to filter monitoring
Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
Very economic due to long lasting high capacity filters
Easy to use: Intuitive & ergonomic one-button operation
Disposal of welding fumes in disposable bags
Spark pre-separator made of aluminium mesh
Automatic filter cleaning
Exhaust arm up to 4 m
Automatic Start-Stop (optional)
Lighting in the hood (optional)
Cleanable filter
Rotating exhaust hood
The Hood Pro – extraction hood with lighting and TouchControl
Automatic start-stop
Various arm lengths and versions
Other voltages
Filter method: Cleanable filter
Filter cleaning method: Rotating nozzle
Filter surface: 15 m²
Type of filter: Filter cartridge
Filter material: KemTex® ePTFE membrane
Filter efficiency: > 99.9 %
Dust classification: M
Additional filters: Spark pre-separator made of aluminium mesh
Additional filters: Spark pre-separator made of aluminium mesh; H13 HEPA filter
Extraction capacity: 1450 m³/h
Max. fan performance: 4400 m³/h
Maximum vacuum: 3300 Pa
Dimensions (w x t x h): 834 x 973 x 1350 mm
Weight: 197 kg
Motor power: 2.2 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 4.4 A
Control voltage: 24 V, DC
Noise level: 73 dB(A)
Fan type: Radial fan
Compressed air supply: 5 - 6 bar
Quantity of extraction arms: 1
Exhaust arm type: flexible exhaust arm
Diameter extraction arm: 150 mm
Length of exhaust arm: 2 m
