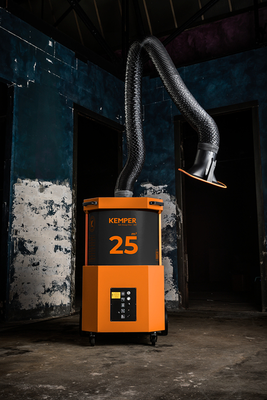

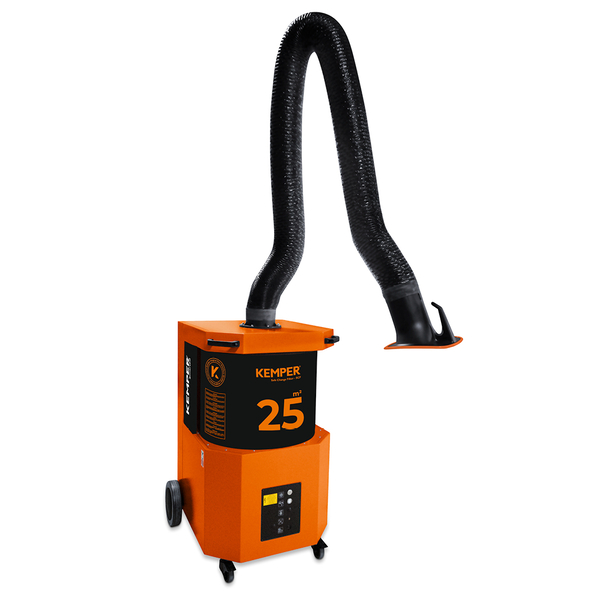

NEW Kemper 4 M ARM, FLEXIBLE EXHAUST ARM

Compact welding fume extraction unit for regular use during welding

SmartFil is a mobile welding fume filtering unit for regular use in welding with medium amounts of fumes and dust. The disposable filter of the extraction unit has a particularly high filter surface of 25 m² and is changed completely contamination-free when saturated. SmartFil effectively protects the user from welding fumes and is particularly economical thanks to its long service life.

Suitable for all materials, including high-alloy steel
Medium levels of smoke and dust
Frequent use
Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
Increased safety due to filter monitoring
Increased safety with safe filter change
Very economic due to long lasting high capacity filters
25m² filter surface
Compact and solid design
W3/IFA certified
Automatic Start-Stop (optional)
Lighting in the hood (optional)
Exhaust arm 4 m
The Hood Pro – extraction hood with lighting and TouchControl
Automatic start-stop
Filter stages: 2
Filter method: Storage Filter
Filter surface: 25 m²
Type of filter: Safe Change Filter
Filter material: Cellulose with polyester nanofibre fleece
Filter efficiency: > 99.5 %
Filter class: E12
Additional filters: Pre-filter (aluminium); H13 HEPA filter
Extraction capacity: 1100 m³/h
Max. fan performance: 3000 m³/h
Dimensions (w x t x h): 795 x 836 x 1169 mm
Weight: 131 kg
Motor power: 1.5 kW
Power supply: 3 x 400 V / 50 Hz
Rated current: 3.1 A
Control voltage: 24 V, DC
Noise level: 70 dB(A)
IFA-Certification: W3-Approved
Fan type: Radial fan
Exhaust arm type: flexible exhaust arm
Diameter extraction arm: 150 mm
Length of exhaust arm: 4 m
