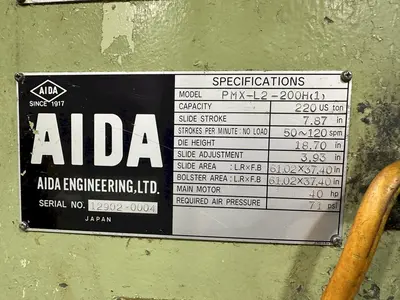

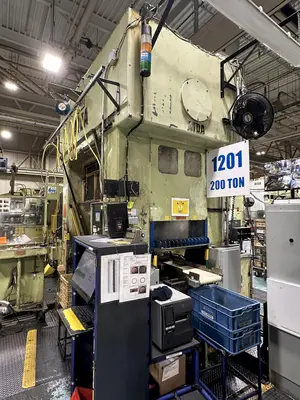

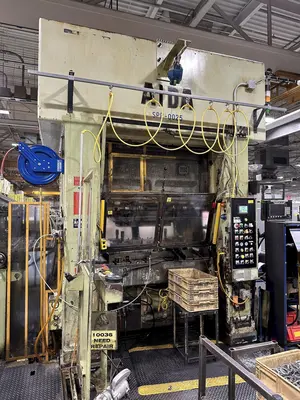

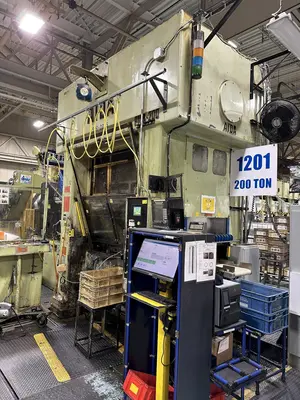

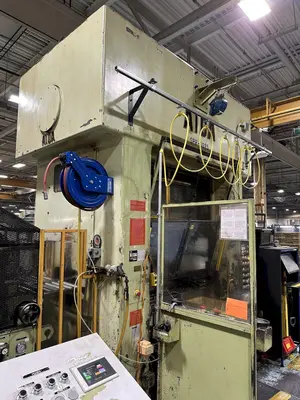

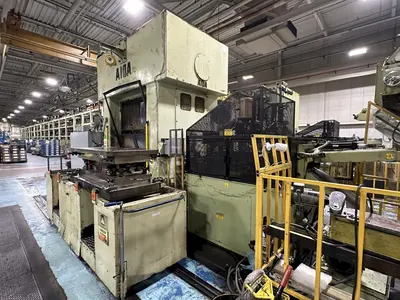

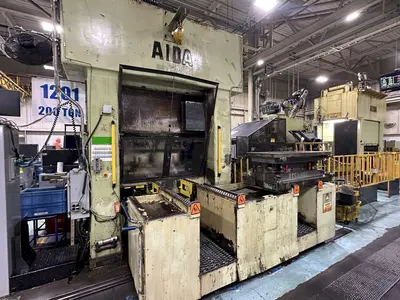

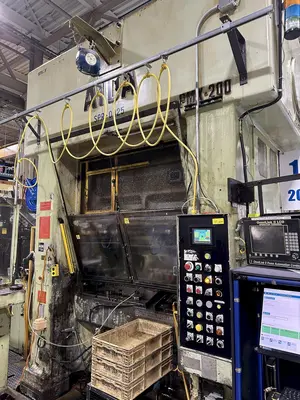

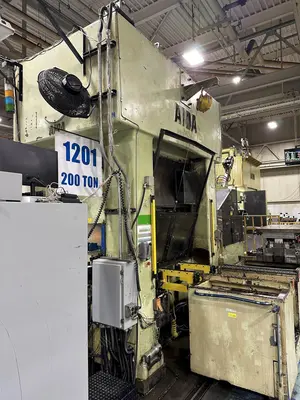

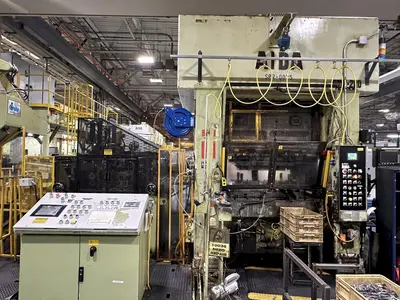

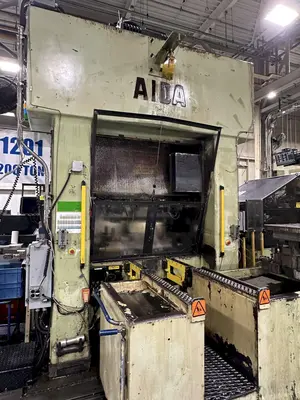

USED AIDA PMX-L2-220H(1)

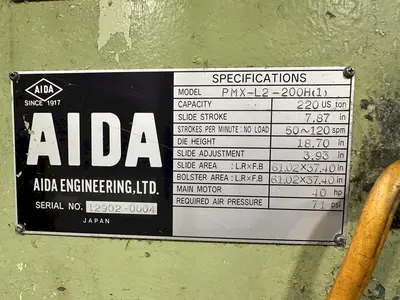

SERIAL ..................... 12902-0004
MODEL ...................... PMX-L2-220H(1)
STROKE ..................... 7.87"
ADJUSTMENT ................. 3.93"
DIE HEIGHT ................. 18.7"

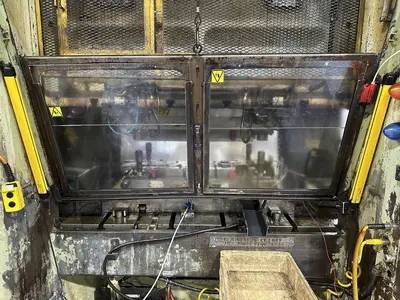

SLIDE AREA ................. 61.02" X 37.4"
BOLSTER AREA ............... 61.02" X 37.4"
STROKES .................... 50 TO 120 SPM

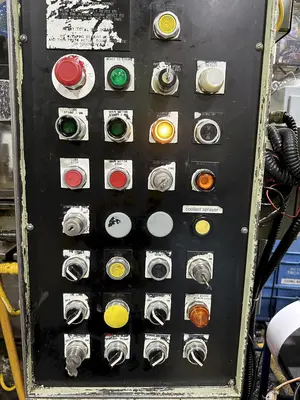

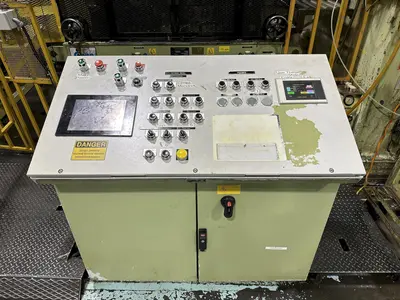

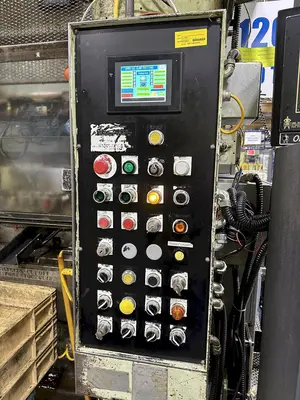

CONTROLS ................... OMNILINK II LCD
MAIN MOTOR ................. 40 HP

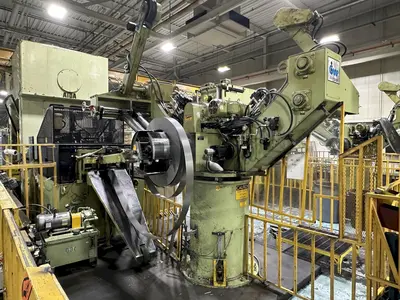

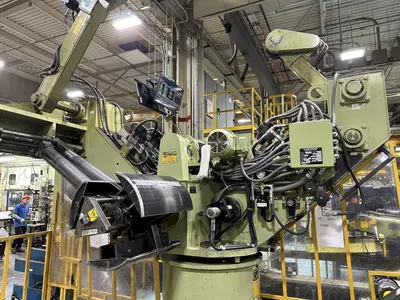

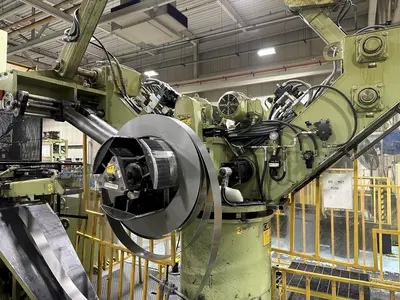

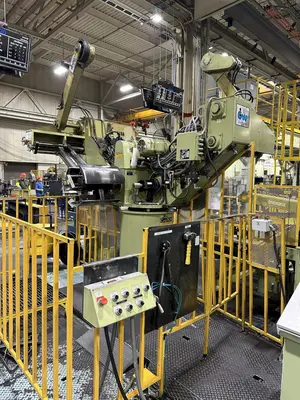

COIL REEL
SERIAL ..................... C25669-5
MODEL ...................... 4RDN-18
COIL WEIGHT ................ 8,000 LBS
WIDTH ...................... 18"
COIL OD .................... 60"
COIL ID .................... 18" TO 20.5"
ID EXPANSION ............... HYDRAULIC
FLOOR TO SPINDLE CENTER .... 42"
SPEED ...................... 900 IPM

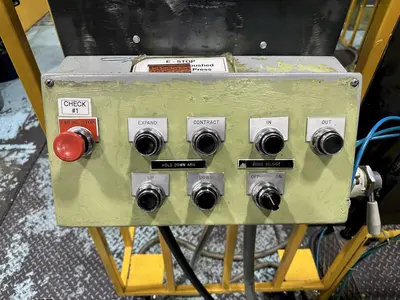

HOLD DOWN ARMS ............. PNEUMATIC
MOTORS ..................... 2 X 2 HP

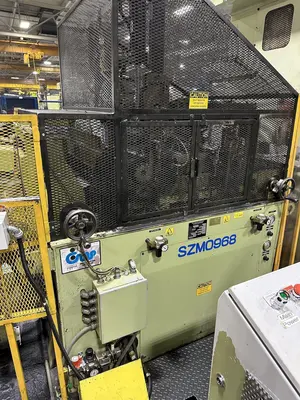

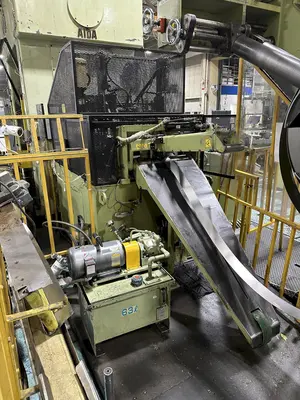

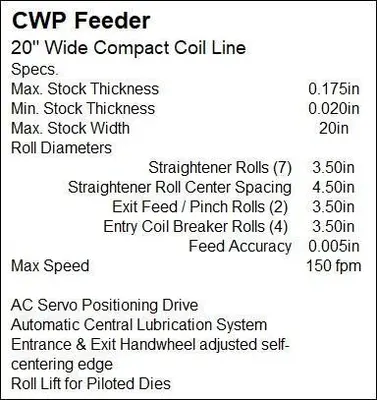

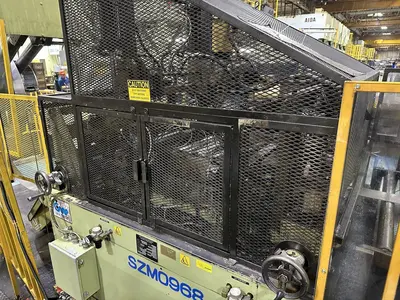

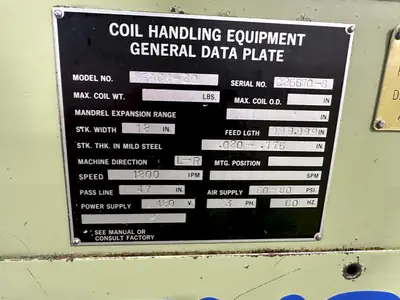

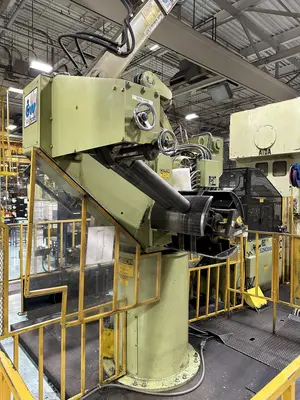

FEEDER / STRAIGHTENER
SERIAL  .................... C25670-S
MODEL ...................... DFAC1-20
DIRECTOIN .................. L-->R
PEELER ARM ................. YES
THREADING TABLE ............ YES
STOCK WIDTH ................ 20"
THICKNESS .................. .020" TO .175"
STRAIGHTENING ROLLS ........ 7 X 3.5"
ROLL CENTERS ............... 4.5"
ENTRY BREAKER ROLLS ........ 4 X 3.5"
EXIT FEED / PINCH ROLLS .... 2 X 3.5"
FEED ACCURACY .............. .005"
MAX SPEED .................. 150 FPM
PASS LINE .................. 47"
POSITIONING DRIVE AC SERVO . YES
CENTRAL LUBE AUTOMATIC ..... YES

Brand
AIDA
Type
Coil Feed Lines
Stock No.
22213
