USED ALLEN-BRADLEY 194R-NJ030P3
Overview
Description

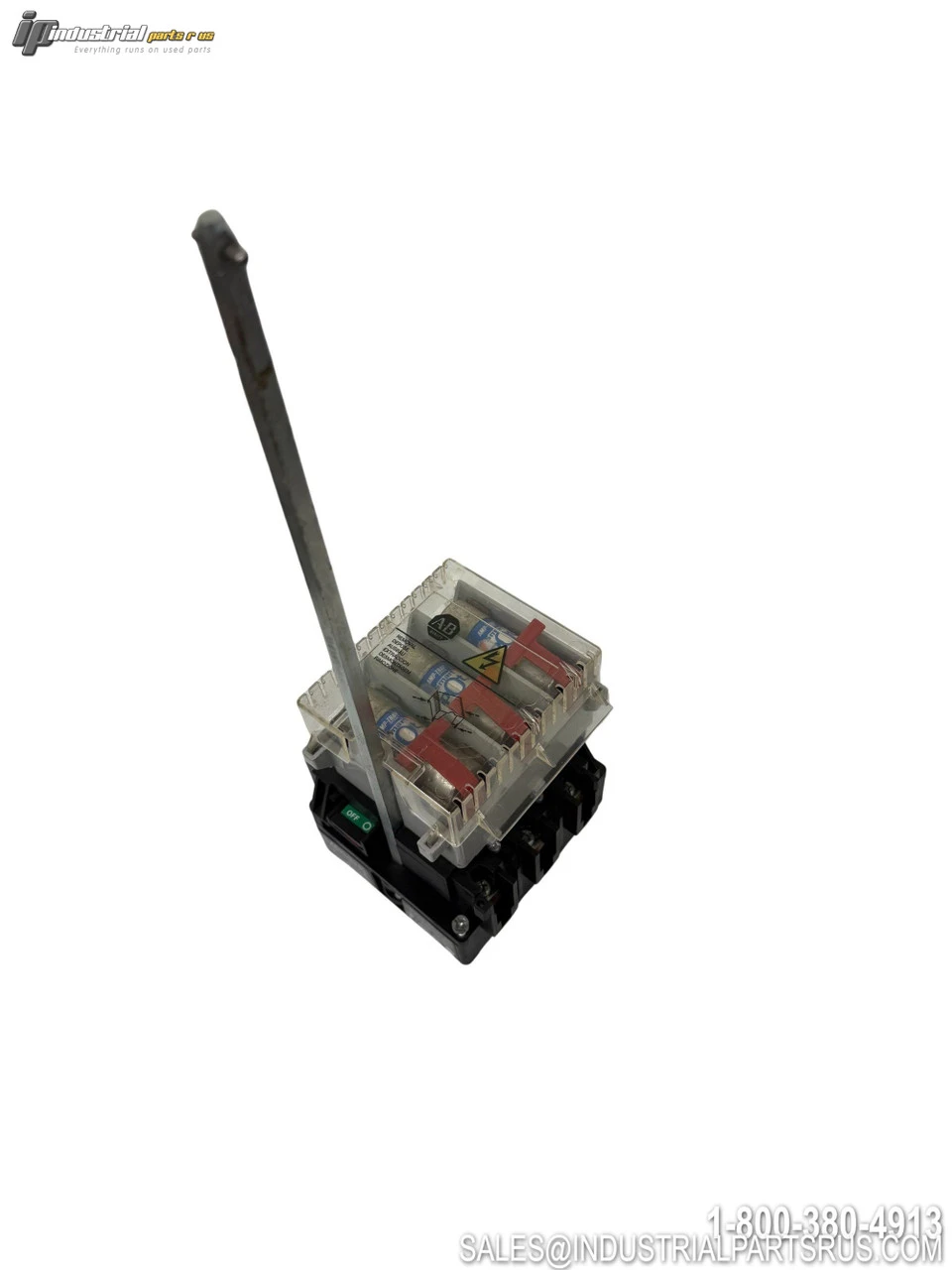

The Allen-Bradley 194R-NJ030P3 is an open-style fused disconnect switch designed for reliable power isolation in industrial applications. This IEC-compliant rotary switch provides safe disconnection for motors and service entrance applications with UL Class CC & J and CSA HRCI-J fuse compatibility.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
194R-NJ030P3
Type
Fused Disconnect Switch
Current Rating
30 Amps
Voltage Rating AC
600 VAC
Voltage Rating DC
250 VDC
Poles
4
Phase Configuration
3-Phase or Single Phase
Enclosure Style
Open-Style
Mounting Type
DIN Rail
Handle Type
Rotary
Fusible
Yes
Fuse Class Compatibility
UL Class CC & J, CSA HRCI-J
Short Circuit Rating
200 kA
Operating Temperature
-2 to 55°C
Operating Temperature (Enclosed)
-20 to 40°C
Storage Temperature
-40 to 65°C
Max Operating Altitude
2000 meters
Standard Compliance
IEC 60947-1, NFPA 79
Weight
1.74 lbs
Features
Touch-Safe Design, Electrically Isolated Phases, Double Break Switching, RoHS Compliant
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 4.00 LBS | 4.00 LBS |
|---|
SKU: AI1085
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 16.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Allen-Bradley
Enclosure Type: Open-Style
Part Number: 194R-NJ030P3
Shelf: C-12
Model: 194R-NJ030P3
MPN: 194R-NJ030P3
Type: Disconnect
