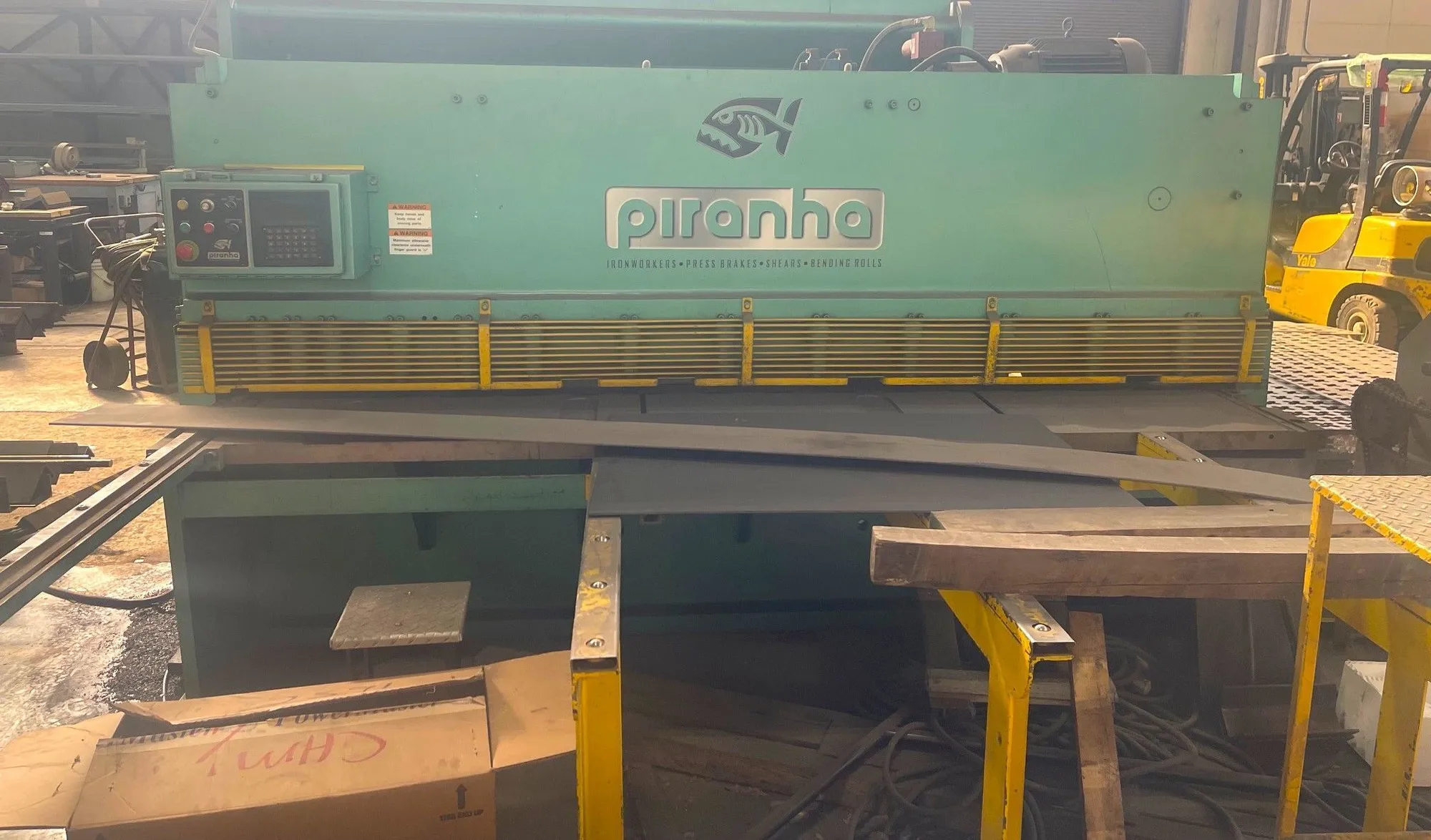

USED PIRANHA M 1/4-10 HYDRAULIC POWER SHEAR
Overview
Manufacturer:
PIRANHAStock #:
95135
Description
1/4" x 10'
Specifications
| size | 1/4" x 10' | 1/4" x 10' |
|---|---|---|
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 120' | 36.6 m |
| Hyd/Mech | Hyd | Hyd |
| Power | 20 hp | 14.9 kW |
| SPM | 48 strokes/min. | 48 strokes/min. |
| Weight | 17000 | 17000 |
Piranha M1/4-10 Hydraulic Power Squaring Shear
Capacity, Mild Steel: 1/4″
Capacity, Stainless Steel: 3/16″
Rake Angle (inches/foot): 1/4″
Strokes @ 2/3 Capacity, Full Cut Length: 24 SPM
Strokes @ 2/3 Capacity, Min. Cut Length: 48 SPM
Knife Size: 1″ X 3″
Number of Hold Downs: 13
Max. Hold Down Force: 17 Tons
Motor: 20 HP
Approx. Overall Dimensions: 134″ x 67″ x Height 84″
Approx. Weight: 17,000 LBS
Equipped With
Squaring Arm
36" Front Operated Back Gauge
Roller Bearing Front Supports
