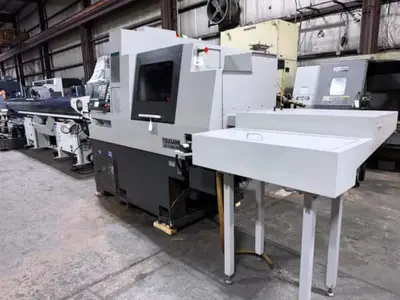

Tsugami B0386-III – 2018

Tsugami BO386-III
machine specifications

High Speed Rapid Traverse: 1260 IPM

Max Bar Capacity: 1.5″ (38 mm)

Max tool positions: 29

Max. Drilling Diameter: 0.511″ (13 mm)

Max. tapping diameter: M12

Main Spindle Indexing: 360° (Full C-Axis)

Main Spindle Speed: 200 – 6.000 RPM

Main Spindle Motor: 11 kw

Back Spindle Indexing: 360° (Full C-Axis)

Back Spindle Speed: 200 – 7,000 RPM

Back Spindle Motor: 5.5 kw

Front turning stations: 5

Back turning stations: 5

Front drilling head stations: 5

Turning stations: 2

Live cross mill stations: 4

Live sub milling stations: 8

Driven Tool Speed: 200 – 6,000 RPM

DRIVEN TOOL MOTOR: 1.4 kw

Power Source: AC 220v / 3-Phase /60 Hz

Power Requirement: 22.4 kva

High without Bar Feeder: 88″ X 60″ X 81″

Weight: 10,694 lbs. Approx.
machine equipped with

Edge Patriot 551 12′ magazine barloader

Tri-Mist Collector

Misc. Tooling
