HGG SPC 1200RB Automated CNC Pipe Cutting and 3D Profiling Machine

HGG SPC1200RB Automated CNC Pipe Cutting and 3D Profiling Machine

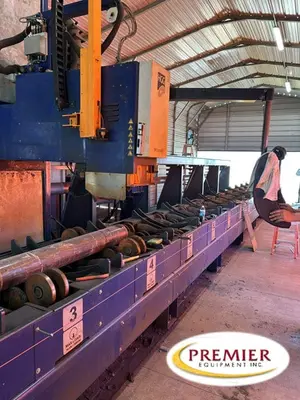

The HGG SPC1200RB is a high-accuracy, automated CNC pipe cutting and 3D profiling machine designed for heavy-walled pipes, combining a roller bed for loading with a chuck for precise rotation. It handles pipe diameters from 75 mm to 1225 mm (3″–48″) and lengths typically between 20 and 40 feet

Key Technical Specifications & Features:
Pipe Diameter Range: 75 mm – 1225 mm (3” – 48”)
Maximum Pipe Weight: 12 tons (26,455 lbs)
Max Wall Thickness: Up to 150 mm (approx. 6”)
Cutting Technologies: High-definition plasma and oxy-fuel
Cutting Angle: Up to 70 degrees for complex weld preparations
Material Handling: Automated infeed/outfeed conveyor roller beds.
Accuracy Features: Floating chuck for rotation stability and sensor-based distance control

Common Applications:
3D profiling on thick-walled pipes
Hillside holes, nozzle cutting, and reinforcement pads
Complex X- and K-weld preparations

The SPC1200RB is designed for continuous production, streamlining workflows by reducing manual handling, utilizing advanced 3D cutting, and integrating directly with CAD/CAM data
