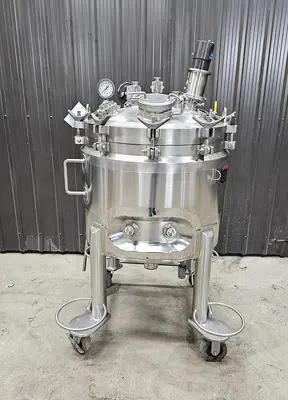

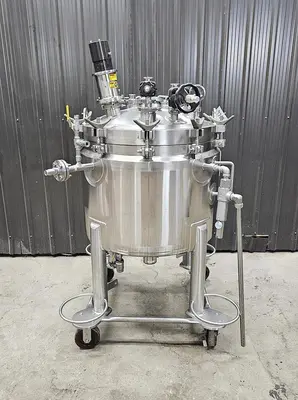

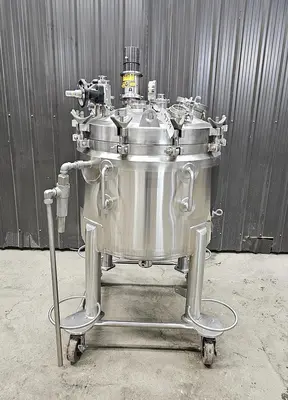

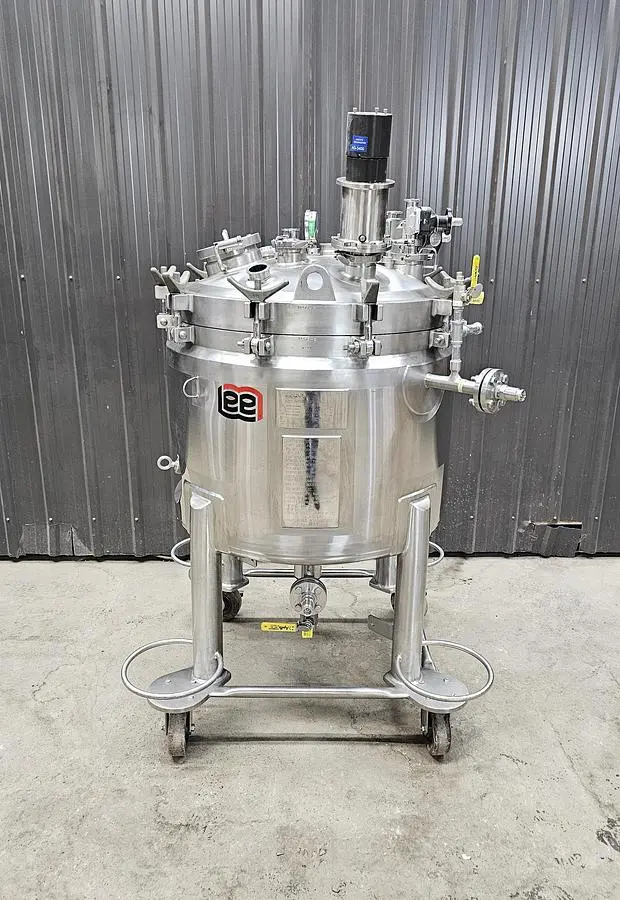

USED LEE INDUSTRIES INC. 250L DP
Overview
Description
-reactor working capacity: 250 liters
-jacket pressure rating: 90 psi @ 351 deg.f
-vessel mawp: 45 psi @ 351 deg.f
-vessel rated full vacuum

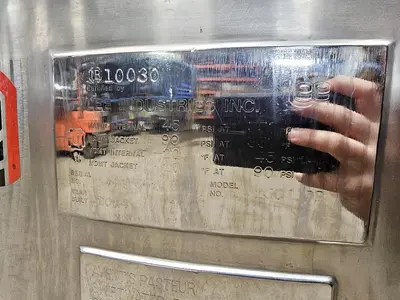

-national board no. 10030

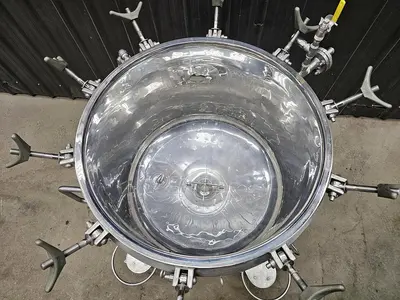

-sanitary interior mirror polish
-heavy duty bolt down lid

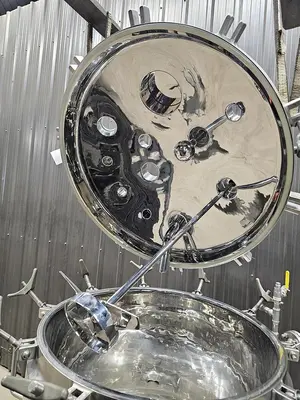

-with mixer shaft: 27'' long x 8'' a310 impeller with stabilizer ring (motor not included)
-interior dimensions: 30'' diameter x 20'' straight side, plus dish top & bottom

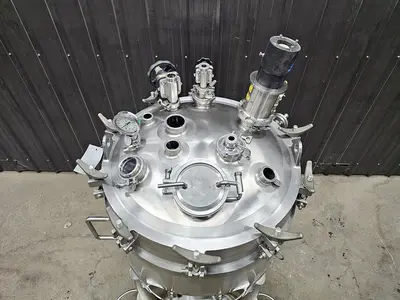

-top inlets: 6 x 3'', 3 x 1.5'', 1 x 2'' tri-clamps

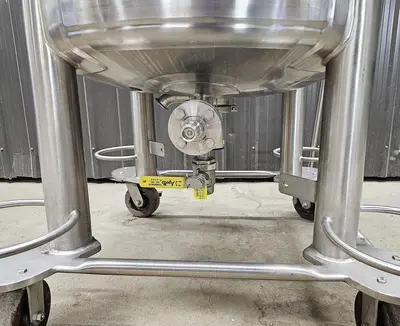

-center discharge: 3’’ tri-clamp with valve
-6'' sight glass
-with probe
-with pressure gauge
-with one top cip spray ball
-with lifting lugs

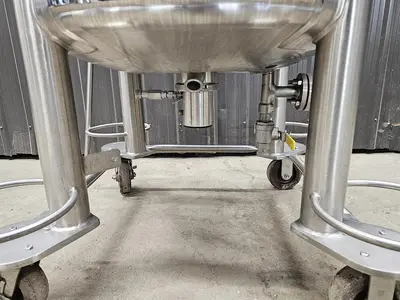

-tank is on four stainless steel legs with casters
-overall height: 70
-previous use: cosmetic application
-shipping information: 48'' wide x 48'' long x 70'' high @1000 LBS
