Capacity: 0.11” x ‘
Maximum Bending Length: 88″
Maximum Bending Height: 7.88″
Maximum Sheet Length: 112.20″
Maximum Sheet Width: 59.05″
Maximum Panel Diagonal: 118.11″
Bending Force: 32 Ton
Sheet Clamping Force: 52 Ton
Max Capacity Thickness: 11 Gauge
Machine Weight: 45,200 lbs
Equipped With:
ATC Automatic Tool Change TCS version
CLL for ATC Reversed Bending Sequence
Lower tool mounted on the frame
Serve electric upper tool with vertical movement
HTC Hydraulic upper tool clamping
Programmable crowning system of the upper tool
Programmable positioning pins Y axis
Servo motor cooling unit
High speed servo motors
Brush table tops

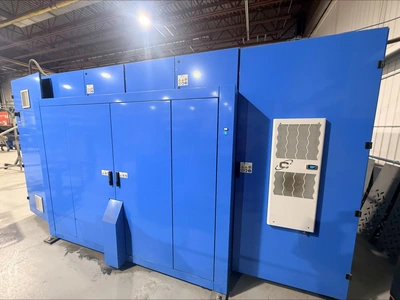

Contrai cabinet cooler
ASP SI modular tooling kit
Barcode reader
Additional lnfo Screen
Hydraulic Manipulator for automatic part positioning and rotation through bending sequence
