USED SMC CDAIFN80-675-A54L
Overview
Description

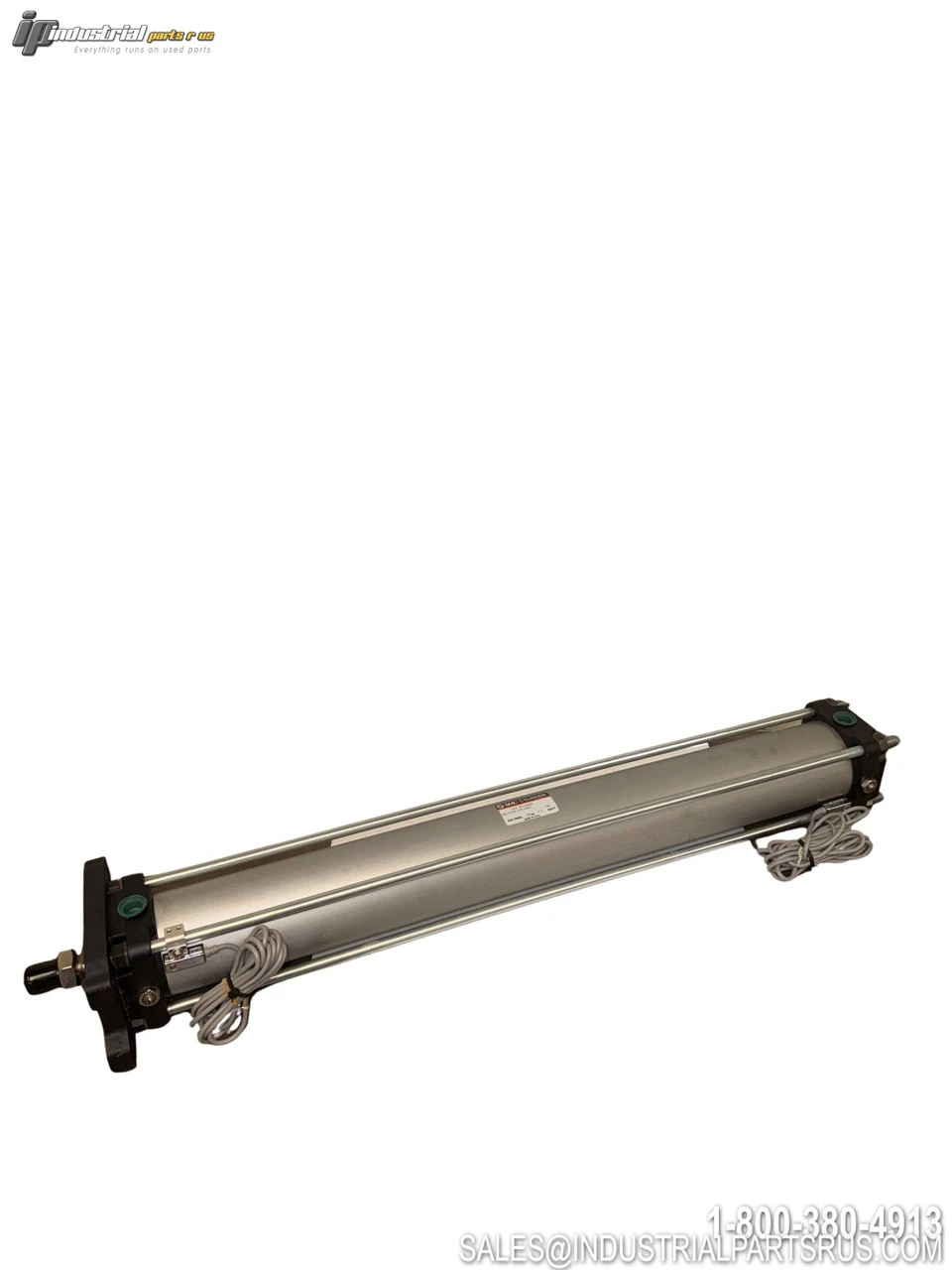

This SMC CDAIFN80-675-A54L is a pneumatic cylinder from the CDA2 series featuring an 80mm bore diameter and 675mm stroke length, equipped with a D-A54L reed auto switch. The unit combines precise linear motion control with position sensing capabilities for industrial automation applications.
Specification
Value
Brand
SMC
Model/Part Number
CDAIFN80-675-A54L
Product Type
Pneumatic Cylinder
Series
CDA2FN
Bore Diameter
80mm
Stroke Length
675mm
Auto Switch Type
D-A54L Reed Switch
Lead Wire Length
3m
Switch Electrical Rating
5-50mA at 24VDC, 5-25mA at 100VAC, 5-12.5mA at 200VAC
Switch Type
Reed, General Purpose
Mounting Type
Tie-Rod
Cylinder Action
Double Acting
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 20.00 LBS | 20.00 LBS |
|---|
SKU: AI1068
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 20.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 40.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDAIFN80-675-A54L
Shelf: B-4
Bore Diameter: 80 mm
Model: CDAIFN80-675-A54L
MPN: CDAIFN80-675-A54L
Type: Pneumatic Cylinder
