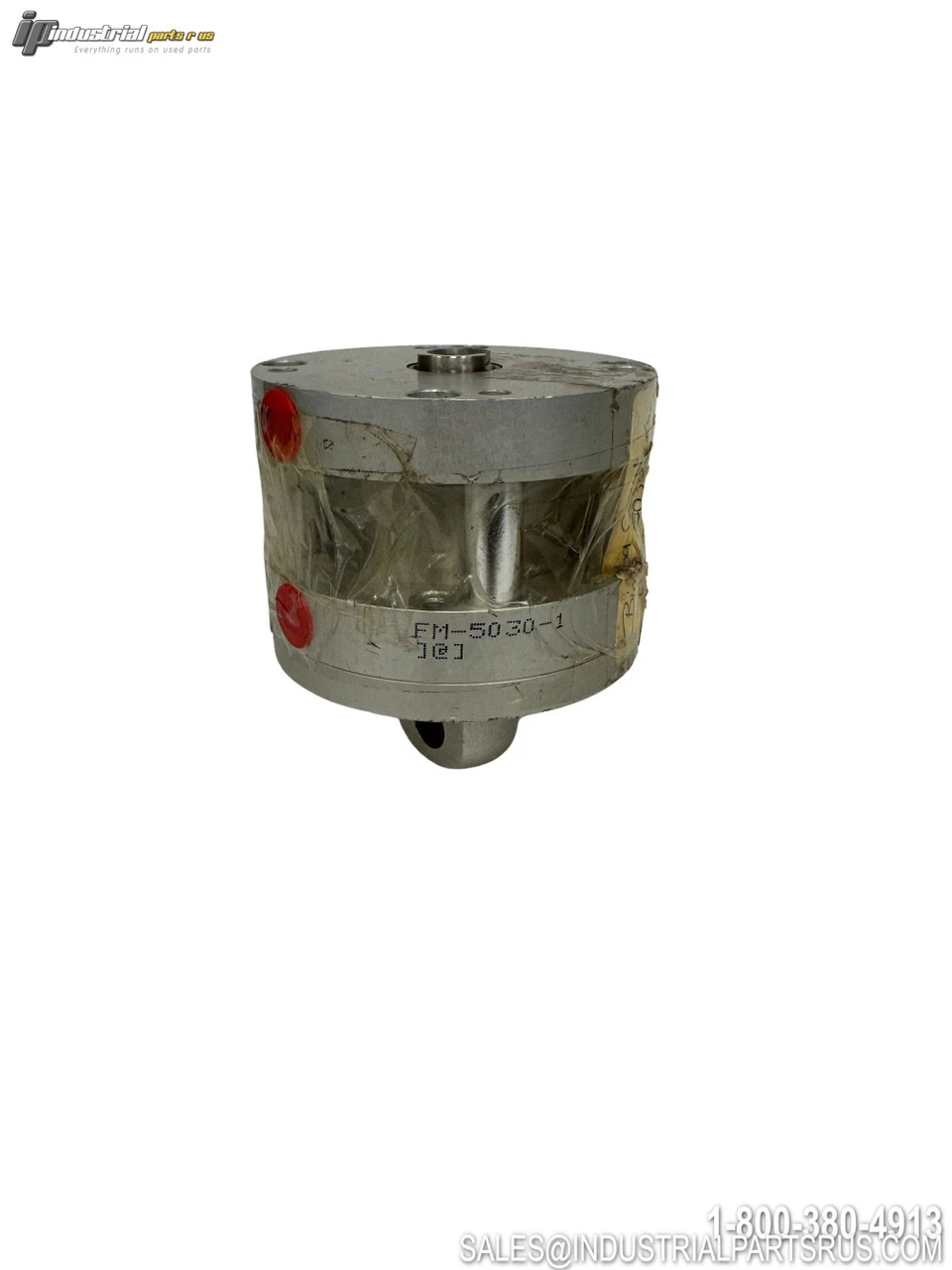

NEW BIMBA FM-50 30-1
Overview
Description
The Bimba FM-50 30-1 is a Metric Flat-1 series pneumatic cylinder designed for compact industrial automation applications. This double-acting single-end rod cylinder features a 63mm bore diameter with a 30mm stroke length, providing reliable pneumatic actuation in tight spaces. The Flat-1 design offers a low-profile form factor ideal for applications where space constraints are critical.
Specification
Value
Brand
Bimba
Model/Part Number
FM-50 30-1
Product Type
Pneumatic Cylinder
Series
Metric Flat-1
Bore Diameter
63mm
Stroke Length
30mm
Cylinder Action
Double-acting
Rod Type
Single-end rod
Rod Material
Stainless steel 303
Body Material
Stainless steel 304
Seal Material
Buna-N
End Caps
Anodized aluminum
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI0992
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Bimba
Part Number: FM-50 30-1
Shelf: B -19 TUB -2
Bore Diameter: 63 mm
Model: FM-50 30-1
MPN: FM-50 30-1
Type: Pneumatic Cylinder
