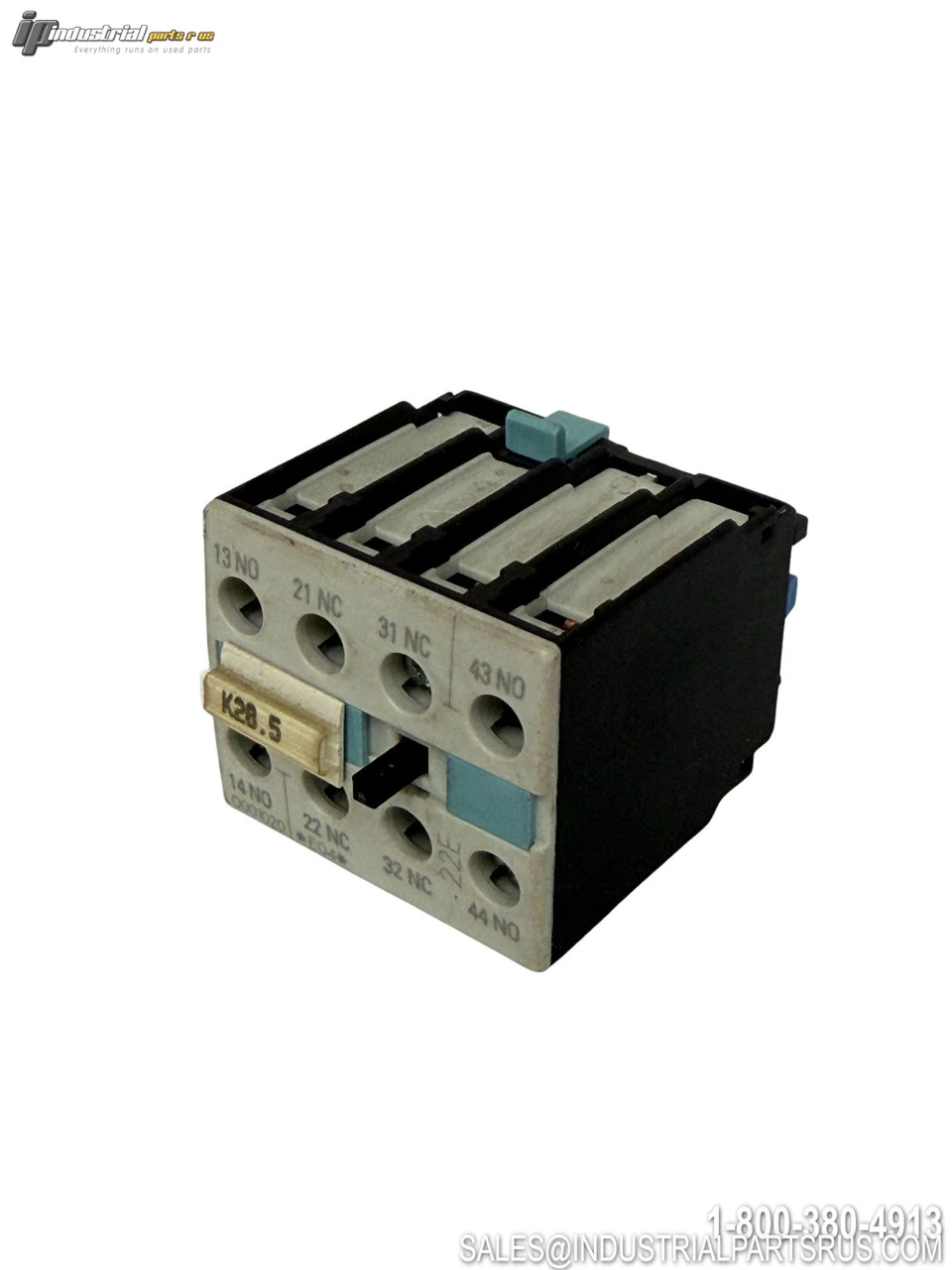

USED SIEMENS 3RH1921-1HA22

The Siemens 3RH1921-1HA22 is a 4-pole auxiliary contact block designed for use with Siemens 3RT1 motor contactors in sizes S0 through S3. This auxiliary switch block features 2 normally open (NO) and 2 normally closed (NC) contacts for additional signaling and control functions in electrical circuits.
Specification
Value
Brand
Siemens
Model/Part Number
3RH1921-1HA22
Product Type
Auxiliary Contact Block
Contact Configuration
2NO + 2NC
Number of Poles
4
Current Rating
6A
Maximum Voltage
690VAC
Mounting Type
Snap-on Front Mount
Terminal Type
Screw Terminals
Compatible Contactor Sizes
S0 to S3
Operating Temperature
-55°C to +80°C
IP Rating
IP20
Width
44mm
Height
38mm
Depth
51mm
Weight
0.15 lbs
Standards Compliance
IEC 60947-5-1, EN 50012
We warranty all items for 30 days from date of purchase.

SKU: AI0900
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Mounting Style: Snap-on Front Mount
Current Rating: 6 A
Application: Motor Contactors
Manufacturer: Siemens
Part Number: 3RH1921-1HA22
Shelf: K-57 TUB 5
Model: 3RH1921-1HA22
MPN: 3RH1921-1HA22
Type: Control Relay
