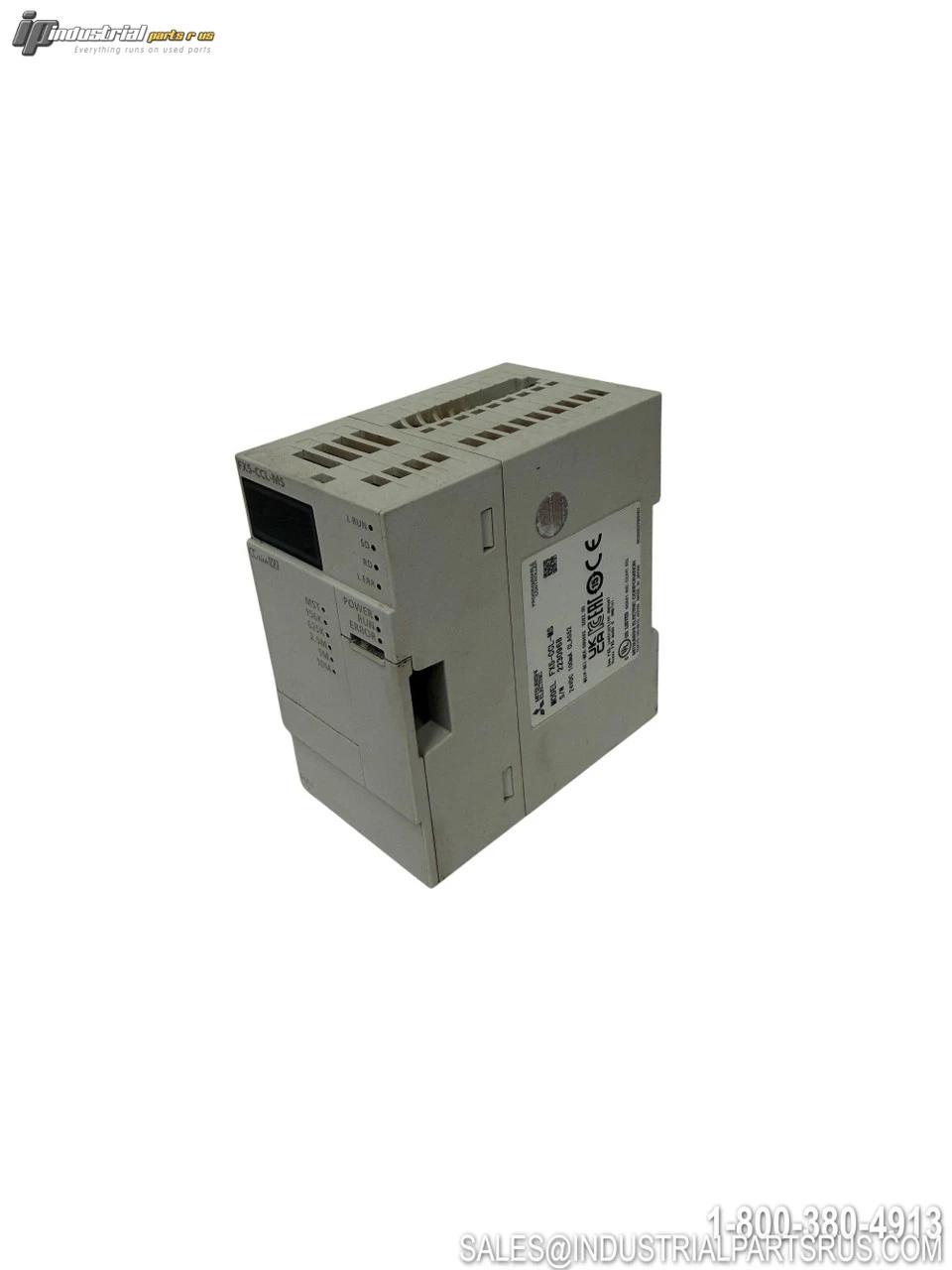

USED MITSUBISHI ELECTRIC FX5-CCL-MS

The Mitsubishi Electric FX5-CCL-MS is a CC-Link Master/Slave communication module designed for the MELSEC iQ-F FX5 series programmable logic controllers. This intelligent function module operates as either a master station or intelligent device station in CC-Link networks, enabling high-speed, deterministic communication with CC-Link slave devices. The module provides seamless integration into distributed control systems and supports data transfer rates up to 10 Mbps.
Specification
Value
Brand
Mitsubishi Electric
Model/Part Number
FX5-CCL-MS
Type
Communication Module
Series
MELSEC iQ-F
Compatible PLCs
FX5U/FX5UC Series
Interface Type
CC-Link Master/Slave
Power Supply
24VDC
Current Rating
100mA
Communication Speed
Up to 10 Mbps
Transmission Distance
Up to 1200m
Mounting Type
DIN Rail (35mm)
Weight
0.15 kg (0.33 lbs)
Communication Standard
CC-Link Ver.1.10
Status Indicators
LED Display
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
