Reactor, 3,000 Gallon, Alloy 20, Jacketed, Agitated, 85 PSI/Full Vacuum, #5991744

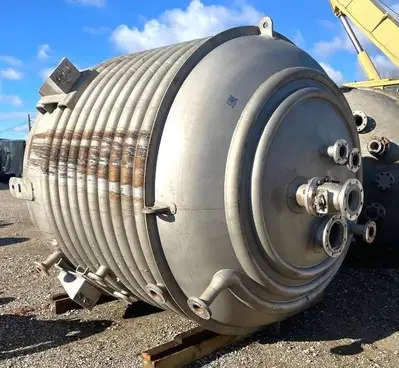

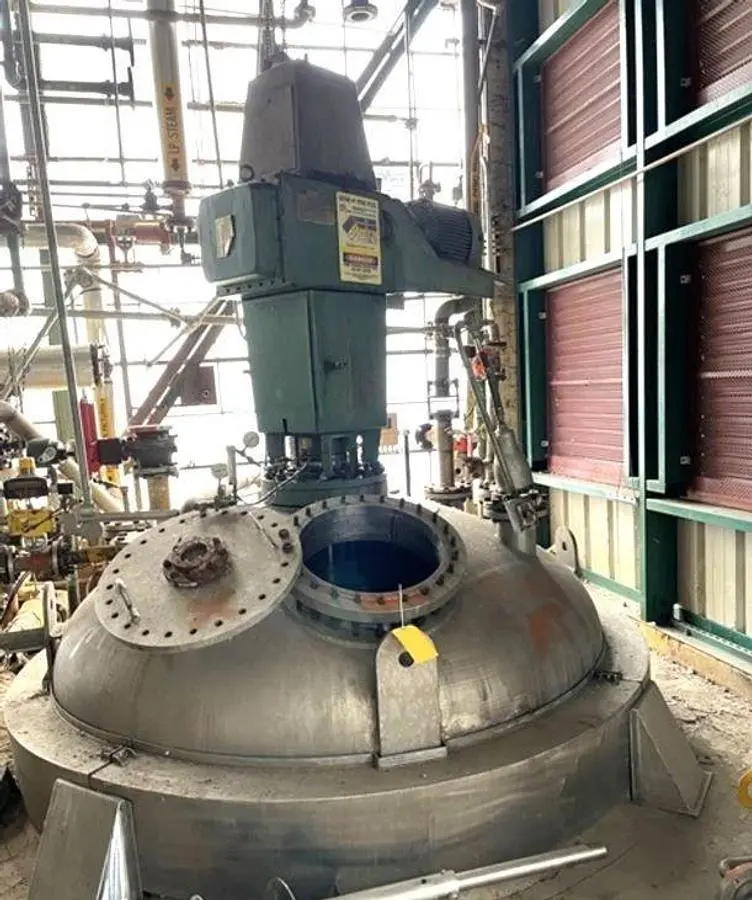

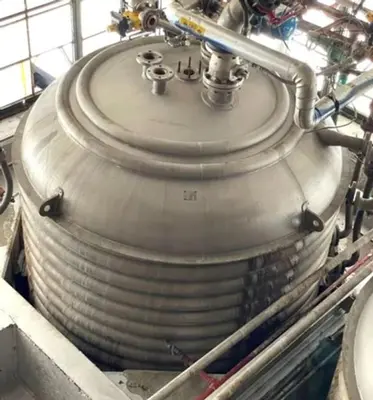

Approximately 3,000-gallon reactor vessel previously used as a hydrolysis reactor. Vessel is constructed with an Alloy 20 shell per SB-463 and measures approximately 98" diameter x 6' 5" tangent-to-tangent. Shell is rated 85 PSI and full vacuum at 350°F. Unit features a stainless steel half-pipe jacket rated 150 PSI and full vacuum from -20°F to 350°F for heating and cooling service. Shell thickness is approximately 0.375" with 0.4375" head thickness. Reactor is equipped with a top-mounted Lightnin mixer, model 85-S-25, driven by a 25 HP motor with approximately 84 RPM output speed. Suitable for corrosive process applications requiring agitation and jacketed temperature control.

Stock Number: 5991744
Gallons: 3,000 Gallons
HP: 25
Internal Pressure: 85 PSI / Full Vacuum
Jacket Pressure: 150 PSI
Materials of Construction: Alloy 20 shell, stainless steel jacket
Dimensions: 98" dia x 6'5" T/T
Basis: As-is, Where-is
