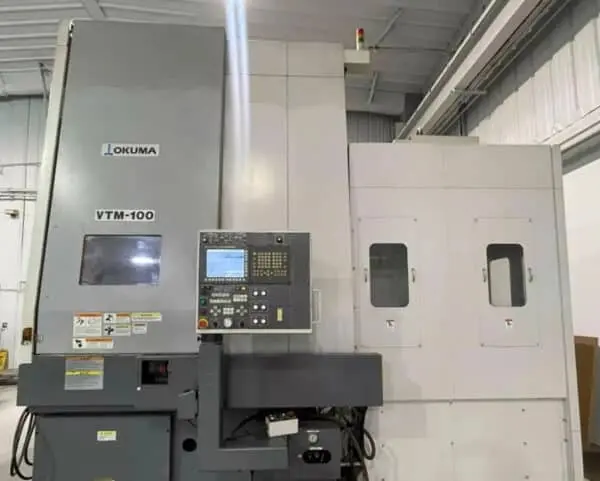

Okuma VTM-100 VBM – 2011

OKUMA VTM100 CNC VERTICAL TURNING CENTER with C-Axis and Milling

Capacity:

Max Machining Diameter: 39.37″

Max Machining Height: 33.07″

Max Swing Diameter: 39.37″

Max Workpiece Load: 2,640 lbs
Travel:

X Axis Travel: 25.59″

Z Axis Travel: 30.07″

C Axis: 360° (0.001°)

Rapid Traverse X Axis: 630 IPM

Rapid Traverse Z Axis: 630 IPM
Spindle:

Spindle Nose: A2-11

Spindle Bore: 4.33″

Spindle Speed: 10 – 1,250 RPM

Spindle Motor: 40 HP
Turret (Tool Spindle):

Turret Type: ATC Single Tool

Tool Size: 1.0″, 1.25″

Boring Bar Diameter: ø1.5″, ø2.0″
Milling Tool Spindle:

Max Spindle Speed: 10 – 4,500 RPM

Speed Ranges: 2 Auto Ranges

Taper: 50
Auotmatic Tool Changer:

Capacity: 60 Tools

Max Tool Diameter: 6.70″ – 9.84″

Max Tool Length: 19.69″

Max Tool Weight: 66 lbs
General:

Power Source: AC 220/480 V, Three Phase, 60 Hz

Overall Diemensions: 169″ x 126″ x 169″ High

Weight : 29,700 lbs Approx.

Fanuc 31i-MA Series CNC Control

PCMCIA Card Slot

RS232 Port

Coolant System

39.37″ 4-Jaw Chuck

C Axis Live Tool

50 Taper Milling Spindle

60 Station Automatic Tool Changer

A2-11 Spindle Nose

4.33″ Spindle Bore

Probing System (Tool Probe Included)

Through Spindle Coolant

Chip Conveyor

Foot Swiches
