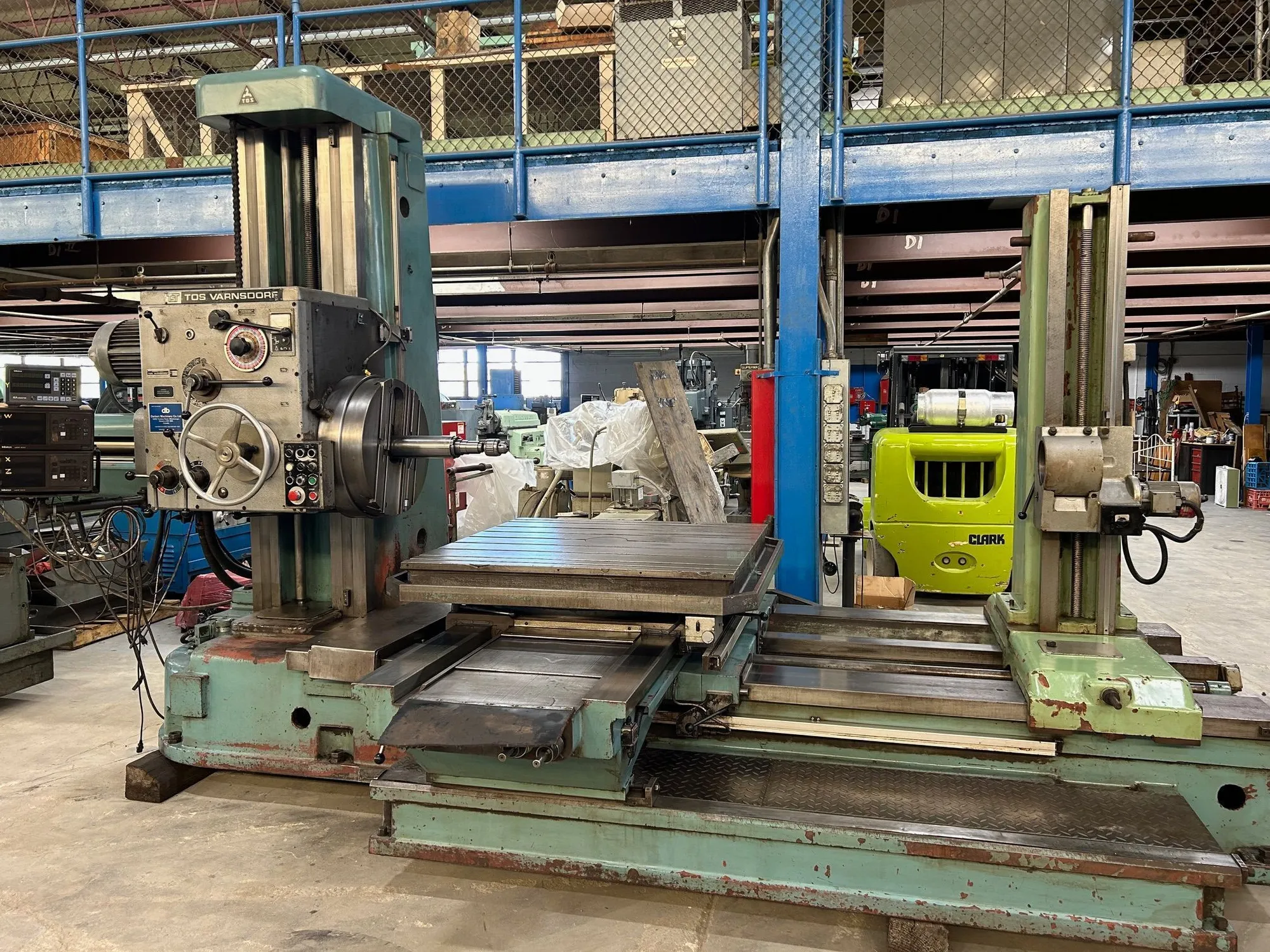

TOS W100A 4" Table Type Horizontal Boring Mill with 15 HP Motor, 44" Vertical Headstock Travel, 63" Table Cross Travel, 49" Saddle Travel, and a 49" x 49" Power Rotary Table.
| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 63" | 1,600.2 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 49.2" | 1,249.7 mm |
| Table-L | 49.2" | 1,249.7 mm |
| Spindle Tvl. | 35.43" | 899.92 mm |
44" Vertical Travel of Headstock
63" Table Cross Travel
49" Saddle Travel
49" x 49” Built In Power Rotary Table
4" Spindle Diameter
#50 Spindle Taper
Spindle Speeds from 9-1120 RPM
23” Diameter Built In Facing Head
15 HP Main Motor
Built In Outrigger Rails
Hardways
#50 Taper Spindle with Power Tool Clamp
Threading Capable
Tailstock
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
