| Tonnage | 100 T | 90.719 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 100" | 2.5 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |

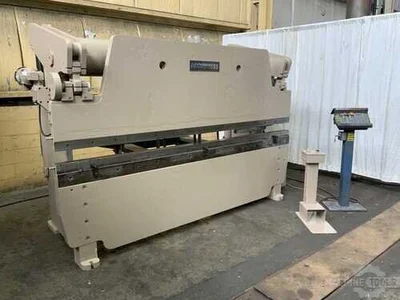

100 Ton X 10’ CNC Hydraulic Press Brake with ETS 200 Pedestal Mounted Controller for Dual Palm Button or Foot Pedal Operation, Full Length Die Rail and Flush Floor Mount Design.GENERAL SPECIFICATIONS Capacity: 100 Tons X 10’Distance Between Housings: 8’ 6”Ram Stroke: 16”Closed Height: 8”Throat Depth: 10”Fast Approach Speed: 115 IPMSlow Bend Speed: 24 IPMFast Return Speed: 230 IPMMotor: 10Electrical: 230V / 3 PhApprox Shipping Weight: 15,000 LbsApprox Shipping Dimensions: 136” X 52” X 84”INCLUDES: ETS 200 Pedestal Mounted Controller for Dual Palm Button or Foot Pedal Operation, Full Length Die Rail and Flush Floor Mount Design.
