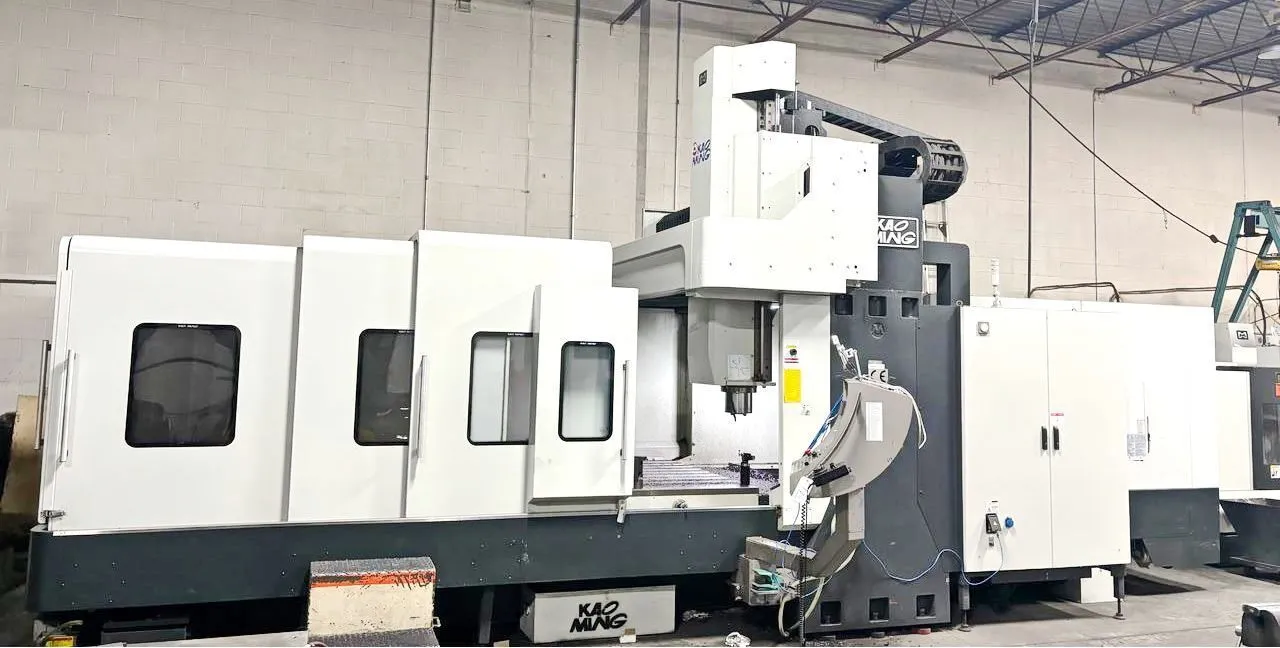

2015 Kao Ming KMC-318 HIS Gantry-Type CNC Machining Center, TSC, Renishaw OTS Tool Presetter, Spindle Oil Chiller, Automatic Lubrication System, Spindle Blast, Chip Augers
| X-Axis | 127.16" | 3,229.9 mm |
| Y-Axis | 66.92" | 1,699.8 mm |
| Z-Axis | 41.33" | 1,049.8 mm |
| Power | 47 hp | 35 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 64.96" | 1,650 mm |
| Table-L | 118.11" | 3,000 mm |
| Distance Between Columns | 70.86" | 1,799.8 mm |
| Distance Table Top To Spindle Nose | 49.2" | 1,249.7 mm |
| Max Table Load | 22,046 lb | 9,999.9 kg |
| Rapid Traverse (X/Y/Z) | 787.40 / 944.88 / 590.55 in/min. | 787.40 / 944.88 / 590.55 in/min. |
| Made In | Taiwan | Taiwan |
| Control | CNC (Fanuc 0i-MF) | CNC (Fanuc 0i-MF) |
| Dimensions | 320" X 191" X 174" (Floor Space) | 320" X 191" X 174" (Floor Space) |
| Weight | 50,600 lb | 50,600 lb |
Through spindle coolant
Renishaw OTS tool presetter
Spindle oil chiller
Spindle blast
Inner cooled ballscrew (x-axis)
Automatic lubrication system
Electrical cabinet cooling system
Chip augers
