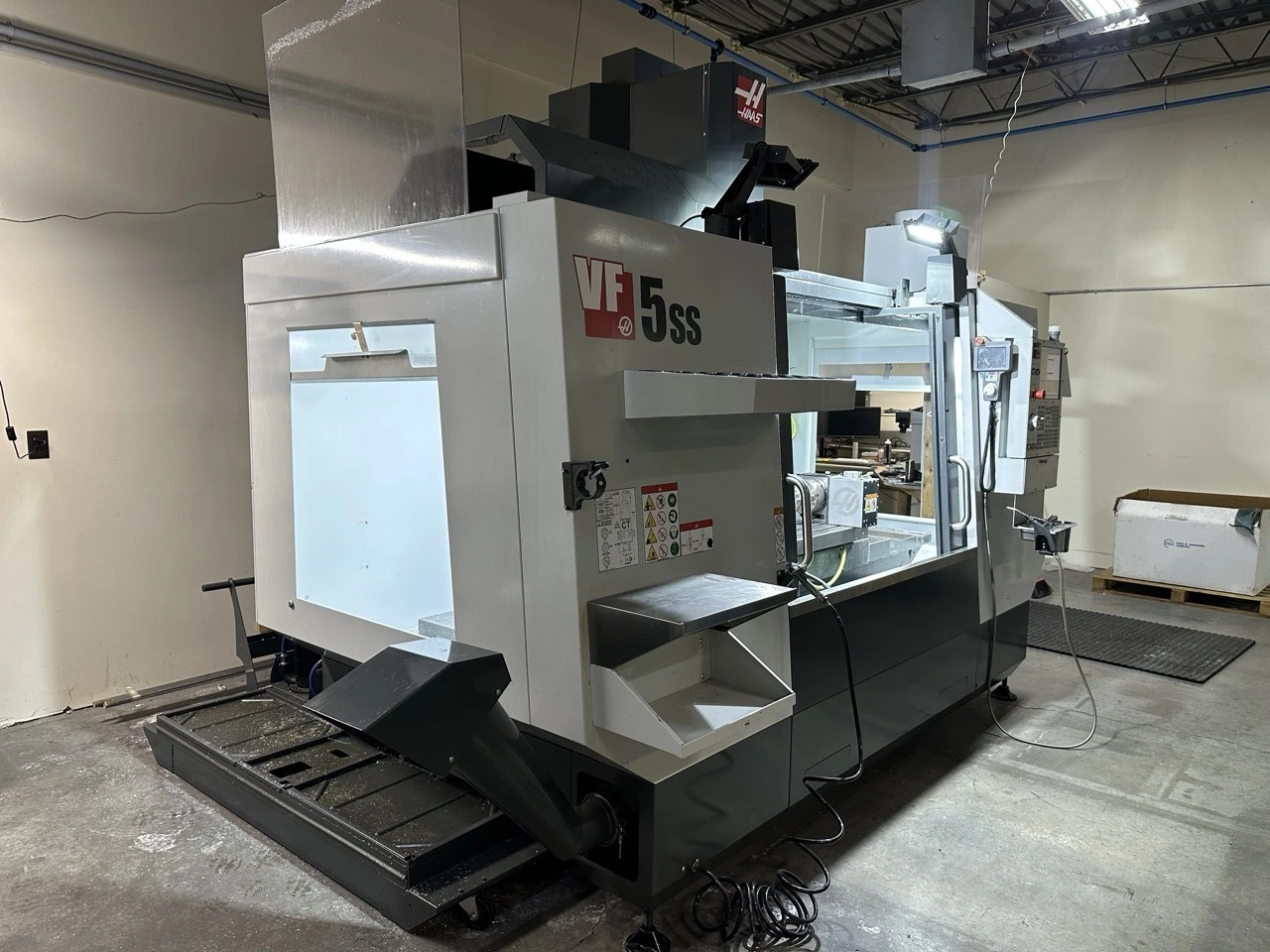

2021 HAAS VF-5SS Vertical Machining Center. Features: 50" x 26" x 25" travel, 30 hp spindle, 12,000 RPM, 30 ATC, 52" x 23" table. Includes Haas HRT-160 Rotary Table, WIPS, 4th & 5th axis drive, mist collection, and more.
| X | 50" | 1,270 mm |
| Y | 26" | 660.4 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 23" | 584.2 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 5 | 5 |
| Control | CNC (HAAS) | CNC (HAAS) |
X-axis travel: 50″
Y-axis travel: 26″
X-axis travel: 25″
Rapid rate x-axis: 1,200 ipm
Rapid rate y-axis: 1,200 ipm
Rapid rate z-axis: 1,200 ipm
Max table load: 1,750 lbs
Spindle motor: 30 hp
Spindle speed: 12,000 rpm
Spindle taper: 40
Tool changer: 30 atc
Spindle nose to table: 4.2″ – 29.2″
Max cutting: 833 ipm
Table size: 52″ x 23″
Haas HRT-160 Rotary Table
WIPS
Programmable Coolant
Chip Auger
Mist Collection
4th-Axis Drive and Wiring
5th-Axis Drive and Wiring
Large Remote Jog Handle with Touchscreen Display
Visual Part Programming System
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
Tool holders included (may vary from photos)
