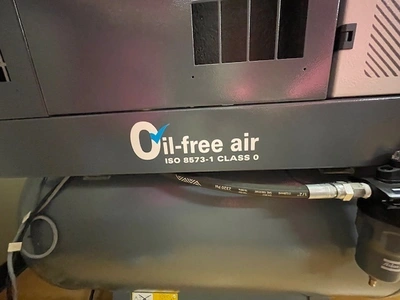

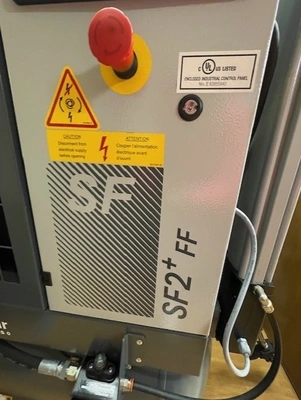

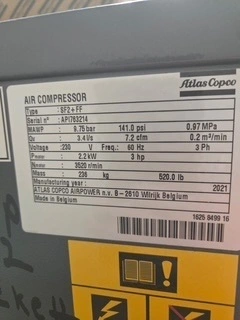

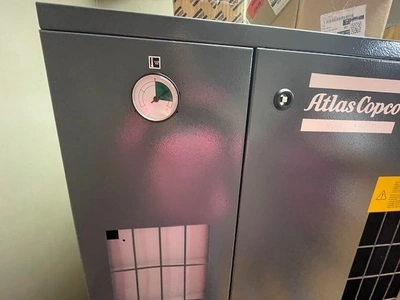

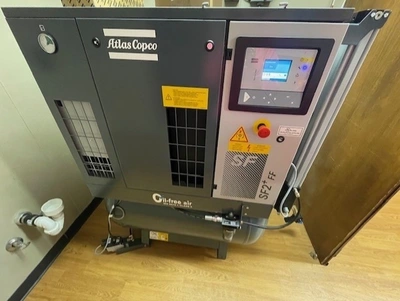

USED 2021 ATLAS COPCO SF2FF

3HP 230v AIR COMPRESSOR; NEVER USED. 0 HOURS.
Sold as is.
LES03+145T-RD-071-DD-GR 3 Hp Encl 141 PSI Trivolt Scroll, 7.6 cfm, Integrated desiccant dryer, Tnkmnt 71G, Graphic Controller
• One Single Stage 3 Hp Air Compressor
- (8153611762 + 0000006370+0000006367+0000006383+0000096377)
• Compressor Capacity: 7.2 cim @ 126.9 psig (per ISO 1217 Annex C. Ed.4)
• Maximum Working Pressure: 141 psig
• 3 Hp Motor - TEFC IE3 NEMA Premium Efficiency - Three Phase (200-230-460/3/60)
• Full Acoustic Enclosure, 56 dB(A)

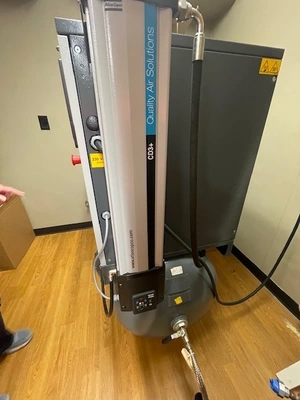

• Compact Integrated Desiccant Dryer, -40 Dew Point
• Mounted on 71 gallon corrosion resistant receiver with electronic drain
• Intelligent Graphic Controller for Controlling and Monitoring the Unit
• See Specification LDS-102-10 for more details
Note: The compressor is shipped 230/3/60; the control system can be re-wired in the field to run on 200 or 460 volt, three phase, 60 Hz. See manual and drawings shipped with machine.
Accessory Kit for LES Mono CD Scroll Units
• (4) Vibration Isolation Pads
• (1) Braided Flex Hose, 1/2"
• (1) High Efficiency, Coalescing Filter/Drain, 1/2"
• (1) Regulator with Gauge, 1/2"
Service Start Up - LES Unit
• Labor: Service Start Up - LES Unit
