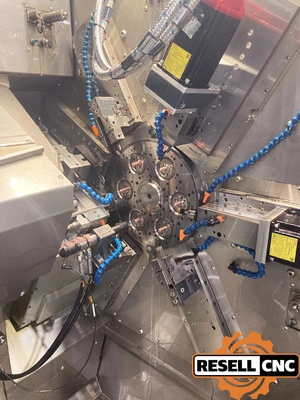

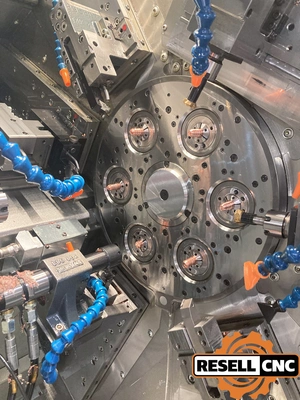

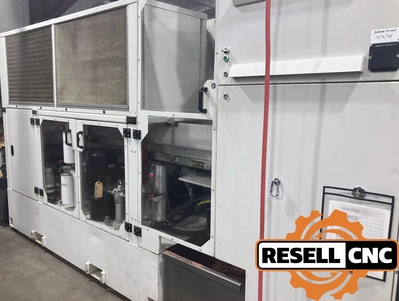

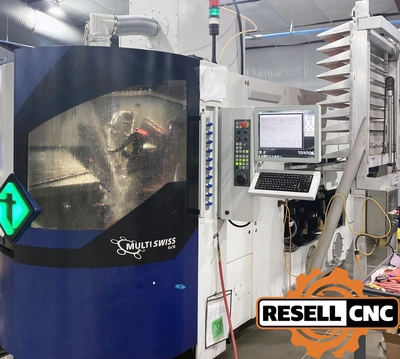

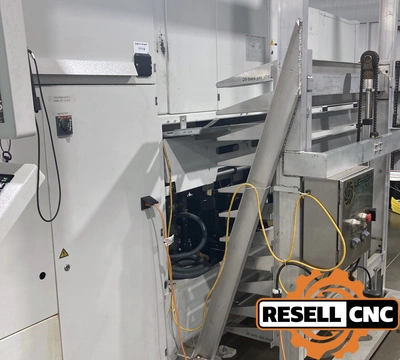

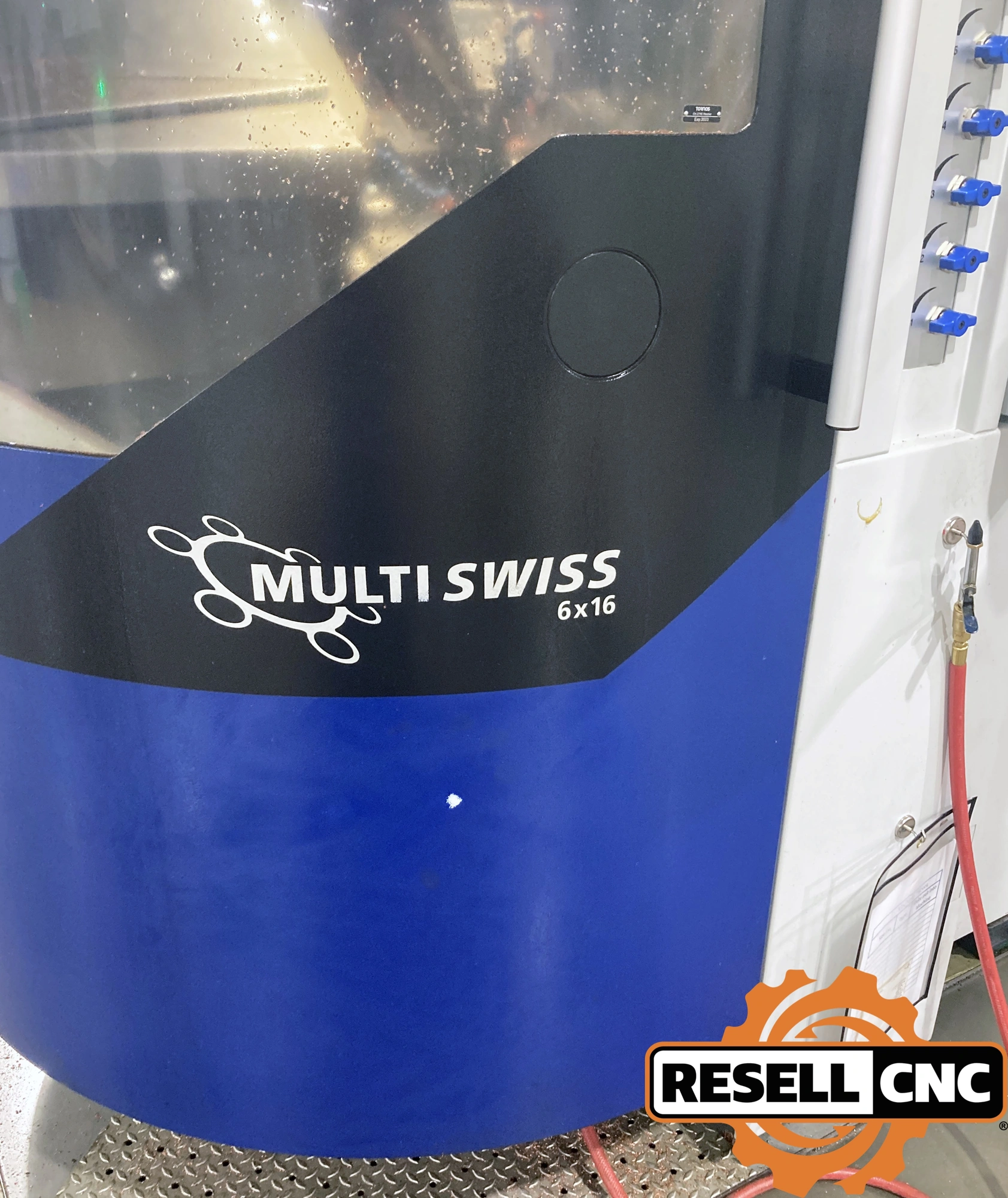

USED 2018 Tornos MultiSwiss 6x16

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Main Spindle Z Travel: 1.97 inch

Pickoff Spindle Z Travel: 5.9 inch

X Travel (Main Operation): 1.57 inch

Y Travel (Main Operation): 1.18 inch

X Travel (Back Operation): 2.95 inch

Z Travel (Back Operation): 5.9 inch

Linear Axes Count: 14

Back Operation Tools: 2 total (1 live tool)

Coolant Tank Capacity: 238 gallons (900 liters)

Coolant Pressure: 62 PSI (4.3 bar)

Cooling System: Oil-cooled spindle

Oil Mist Extractor

Part Separator & Chute

Hydraulic Loading Device

Bar Capacity: 0.63
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor

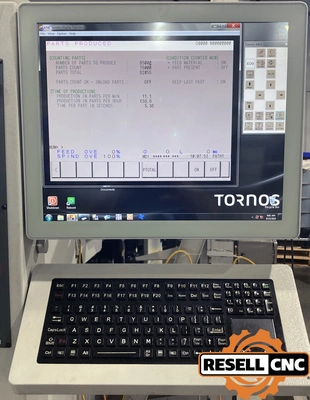

Control Make Model: Fanuc 30i CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Presetter
Max Cutting Turning Diameter: 0.63
Max Swing Over Bed: 0.63
Max Turning Cutting Length: 2.76
Programmable Tailstock: false
Second Spindle Motor: 6.7
Second Spindle Speed: 8000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 7.5
Spindle Speed: 8000.0
Sub Spindle: false
Tailstock: false
Tool Positions: 18.0
Total Spindles: 6
Twin Turret: false
X Travel: 2.95
Y Axis: true
Z Travel: 5.9
