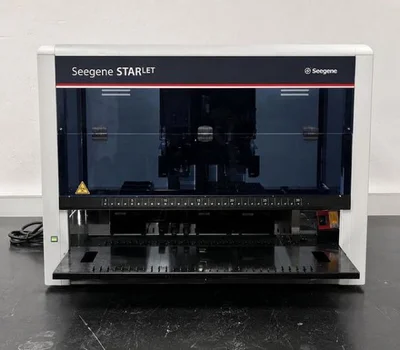

USED SEEGENE INC. STARLET (IVD LIQUID HANDLING SYSTEM)

The Seegene STARlet Liquid Handler is a fully automated liquid handling workstation designed for nucleic acid (DNA/RNA) extraction and PCR setup in molecular diagnostics laboratories. It provides a streamlined workflow from primary sample tubes to purified nucleic acids and PCR-ready samples, significantly reducing manual labor and contamination risk.

The system supports high-throughput processing of clinical specimens such as blood, urine, sputum, and swabs, and can operate as a standalone extraction system, PCR setup system, or combined workflow platform.

---------------------------------------------------------------
Key Highlights

- Automated workflow from sample loading → extraction → PCR setup
- Handles 1–96 samples per run for medium-to-high throughput labs
- Supports multiple specimen types (blood, urine, sputum, swabs, etc.)
- Modular operation: extraction-only, PCR setup-only, or combined workflow
- 8-channel pipetting system for precise liquid handling
- High dispensing accuracy (±0.75% typical at common volumes)
- Direct loading of primary sample tubes (various tube sizes supported)
- Reduced contamination risk with minimal manual intervention
- LIS connectivity and barcode tracking for sample traceability
- Batch operation mode with automated processing cycles
---------------------------------------------------------------

Applications / Uses

- DNA/RNA extraction for molecular diagnostics
- PCR and qPCR sample preparation
- Infectious disease testing workflows
- Clinical diagnostic laboratories
- Pathogen detection (viral, bacterial, fungal, parasitic)
- Genomics and molecular biology research
- High-throughput diagnostic screening labs
- Hospital and reference laboratory automation
---------------------------------------------------------------

Typical Specifications (Summary)

- Sample Capacity: 1–96 samples
- Processing Time: ~155 minutes (full workflow)
- Pipetting Channels: 8
- Power: 115–230 V, 50–60 Hz
- Dimensions: ~1124 × 795 × 903 mm
- Weight: ~140 kg
- Accuracy: Up to ±0.75% (depending on volume)Show moreShow lessClick to Request More Info

Type: Pipetting Systems
