SERIAL .................... 6673
MODEL ..................... 16W
SIZE ...................... 18X54
SWING ..................... 18.5"
SWING OVER CROSS .......... 12"
SPINDLE HOLE BORE ......... 2"
CENTER DISTANCE ........... 54"
SPINDLE SPEEDS ............ (16) 14 TO 600 RPM
LONGITUDINAL FEED RATES ... .0038 - .240 IPR
INCH THREADS .............. (40) 1-1/2 TO 92 TPI
CHUCK ..................... 10" 4 JAW
CROSS SLIDE TRAVEL ........ 11"
CARRIAGE TRAVEL ........... 40"
TAILSTOCK SPINDLE TRAVEL .. 8"
WIDTH OF BED .............. 17"

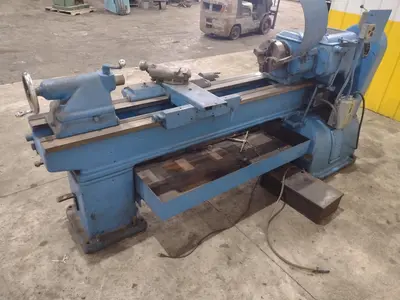

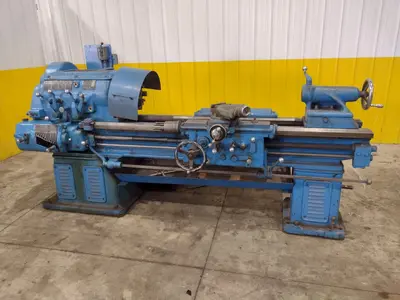

Brand
MONARCH
Type
Lathes, Engine
Stock No.
22568
