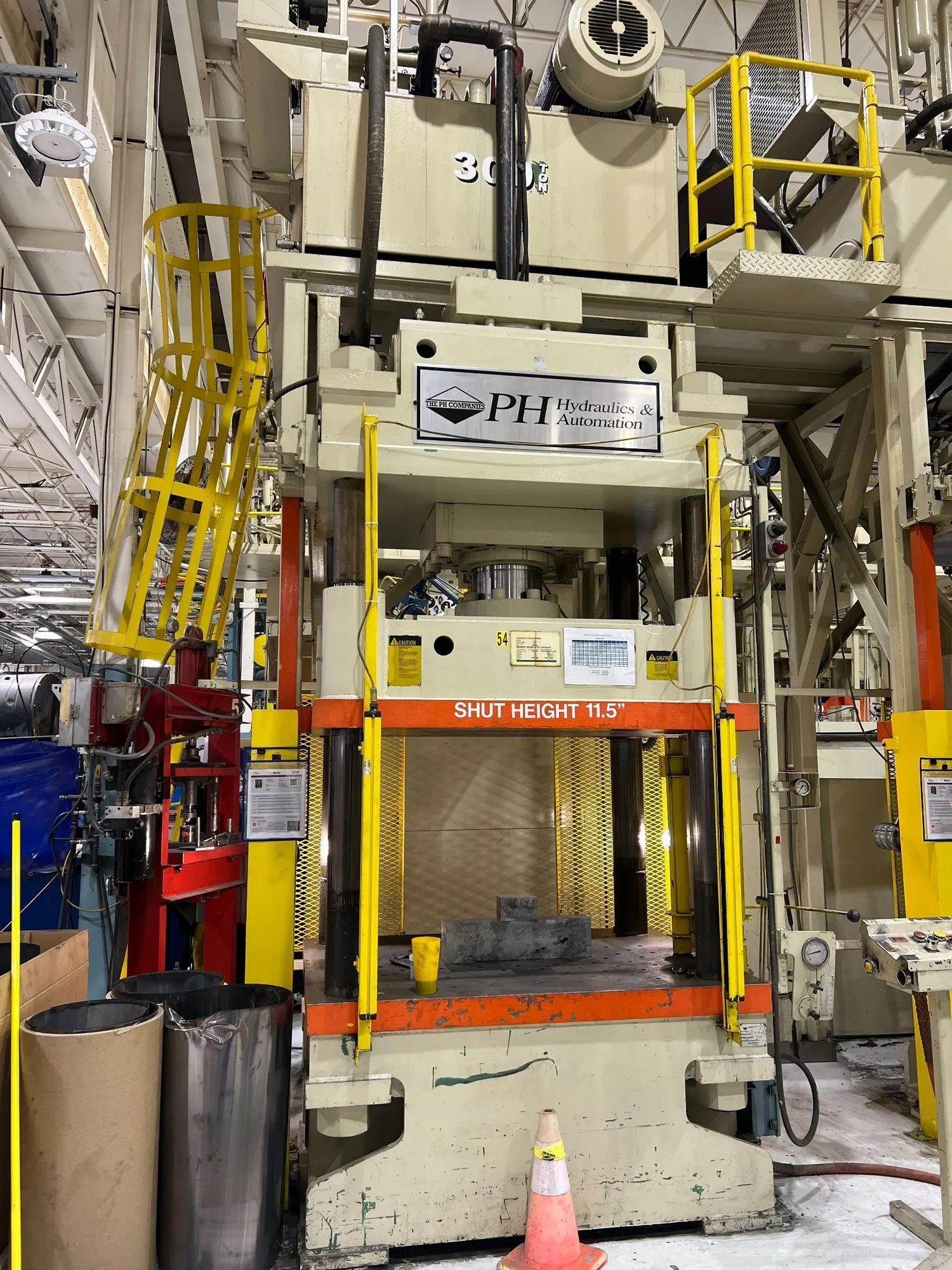

PH Hydraulics 4C 300-P 300 Ton 4-Post Downacting Hydraulic Presses, used, from 1994. Specifications include a 65" x 48" bed, 24" stroke, 36" daylight opening, 100 HP motor, and 400-gallon reservoir. Floor standing with dual palm button stand for safety.
| Ton | 300 T | |
| Bed L-R | 65 in | |
| Bed F-B | 48 in | |
| Stroke | 26 in | |
| Daylight Opening | 36 in | |
| Speed | 280 ipm | |
| Dimensions | 72" lr x 48" fb x 146" plus approx 48" for hyd unit - tall | 72" lr x 48" fb x 146" plus approx 48" for hyd unit - tall |
Capacity: 300 Ton
Stroke Length: 24"
Daylight Opening: 36"
Bed Area: 65" lr x 48" fb
Distance Between Posts: 48" lr x 31" fb
Speeds:
Advance: 280 IPM
Press: 60 IPM
Return: 360 IPM
400 Gallon Reservoir
Max Pressure Rating: 2984 PSI
Motor: 100 HP
Main Cylinder: 16" bore / 12" rod / 24" stroke
Floor Standing
Top Mounted Hydraulics - Could be moved to floor for lower press height.
Dual Palm Button Stand
Light Curtains Front
Platen Safety Latch
Swing In Die Block
