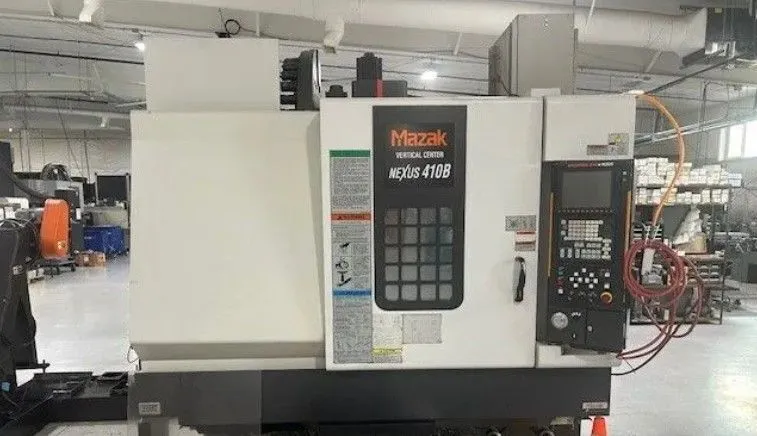

Mazak Nexus VCN 410B Vertical Machining Center, New in 2004
| X-Axis | 30" | 762 mm |
| Y-Axis | 16.14" | 409.96 mm |
| Z-Axis | 20.08" | 510.03 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CT 40 | CT 40 |
| Table-W | 16.14" | 409.96 mm |
| Table-L | 43.31" | 1,100.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol) | CNC (Mazatrol) |
| Dimensions | 102.3″ x 101.32 | 102.3″ x 101.32 |
| Weight | 11,700 lbs | 11,700 lbs |
General Specifications:
Table Size: 16.14" x 43.31"
Max Weight on Table: 1102 lbs
X-Axis Travel: 30.00″
Y-Axis Travel: 16.14″
Z-Axis Travel: 20.08″
Rapid Traverse Rates Axis: 1417 IPM
Cutting Feed Rates: 987 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Tool Changer Capacity: 30 Station Side Mounted
Tool Weight: 17.6 lbs
Tool Dia: 3.25″ – 4.92″
Tool Length: 13.78″
Tool Changing Time: 1.3 Seconds
Air Required: 100 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Machine Dimensions: 102.3" x 101.32"
Machine Weight: 11,700 lbs
Mazatrol 640M Nexus CNC Control
4th Axis Rotary
Mist Buster Mist Collector
Chip Conveyor
