Or as low as $81.08 USD/month over 60 months

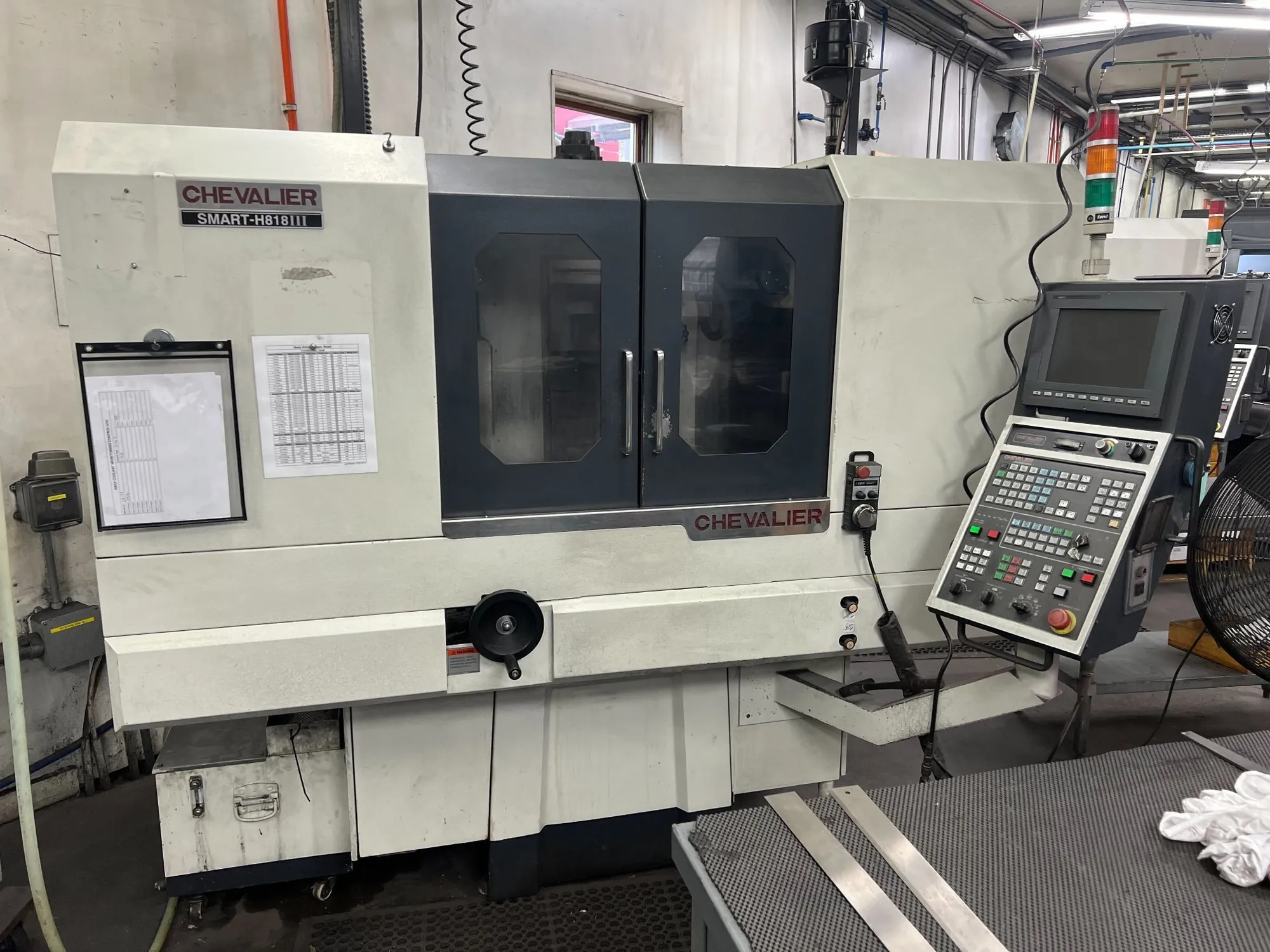

This CNC surface grinder features an 8" x 18" table, 4HP motor, and a grinding wheel with a 0.5" width. Efficient control with SMART-III system and impressive spindle speeds up to 7,000 RPM. Ideal for precision tasks.
| Table-W | 8" | 203.2 mm |
| Table-L | 18" | 457.2 mm |
| Power | 4 hp | 3 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Control | CNC | CNC |
Capacity: 8″ x 18″ grinding capacity
Max Workpiece Weight: 462 lbs (210 kg)
Spindle Motor: 4HP (3 kW)
Spindle Speed: 1,000 - 7,000 RPM
Wheel Diameter: 8" (203.2 mm)
Wheel Width: 0.5" (12.7 mm)
Least Input Increment: 0.0001″ (0.001 mm)
Table Speed: 0.33 - 82 FPM (0.1 - 25m/min)
Max Distance (Table to Spindle): 17.5” (445 mm)
Control: SMART-III (PC-based) conversational
