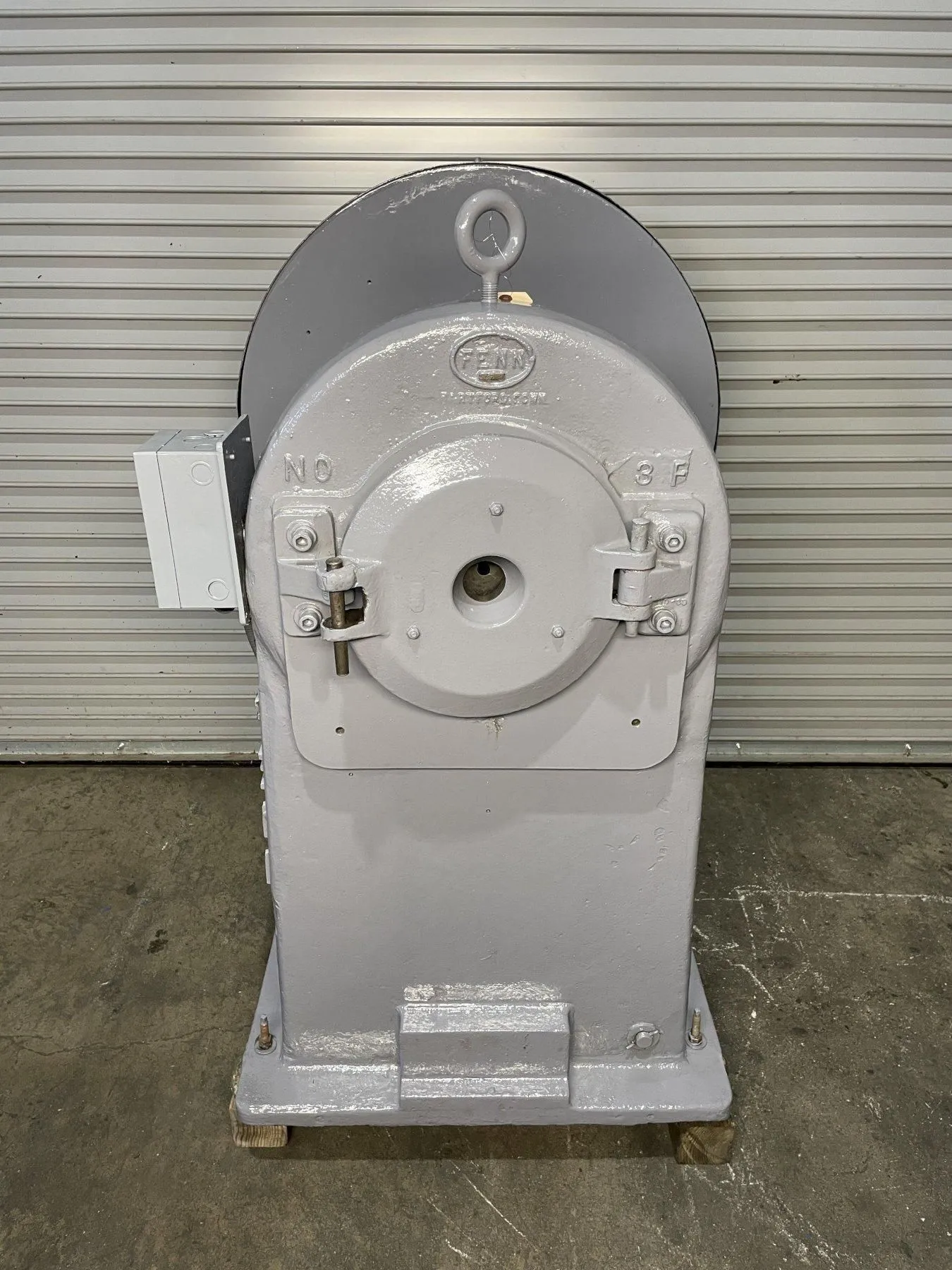

USED FENN 3F 2 DIE ROTARY SWAGER (14636)

1.750" FENN MODEL 3F 2 DIE ROTARY SWAGER
Stock # 14636

MANUFACTURER......................FENN MANUACTURING
MODEL:............................3F 2 DIE
TYPE SWAGER:......................ROTARY
CAPACITY:
SOLIDS:........................5/8"; 0.625" (15.875mm)
TUBES:.........................1 3/4"; 1.750"; (44.45mm)
NUMBER OF DIES:...................2
DIE WIDTH:.......................2 1/4"
DIE HEIGHT:......................1 19/32"
DIE LENGTH:......................2 1/2"
WEIGHT PER SET:..................5.0 lbs
HAMMER SPECS
HAMMER WIDTH:....................2 1/4"
HAMMER HEIGHT:...................1 17/32"
HAMMER LENGTH:...................2 1/2"
HAMMER WEIGHT PER SET:...........4.5 lbs
CAGE ROLLER:......................10
CAGE ROLLER DIAMETER:.............1 5/8"
CAGE ROLLER LENGTH:...............2 15/32"
MOTOR SPECS:......................5 HP, 230/460 VOLTS, 3 PH., 60 HZ G.E.
DIMENSIONS:.......................34 1/2" X 40" X 48" HIGH
WEIGHT (APPROX):..................2300

**Please Note Catalogue Specifications**
**Temporary Specification Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
