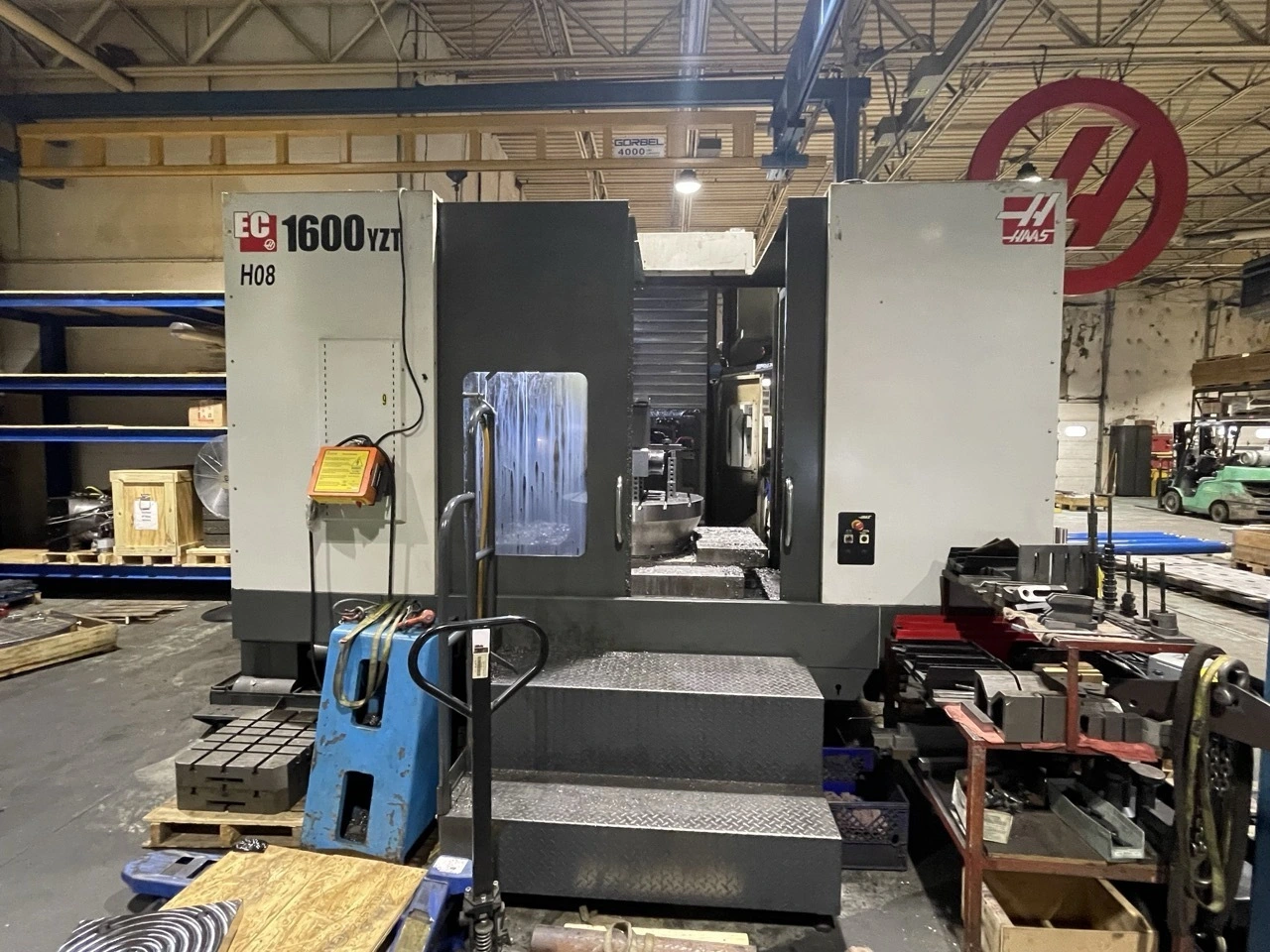

2014 HAAS EC-1600YZT Horizontal Machining Center features a 64"x32" table, CAT 50 spindle at 7,500 RPM, 50+1 ATC. Includes Haas CNC Control, full 4th axis, WIPS, 1,000 PSI TSC, and more. Dimensions: 207"x163"x140", weighing 32,320 lbs.
| X | 64" | 1,625.6 mm |
| Y | 50" | 1,270 mm |
| Z | 40" | 1,016 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CT 50 | CT 50 |
| Pallet-W | 36" | 914.4 mm |
| Pallet-L | 64" | 1,625.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
X-Axis Travel: 64″
Y-Axis Travel: 50″
Z-Axis Travel: 40″
Table Size: 64″ x 32″
Platter Diameter: 30″
Max Weight on Platter: 10,000 lbs
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
ATC: 50+1
Machine Dimensions:
207″x163″x140″
32,320 lbs
Haas CNC Control
Full 4th Axis
WIPS
1,000 PSI TSC
High Speed Machining
Programmable Coolant Nozzle
Chip Conveyor
