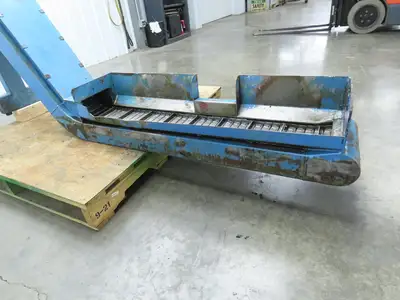

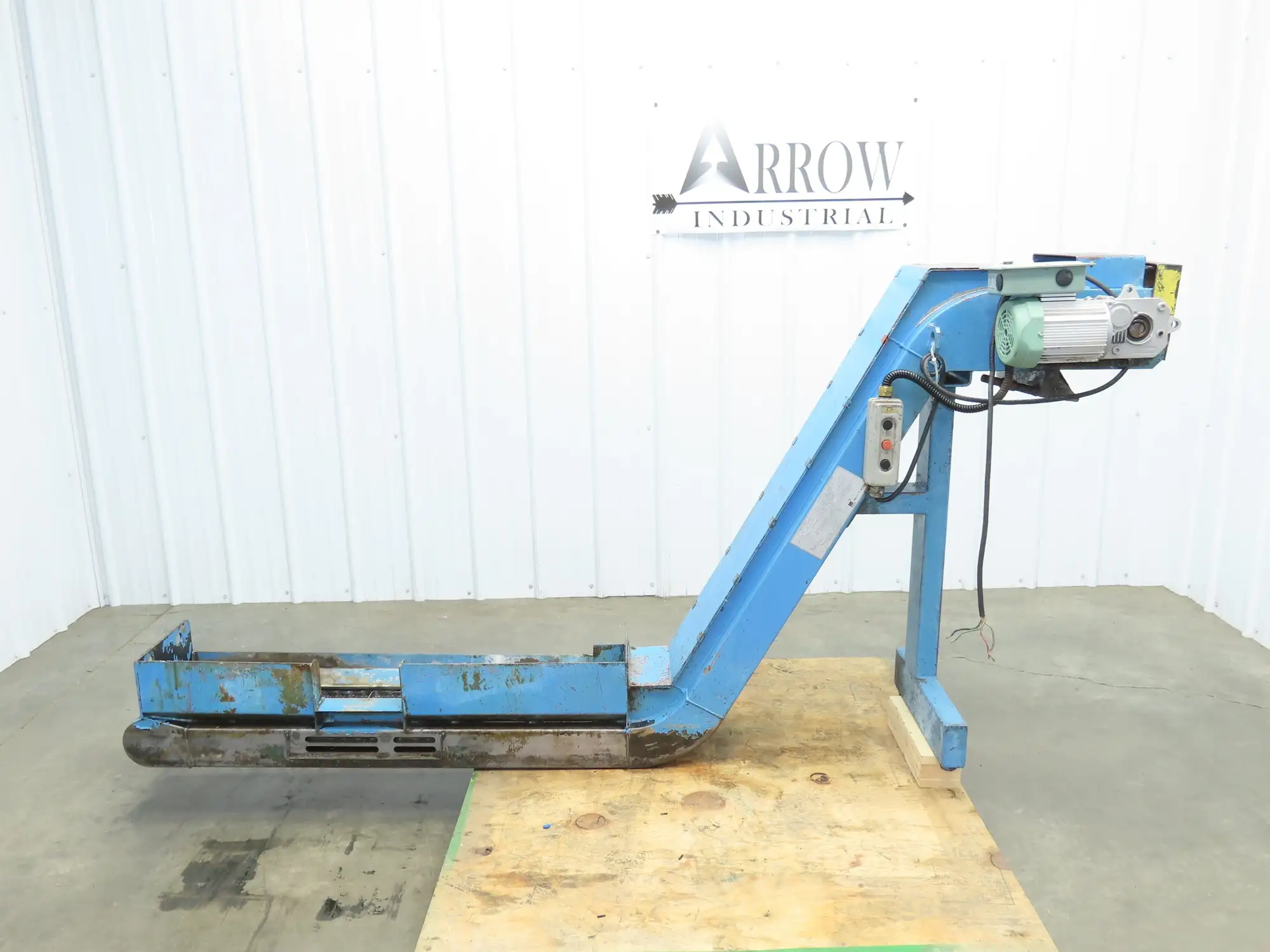

Tsubaki 10"W x 90"L Chip Conveyor 7.5"Belt 45" Infeed 38"H Discharge 220V 3PH

Condition: Used in good working condition, cleaned and tested.

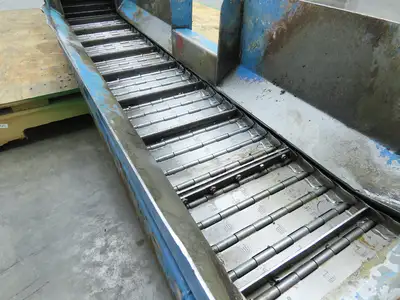

Conveyor Type: Hinge belt chip conveyor.

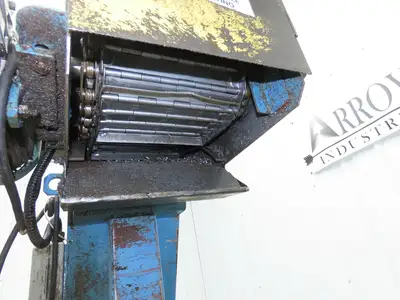

Discharge Height: 38" (To bottom of discharge flap)

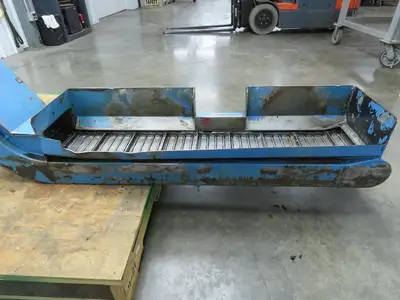

Infeed Length (To start of incline): 45"
Length from Infeed to front of Leg: 73"
Bed Width: 7-1/2"
Frame Width: 10-1/4"
Infeed Height (Clearance): 10-1/2" on right side, 6-3/4" on left side with infeed set at level. The space on the right side above the drain vent is 7-5/8" wide.
Belt Speed: 4 FPM

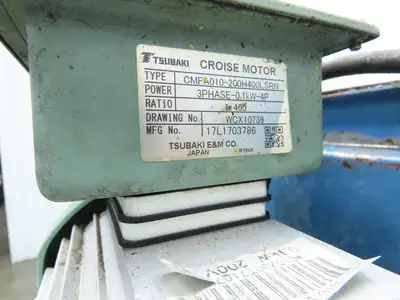

Drive type, motor specs: Direct Drive 0.1kw 220V 3PH Croise Motor CMFA010-200H400LSRN
Voltage tested at and wired for:: 230V
Overall Length: 90"
NOTE: Conveyor leg needs screw levelers or blocks to set up level.
