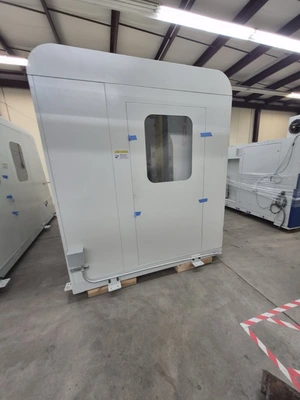

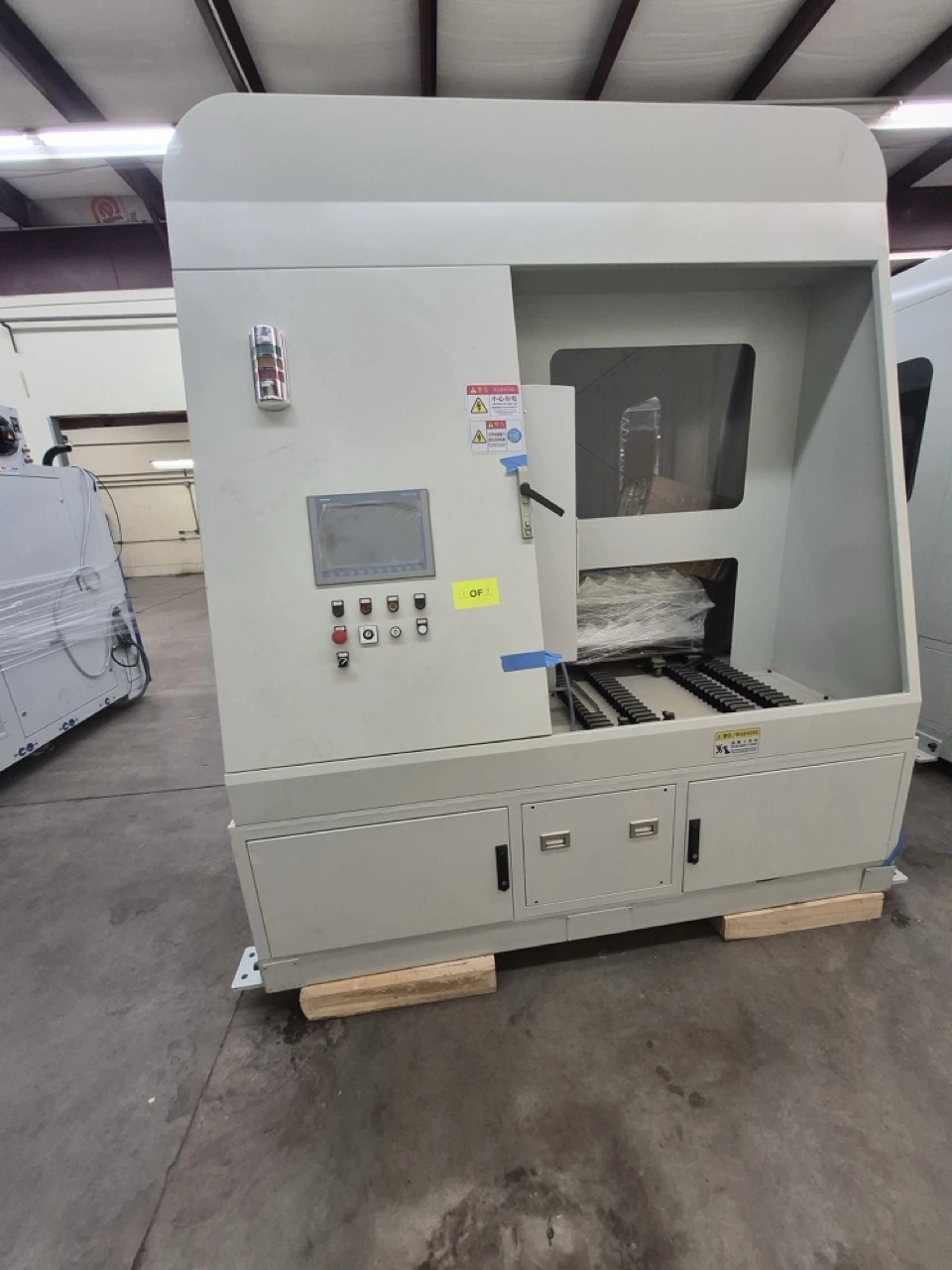

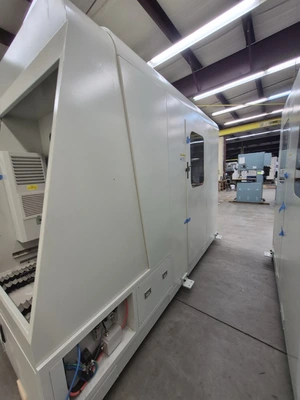

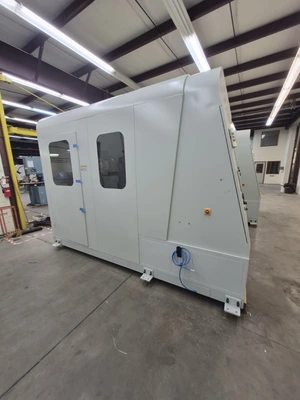

USED 2022 KINGSTONE ROBOTIC BELT GRINDER

Grinding Heads
Type: Dual Floating Belt Grinding Heads
Quantity: 2
Configuration: Symmetrical

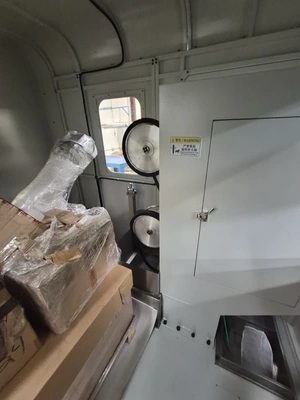

Abrasive Belts
Belt Length: 70.9″
Belt Configuration: 4 Belts
Grit: Configurable
Drive
Motor Power: 3HP
Drive Type: Shared motor driving dual sanders
Robot
Model: FANUC M-10iD/12
Payload: 26.4 lbs
Axes: 6-Axis
Table/Workholding
Type: Double-Layer Loading Table
Adjustment: Adjustable height between layers
Function: Simultaneous load/unload
Floor Layout: 98.4″ x 94.5″ x 102.4″
Weight: approx 15,000 lbs
Equipped With:
FANUC M-10iD/12 Robot Arm
Dust Collector
PLC Polishing System
Dual Floating Grinding Heads
Double-Layer Loading Table
