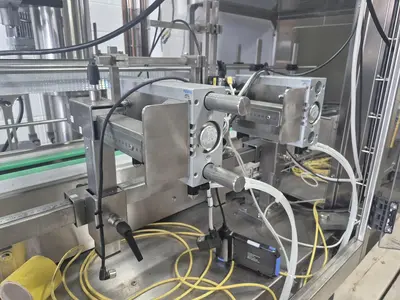

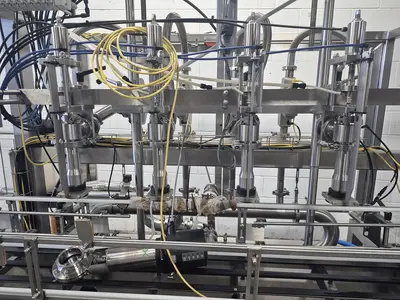

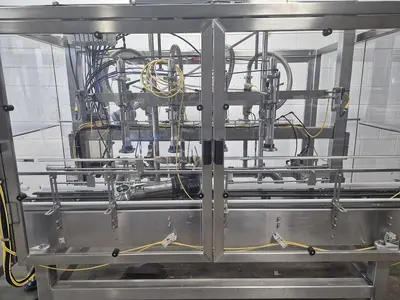

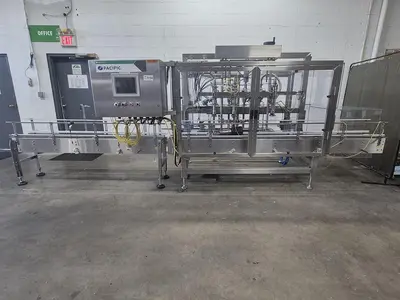

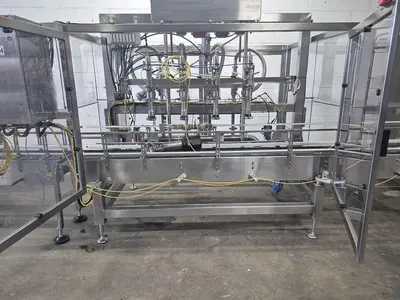

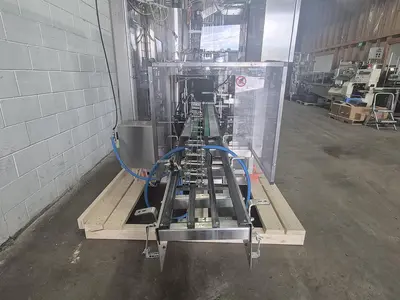

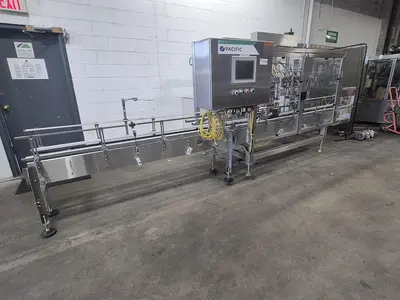

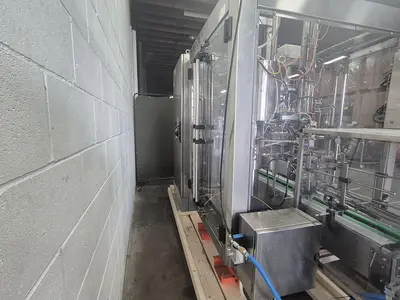

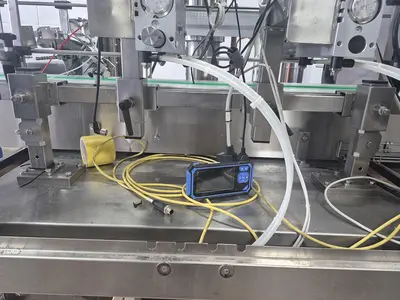

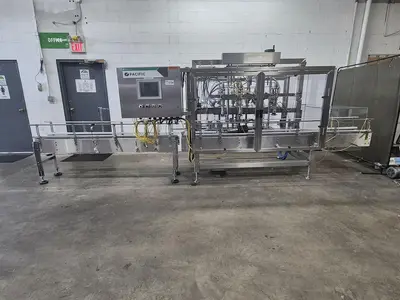

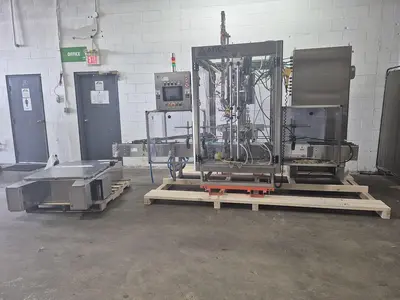

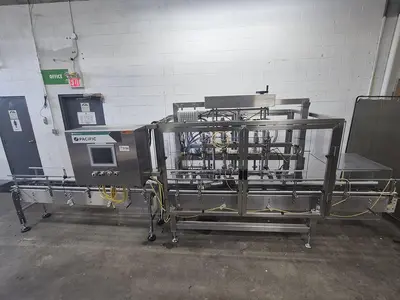

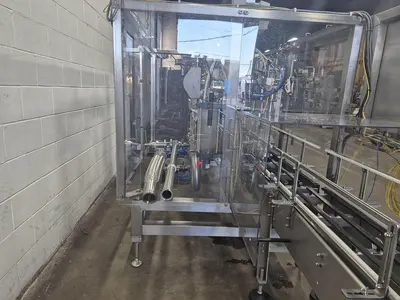

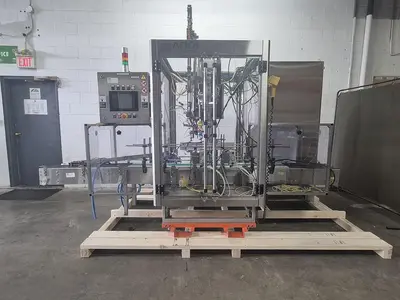

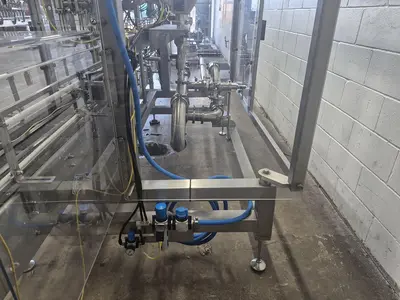

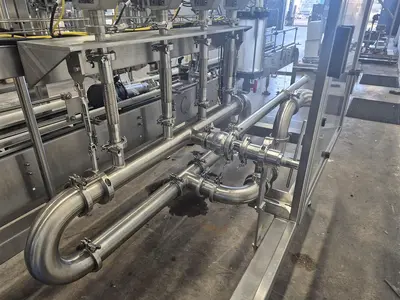

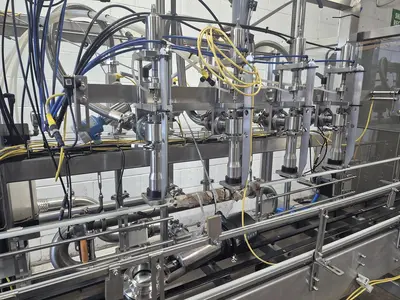

Pacific 4-Head Gravimetric Filler

Pacific 4-Head Gravimetric Filler

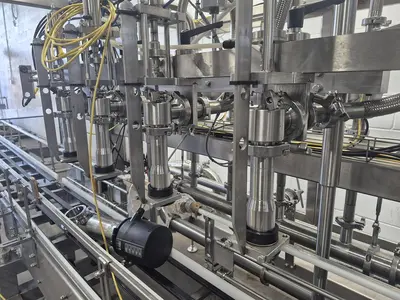

Is a precision packaging machine used to fill liquid or semi-viscous products into containers based on weight rather than volume. By using load cells to measure the container's weight in real-time, these systems ensure high accuracy regardless of changes in product density, temperature, or aeration.
Specs:

High Accuracy: Typically delivers a fill accuracy of ± 0.1% or better
Load Cell Integration: Uses individual scales at each filling station to tare the container weight and measure only the product
Dual-Speed Filling: Employs a "bulk and dribble" method—fast flow for the majority of the fill and a slow "top-off" speed for final precision
Hygienic Design: Constructed with 316L stainless steel wetted parts and often includes CIP (Clean-in-Place) capabilities for easy sterilization
Versatile Handling: Capable of filling a wide range of containers, from 2 oz bottles up to 5-gallon pails or even larger drums and totes
Applications Used In: Food & Beverage, Chemical & Industrial and Personal Care

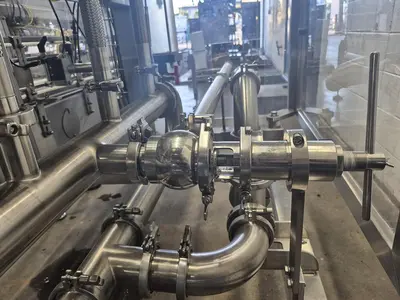

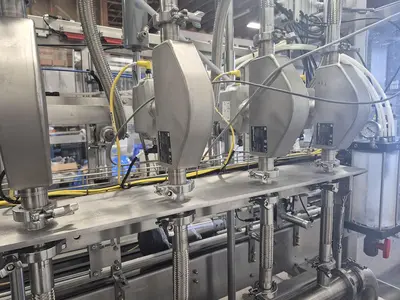

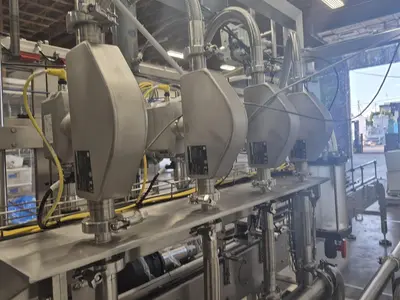

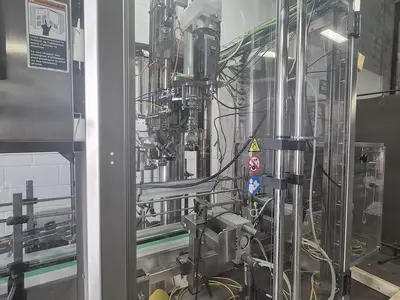

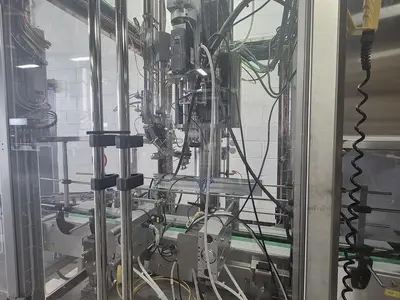

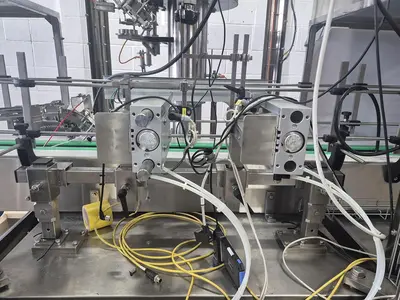

Has 4 Endress+Hauser Dosimass Coriolis Flowmeter
Specifically designed for high-precision filling and bottling applications

Model: Dosimass (Proline 8BE)
Measuring Principal: Coriolis mass flow, which allows for simultaneous measurement of mass flow, density, temperature, and volume flow
Wetted Materials: The measuring tube is made of 1.4539 (904L stainless steel), and the process connection is a 1" Tri-clamp (standard for hygienic applications)
Accuracy: Typically ±0.15% for liquid mass flow with high repeatability even in very short filling cycles
Power Supply: 24 VDC nominal (acceptable range: 20...30 VDC)

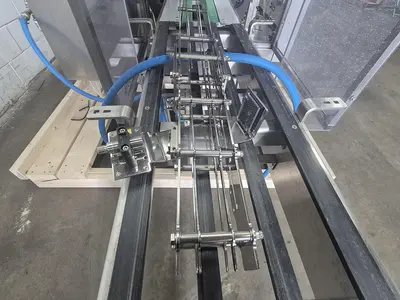

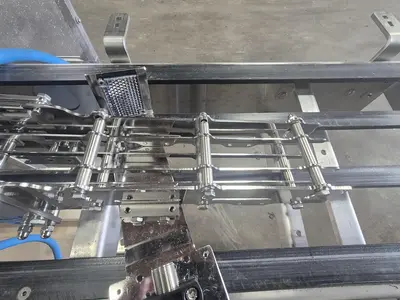

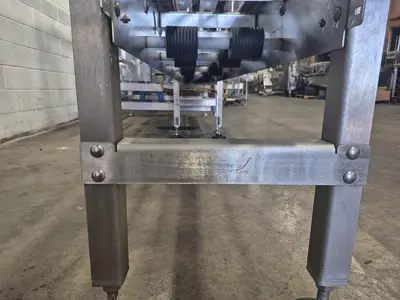

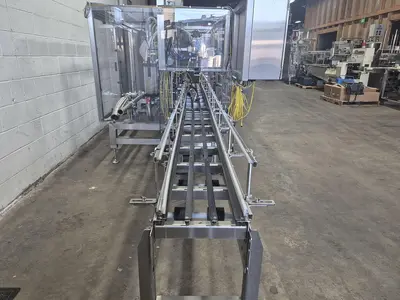

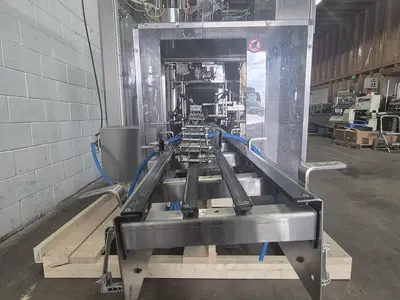

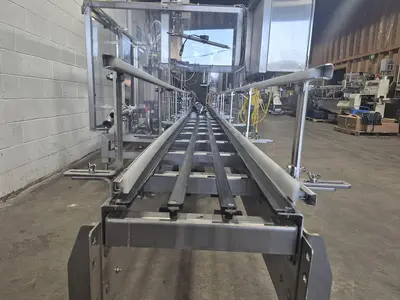

Conveyor at the end has a dimension:

83.5" L
12" W
30" Discharge Height

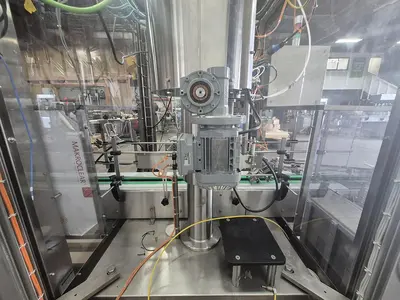

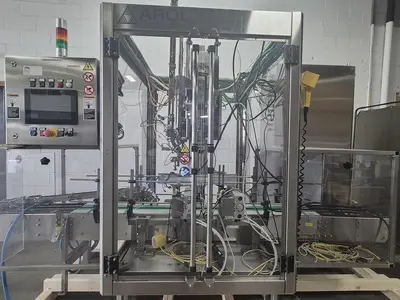

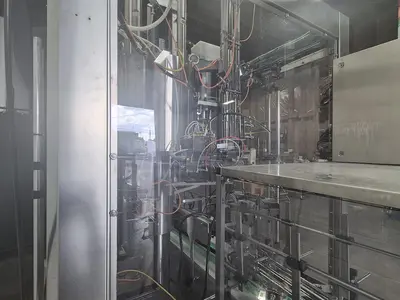

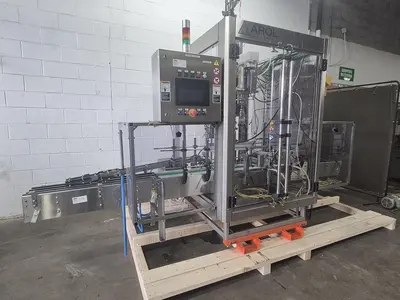

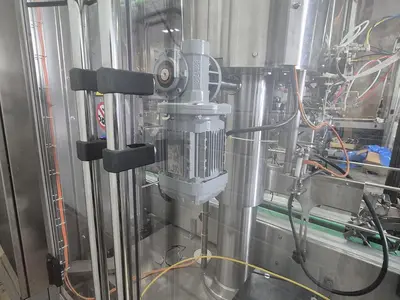

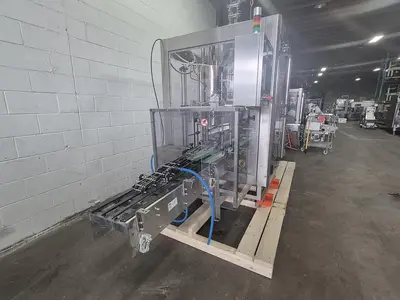

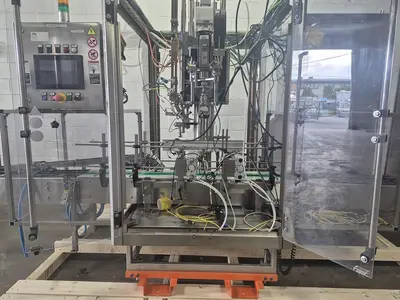

Comes with a AROL Closure Systems Filling and Capping System

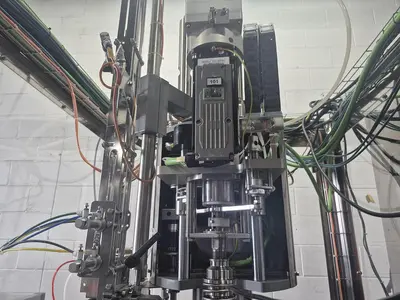

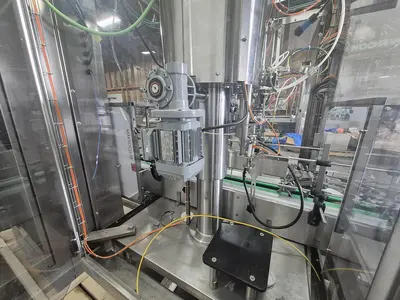

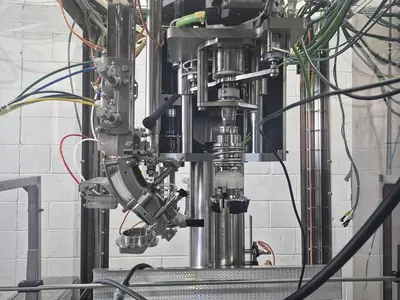

Is primarily used for the automated sealing and capping of containers across a wide range of industrial production lines. While it is most famous for its capping capabilities, it is often part of a larger "monoblock" system that performs both filling and capping in one synchronized process.
Specs:

Sealing Containers: Securely applying a vast array of closures including plastic screw caps, aluminum ROPP (roll-on pilfer-proof) caps, crown corks, T-corks, and specialized tethered or flip-top caps
Cap Feeding & Orientation: Using gravity elevators and sorters to ensure every cap is correctly positioned before reaching the bottle
Cap Treatment:  Sanitizing and cleaning caps using UV sterilization or dust removal systems before they are applied, which is critical for high-hygiene industries like dairy or pharmaceuticals
Voltage: 208Y/120 V
Phase: 3PH+GND (Three-phase plus ground)
60 Hz (Standard for North America)
Total Load Current: 39.7 A
Largest Motor FLA: 40 A
Short Circuit Rating: 10 kA rms sym at 208V
Cap Feed Track Measurements: The one inside the capper is 33⁄4 inches and the one laying down is 3 inches.

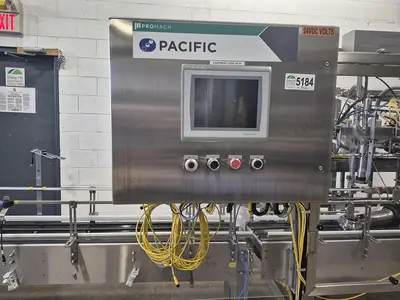

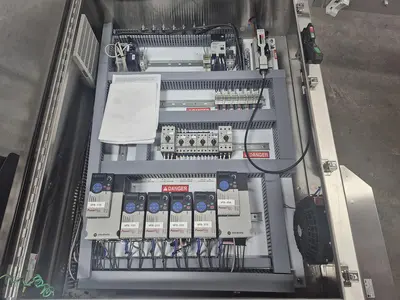

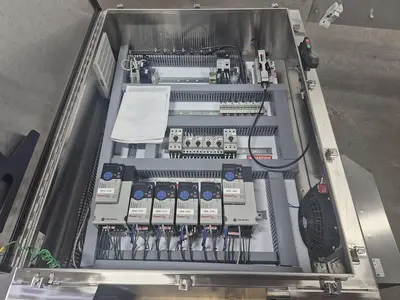

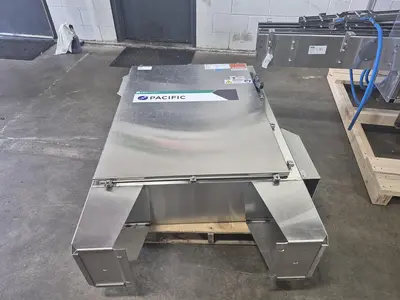

Pacific Flow Meter Filler Main Control Panel
Is specifically designed for industrial liquid filling and capping operations
Specs:

Supply Voltage: 208 VAC, 3-Phase + PE, 60 Hz
Control Voltage: 24 VDC
Main Disconnect: 70 Amps
Full Load Amp: 53.3 Amps
Largest Motor: 7.5 HP
SCCR: 25 KA
Enclosure Rating: Type 4X (indicates protection against corrosion and water ingress)

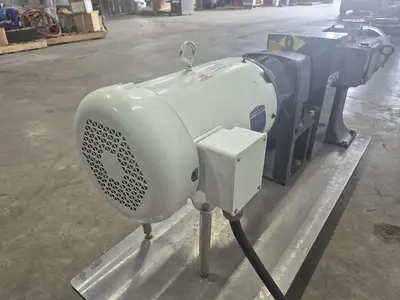

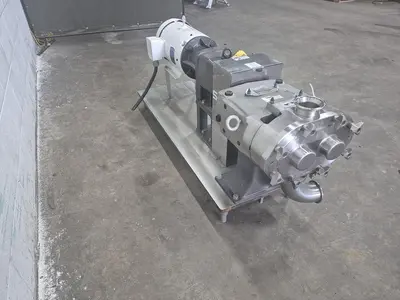

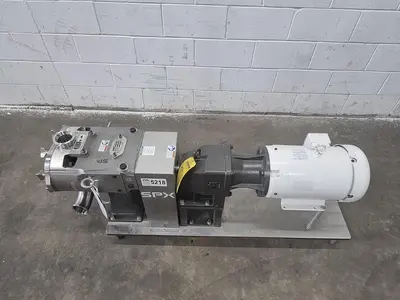

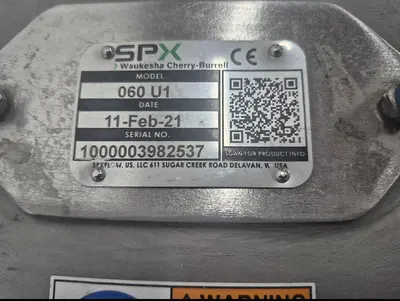

SPX Waukesha External Circumferential Piston Pump
Is a versatile "workhorse" pump primarily used for transferring delicate, thick, or particulate-heavy fluids in sanitary industries. Because it uses a gentle, low-shear pumping action, it moves products without damaging their texture or integrity, making it ideal for everything from chunky soups to cosmetic creams.
Specs:

Nominal Capacity: Up to 90 GPM
Maximum Pressure: 200 PSI (13.8 bar)
Displacement: 0.153 gallons (0.579 liters) per revolution
Operating Speed: Up to 600 RPM
Temperature Range: -40 Degrees Fahrenheit (-40 Degrees Celsius) to 300 Degrees Fahrenheit (149 Degrees Celsius)
Inlet/Outlet Diameter: 2.5 inches

Powered by a Baldor-Reliance CEWDM3710T 7.5 HP Motor

Power Output: 7.5 HP (5.5 kW)
Speed: 1770 RPM (Base) / 1800 RPM (Synchronous)
Voltage: 230/460V (3-Phase)

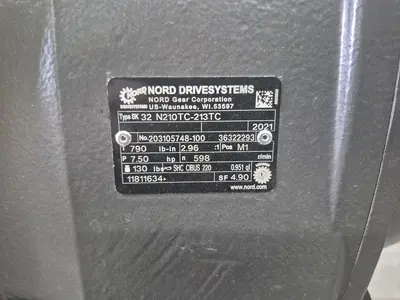

Nord SK 32 N210TC-213TC Helical In-Line Gear Unit

Torque: 790 lb-in
Gear Ratio: 2.96:1
Output Speed: 598 r/min
Input Power Rating: 7.50 HP

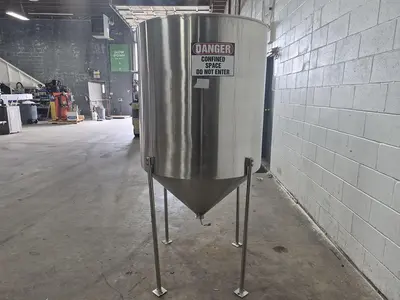

SS 177 Gallon Cone-Bottom Tank
Specs:

Height of Tank (straight side): 37 inches
Cone Height: 24.5 inches
35 inches across
57 inches depth

Location Code: B8(belts for filler)
Dimensions (l x w x h): 147" x 69.5" x 75"
