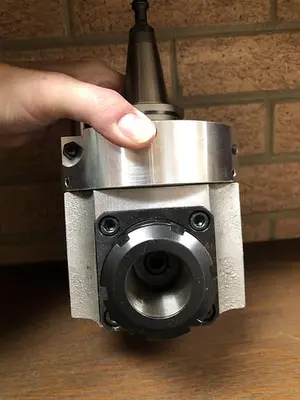

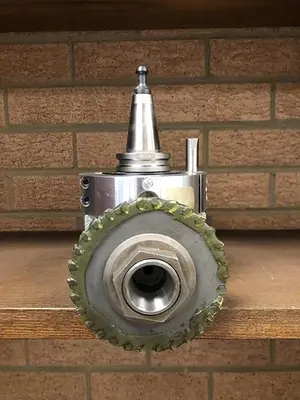

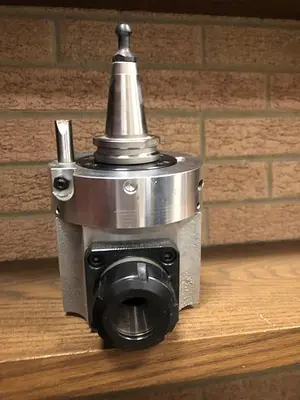

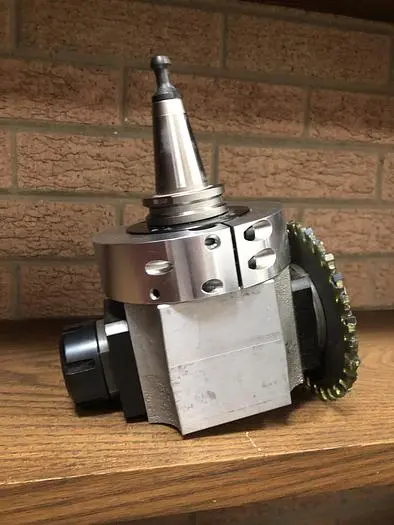

NEW HSD ISO-30, 90-DEGREE DOUBLE-SPINDLE AGGREGATE WITH 5" DIAMETER SAW BLADE

NEW HSD ISO-30, 90-DEGREE DOUBLE-SPINDLE AGGREGATE WITH 5" DIAMETER SAW BLADE
PA-CN-001

Standard Specifications, (to be verified):
- Electro-spindle rotation speed: 12,000 rpm max
- Tool rotation speed: 8.400 rpm max
- Speed ratio: 1:0,7
- Electro-spindle coupling: ISO 30
- Tool shank diameter: 2/20 mm
- Max bit diameter: 20mm
- Blade diameter: 0215mm
- Working depth: 50mm
- Weight: 6 kg
- Working temperature: 70° C max
- Lubrication: grease Kluber NBU 15

Condition: New
Stock Number: PA-CN-001
