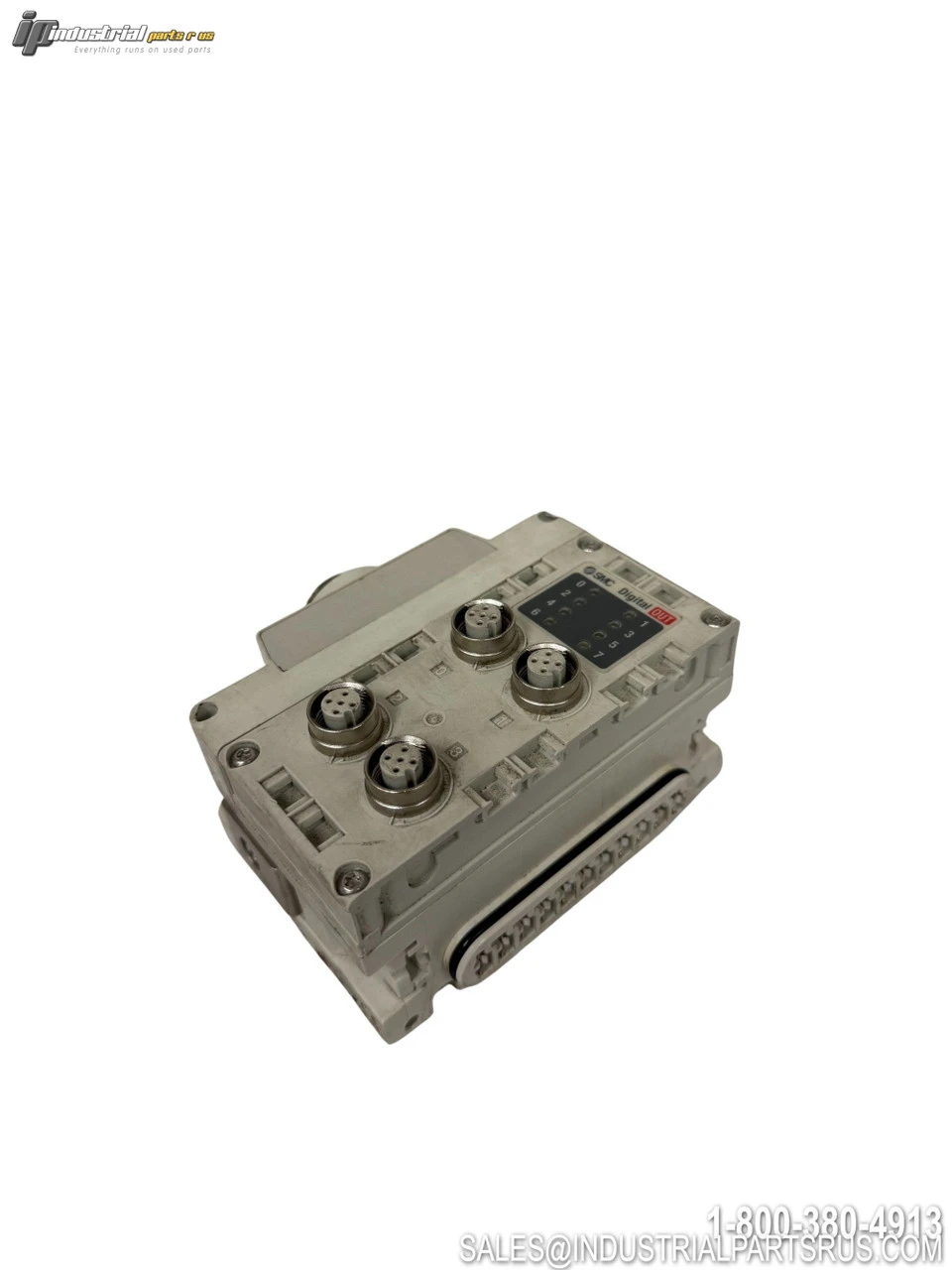

USED SMC EX600-DYPB

The SMC EX600-DYPB is a digital output unit designed for the EX600 fieldbus system series. This programmable unit provides 8 PNP outputs with M12 connector interfaces, offering excellent flexibility for industrial automation applications. The unit features comprehensive diagnostic capabilities and is compatible with multiple communication protocols including PROFIBUS-DP, DeviceNet, CC-Link, and EtherNet/IP.
Specification
Value
Brand
SMC
Model/Part Number
EX600-DYPB
Series
EX600
Output Type
PNP
Number of Outputs
8
Output Configuration
2 outputs per connector
Power Supply Voltage (Control)
24 VDC Class2, 2A
Power Supply Voltage (Output)
24 VDC Class2, 2A
Max Load Current
0.5A per output, 2A per unit
Connector Type
M12 (5-pin) socket
Number of Connectors
4
Current Consumption
50mA or less
Enclosure Rating
IP67
Operating Temperature
-10°C to 50°C
Operating Humidity
35% to 85% RH (no condensation)
Protection
Short circuit protection
Diagnostic Features
LED status indicators, open circuit detection
Withstand Voltage
AC 500V for 1 minute
Weight
0.69 lbs
Compatible Protocols
PROFIBUS-DP, DeviceNet, CC-Link, EtherNet/IP, EtherCAT, PROFINET
We warranty all items for 30 days from date of purchase.

SKU: AI1075
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Full Load Amps: 0.5A per output, 2A per unit
Manufacturer: SMC
Enclosure Type: IP67
Part Number: EX600-DYPB
Shelf: K-43
Model: EX600-DYPB
MPN: EX600-DYPB
Type: I/O Module
