USED 2015 FICEP A162

CAPACITY:
Punch Tonnage Capacity: 72 Tons
Shear Tonnage Capacity: 200 Tons
Min. Angle Size, A-36: 1-3/16" x 1-3/16" x 1/8"
Max. Angle Size, A-36: 6-3/8" x 6-3/8" x 5/8"
Max. Angle Size, Grade 50: .... 6" x 6" x 5/8"
Max. Diameter, Standard Tooling: 1-3/16"
Dia. Thru Thickness, A-36: 1-3/16" - 5/8"
Dia. Thru Thickness, Grade 50: 1-1/16" - 5/8"
Min. Length Of Section: 33-1/2"
Max. Speed Of Angle: 131 FPM
Gauge Line Positioning Speed: 52 FPM

Equipped With:

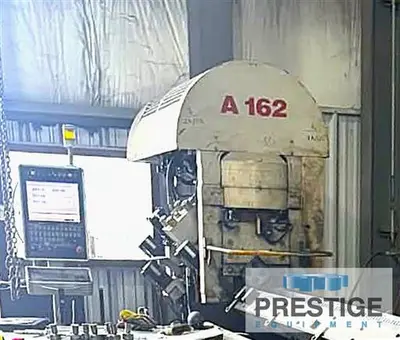

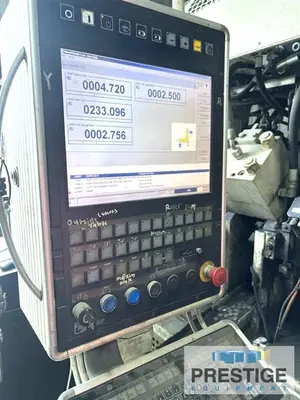

Ficep Pegaso CNC Control

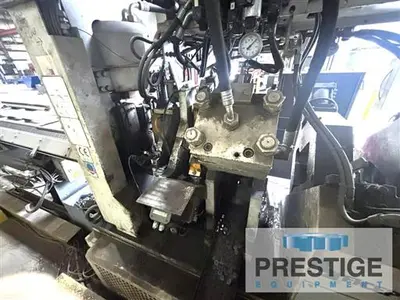

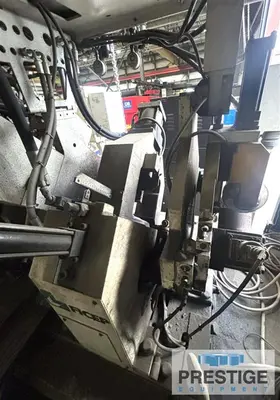

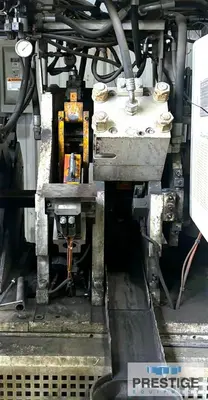

(2) Fixed Mounted Hydraulic Punching Units

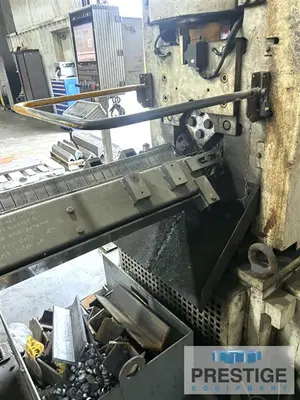

Hydraulic Shearing Unit

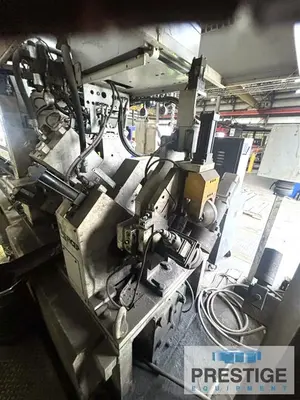

38-Station Marking Unit

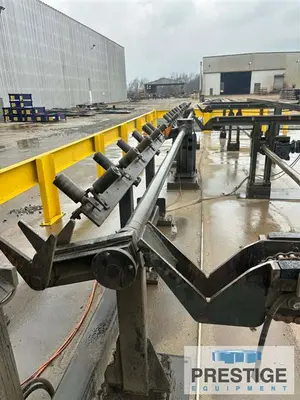

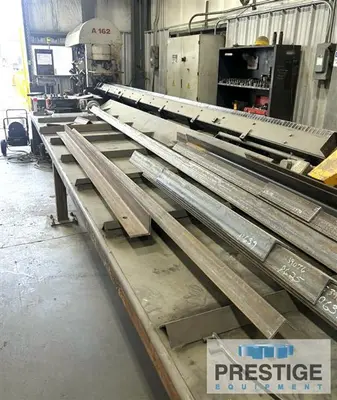

Infeed Transfer Table for 40' Material

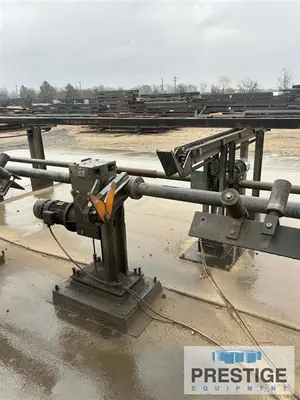

Rotary Loader

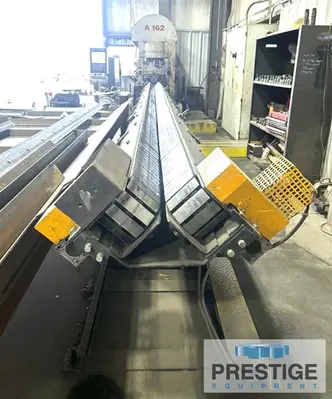

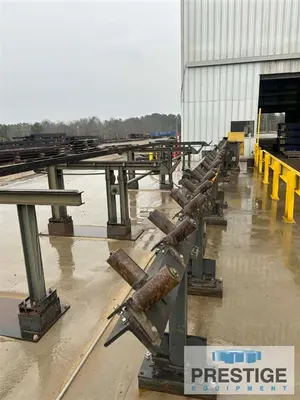

Infeed Conveyor For 60' Material (Note: Conveyor is longer than loading transfer)
23' Special Outfeed "Shutter" Conveyor

NOTE:
Inspect In Plant Under Power

Features:
Ficep Pegaso CNC Control
(2) 72 Ton Punching Units
200 Ton Hydraulic Shearing Unit
38-Station Marking Unit
Material Handling
