USED 2014 HAAS ST-40

15" 3 Jaw Hydraulic Chuck
Tool Presetter

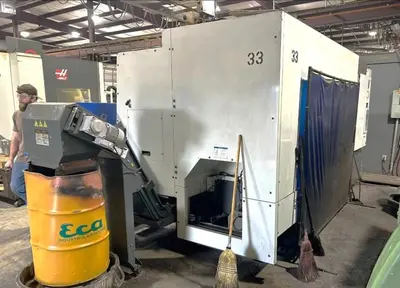

Chip Conveyor - Belt Style
Fully Programmable Tailstock
Remote Jog Handle
2 Speed Geared Headstock
USB Port Interface
RS 232 Port Interface
Rigid Tapping
15" Color LCD Monitor

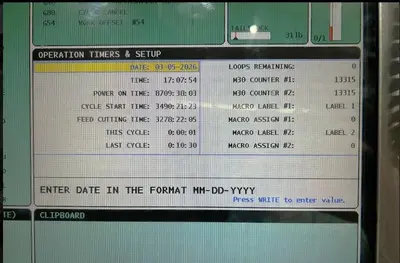

**Power On Hours 8,709**
**Cycle Start Hours 3,490**
**Feed Cutting Hours 3,278**

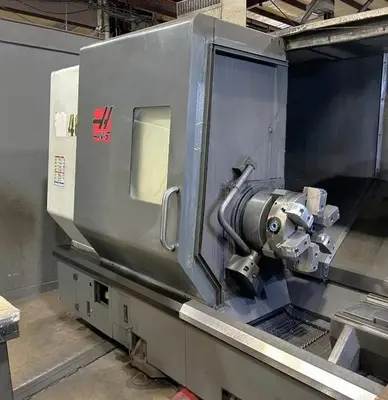

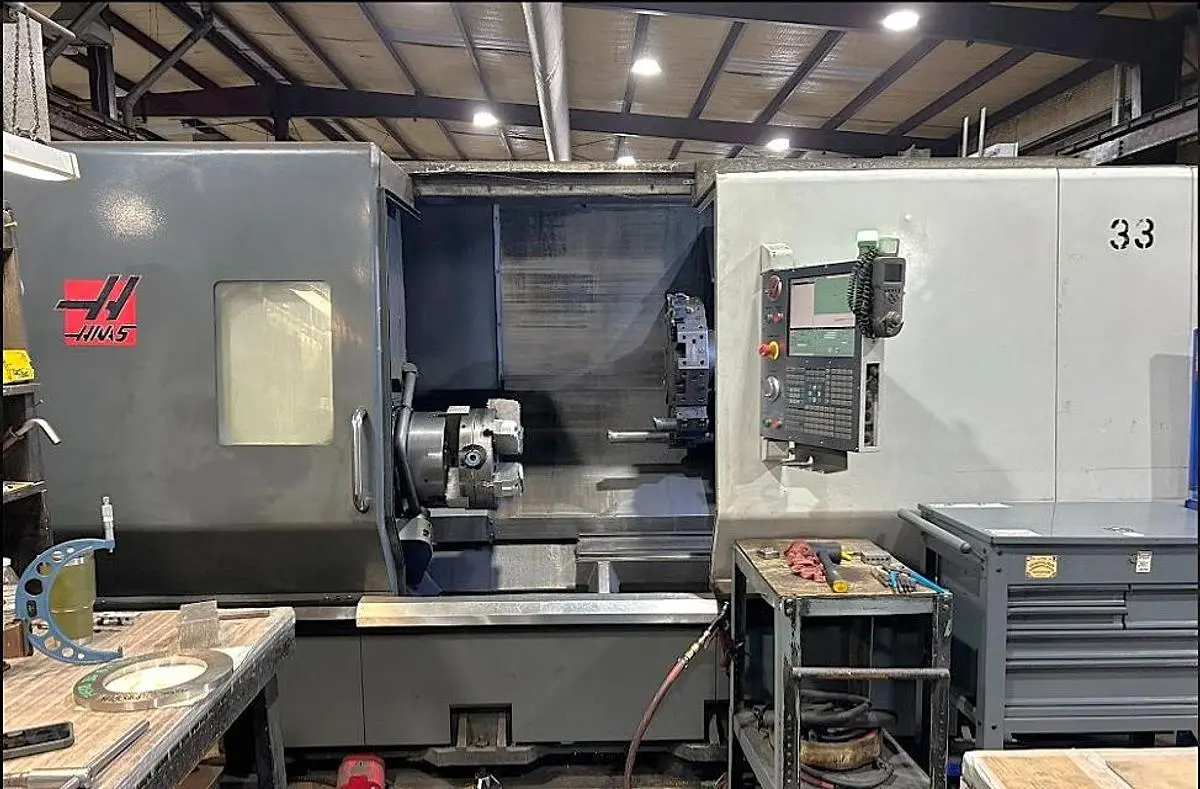

The 2014 Haas ST-40 CNC Lathe is a powerful and reliable machine well-suited for various industrial applications. This model includes a 15" 3-jaw hydraulic chuck and a tailstock, allowing for versatile handling of large workpieces. It boasts a substantial maximum swing of 40" and a swing over cross slide of 25.5", with a generous distance of 44" between centers, providing adequate room for diverse machining tasks.

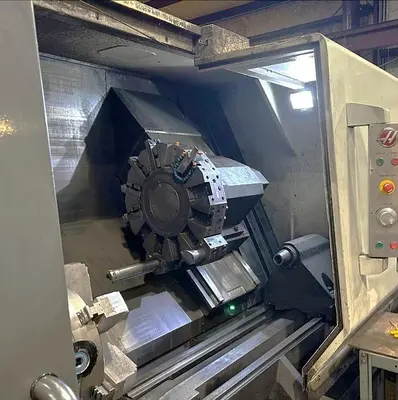

Equipped with a Haas CNC Control, the ST-40 offers an intuitive interface for precision operations. It features a 40 HP spindle motor with a speed of up to 2,400 RPM, facilitating efficient material removal. The machine's X-axis and Z-axis travels measure 17" and 44", respectively, enabling complex components to be processed with ease. A 12-station bolt-on turret enhances changeover efficiency, while rapid traverse rates of 710 IPM ensure brisk movements between cuts.

Additional features such as a tool presetter, remote jog handle, and chip conveyor further optimize the machining process by increasing accuracy and reducing downtime. With dimensions of 150"x77"x74" and weighing 27,000 lbs, the Haas ST-40 is a substantial piece of equipment, designed to handle demanding production environments. This used model, with 3,278 feed cut hours, continues to provide robust and effective performance in precision machining tasks.

Control: Haas CNC Control
Chuck Size: 15" 3-Jaw Hydraulic Chuck
Maximum Swing: 40"
Maximum Swing Over Cross Slide: 25.5"
Distance Between Centers: 44"
X-Axis Travel: 17"
Z-Axis Travel: 44"
Spindle Nose / Spindle Bore / Bar Capacity: A2-8"/ 4.62" / 4"
Spindle Speed: 2,400 RPM
Spindle Motor: 40 HP
Number of Turret Positions: 12 Station Bolt on Style Turret
Rapid Traverse Rates: 710 IPM
Tailstock Center: #5 MT
Machine Dimensions LxWxH: 150"x77"x74"
Machine Weight: 27,000 lbs
