USED 2017 HAAS VF2

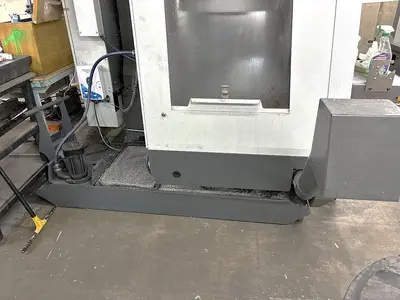

Auger Style Chip Conveyor
Rigid Tapping
1 GB Programming Memory
Wifi Interface
Ethernet Interface
USB Port Interface
Haas Connect
Media Display by M-Code
55 Gallon Coolant System with Tank & Pump
Machine Wired 220V Electrics

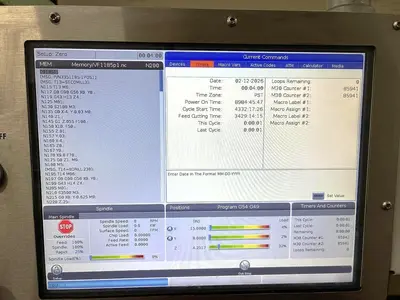

**Power On Hours 8,984**
**Cycle Start Hours 4,332**
**Feed Cutting Hours 3,429**

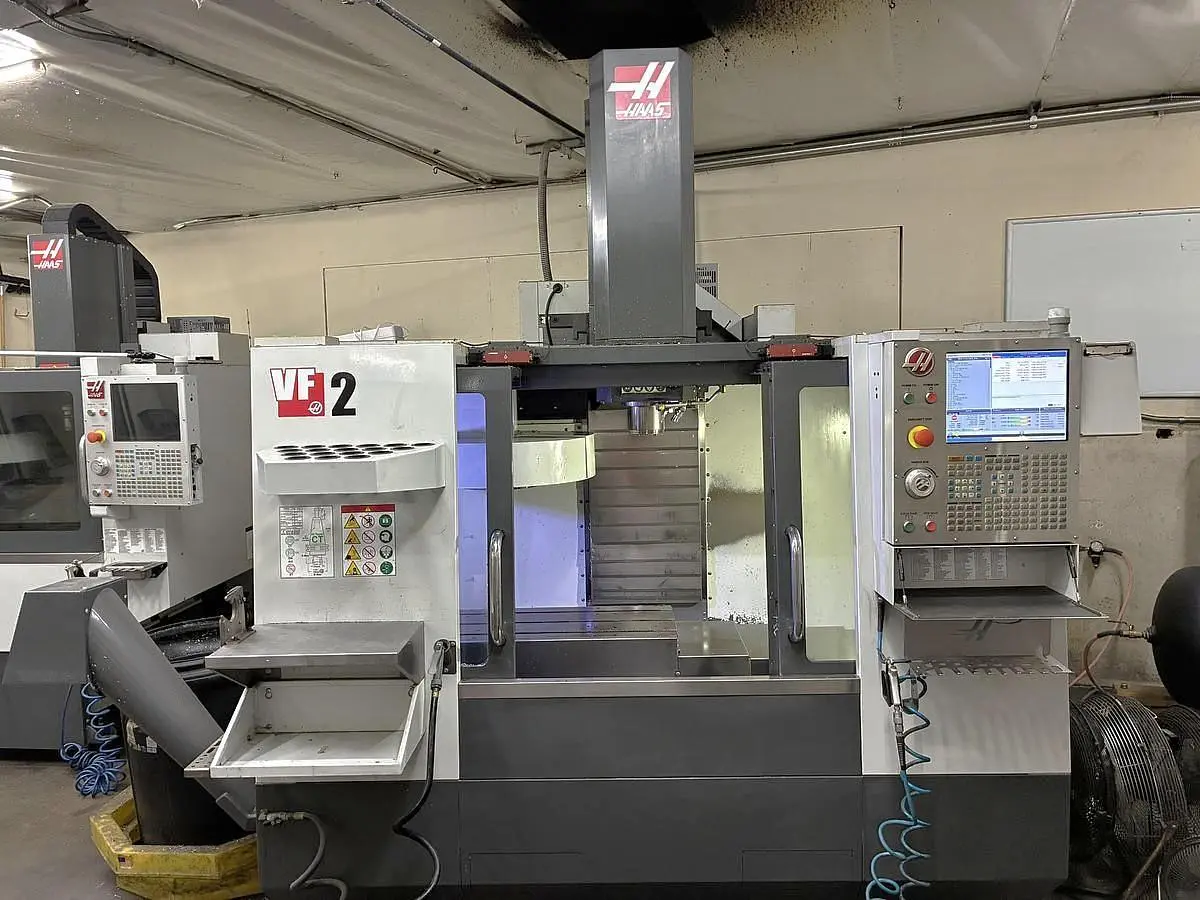

The 2017 Haas VF2 is a 3-axis vertical machining center, featuring key attributes for efficient operations. This model is equipped with a chip auger and rigid tapping, enhancing chip management and tapping performance, respectively. The machine boasts an 8100 RPM spindle speed and utilizes a CAT 40 spindle taper, driven by a robust 30 HP motor. This ensures powerful and precise machining capabilities, ideal for various applications.

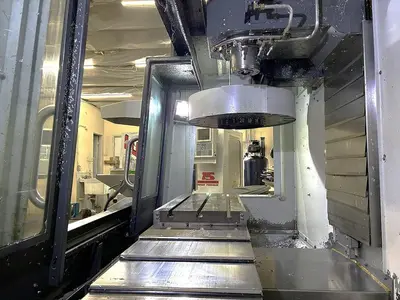

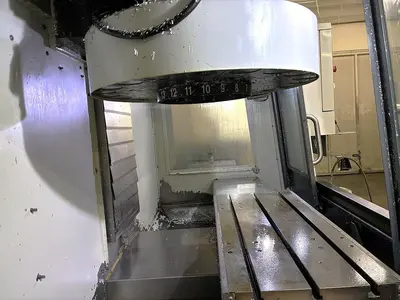

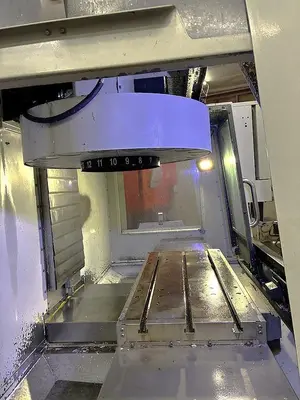

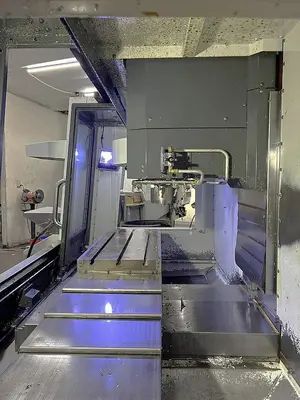

With a sizable table measuring 36" x 18" and a maximum load capacity of 3,000 lbs, the VF2 accommodates substantial workpieces. Its travels include 30" in the X-axis, 16" in the Y-axis, and 20" in the Z-axis, providing flexibility in part manufacturing. The spindle to table distance ranges from 4" to 24", allowing for a wide array of part dimensions. The machine also features a 20-position umbrella-style automatic tool changer, optimizing tool handling and reducing downtime.

In terms of physical presence, the VF2 measures 95" x 95" x 100" and weighs 9,000 lbs. With rapid traverse rates of 1,000 IPM, this CNC is designed for speed and productivity. Despite being a used machine, it has only 3,429 feed cutting hours, indicating well-preserved condition and reliable performance for continued use.

Table Size: 36" x 18"
Maximum Table Load: 3,000 lbs
X-axis travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Distance Spindle Nose to Table Top: 4" - 24"
Spindle Taper: CAT 40
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Tool Magazine Capacity: 20 Position Umbrella Style ATC
Rapid Traverse Rates: 1,000 IPM
Machine Dimensions LxWxH: 95"x95"x100"
Machine Weight: 9,000 lbs
