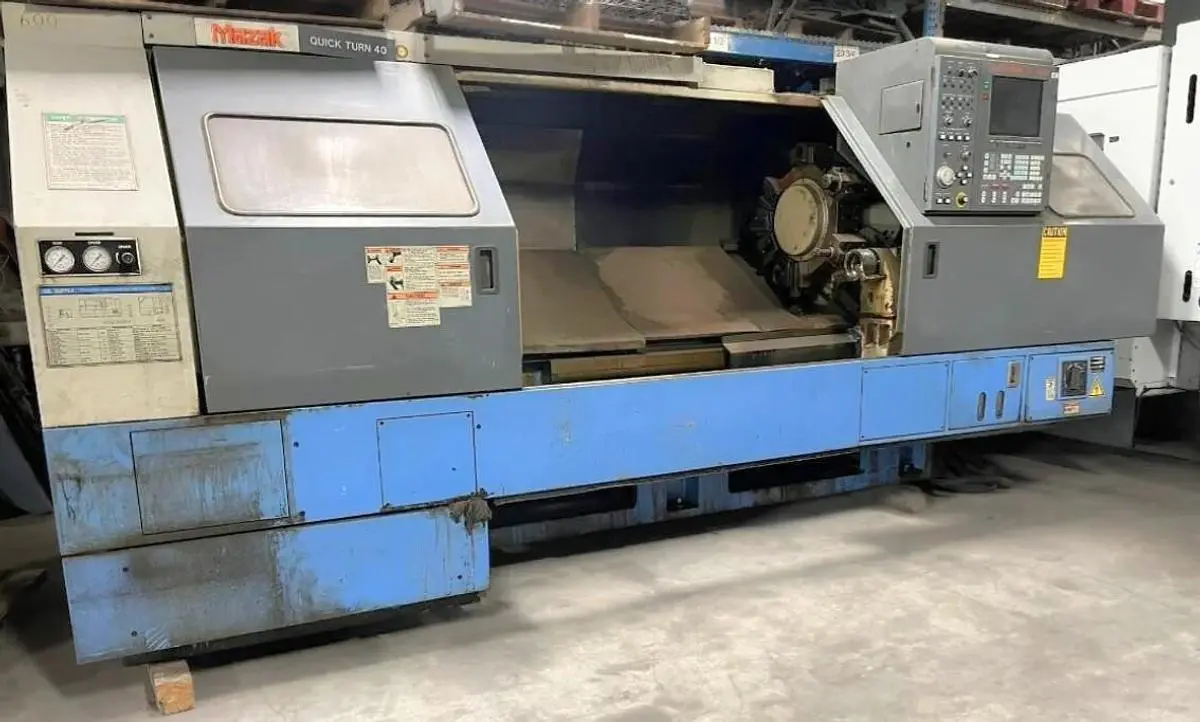

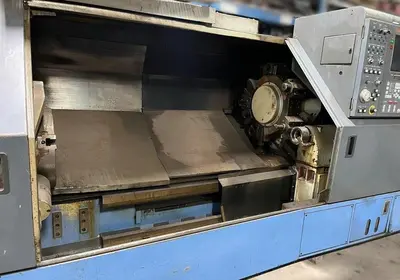

USED 1998 MAZAK QT40/1500

15" 3 Jaw Hydraulic Chuck
Automatic Tool Eye
Complete Coolant System
Multi-Tap Transformer
Programmable Tailstock
RS 232 Port Interface
All Available Tooling
All Available Manuals

Control: Mazatrol Tplus Control
Chuck Size: 15" Hydraulic Chuck
Maximum Swing: 20"
Maximum Cutting Diameter: 15.75"
Maximum Machining Length: 60.2"
Maximum Bar Capacity: 3.03"
X-Axis Travel: 11"
Z-Axis Travel: 61.3"
Spindle Nose / Spindle Bore: A2-8" / 3.46"
Spindle Speeds: 3,300 RPM
Spindle Motor: 40 HP
Transmission: 3 Ranges - 1,063 ft/lbs Torque
Number of Turret Positions: 12 Sided/24 Positions
Rapid Traverse Rates X/Z: 472 IPM / 709 IPM
Tailstock Quill Diameter / Center: 3.94" / MT #5
Machine Dimensions: 144" x 81" x 74.2"
Machine Weight: 12,568 lbs.
