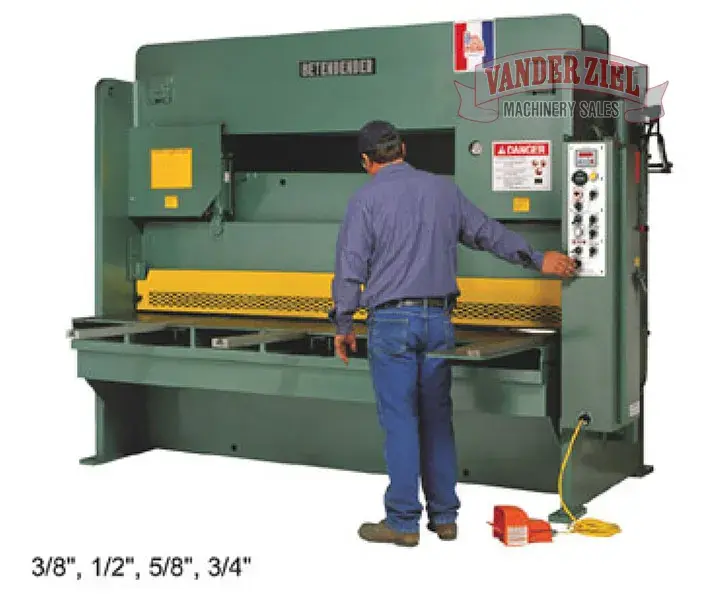

Betenbender 3/8" High Profile Shear - NEW

Betenbender 3/8" High Profile Shear - NEW
SKU # 0423004
3/8" Hydraulic Shears
Check up to five results to perform an action.
A precision cut doesn't happen by chance.
It takes a shear that can make a razor-sharp cut time after time. Betenbender overdriven and underdriven Hydraulic Shears are designed to do exactly that.
Betenbender designs simplicity and safety into its shears-with an advanced hydraulic system, and flexible operation. They're easy to operate, easy to maintain and able to withstand the rigors of today's production demands. A wide range of options are available.
Features

Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110v footswitch lets you interrupt the cutting stroke at any point in its cycle.

Easy Material Handling: A sturdy backgauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4' squaring arm with a recessed scale makes for fast, easy measurement.

Single Piece Top and Bottom, High Carbon, High Chrome Shock Resistant Knives: Provide four separate edges for clean cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials.

Electrical System: Meets NFPA 79 and construction requirements of the ANSI B11.4. All machines have disconnect switches magnetic starters, 110/120v controls, and 208-230/460v 3 phase, others optional.

Backgauges: A Betenbender Shear is capable of shearing 1/8" (10 GA) material to the following tolerance: Dimension - The width of the off-cut portion of the workpiece is within ±0.005 inch of the backgauge setting.

ModelOverall LengthAnchor Bolt Dimensions/LengthKnife LengthStrokes Per MinuteWeight
2' - 37548"40"28"124,400 lbs.
4' - 37575 1/2"56"52"1711,000 lbs.
6' - 37599 1/2"80"76"1715,100 lbs.
8' - 375123 1/2"104"100"1318,500 lbs.
10' - 375147 1/2"128"124"1121,000 lbs.
12' - 375171 1/2"152"148"1024,000 lbs.
14' - 375195 1/2"176"172"927,000 lbs.

***There is a steel surcharge of 10% on ALL base Betenbender machines as of November 2021. It is included in the price.
