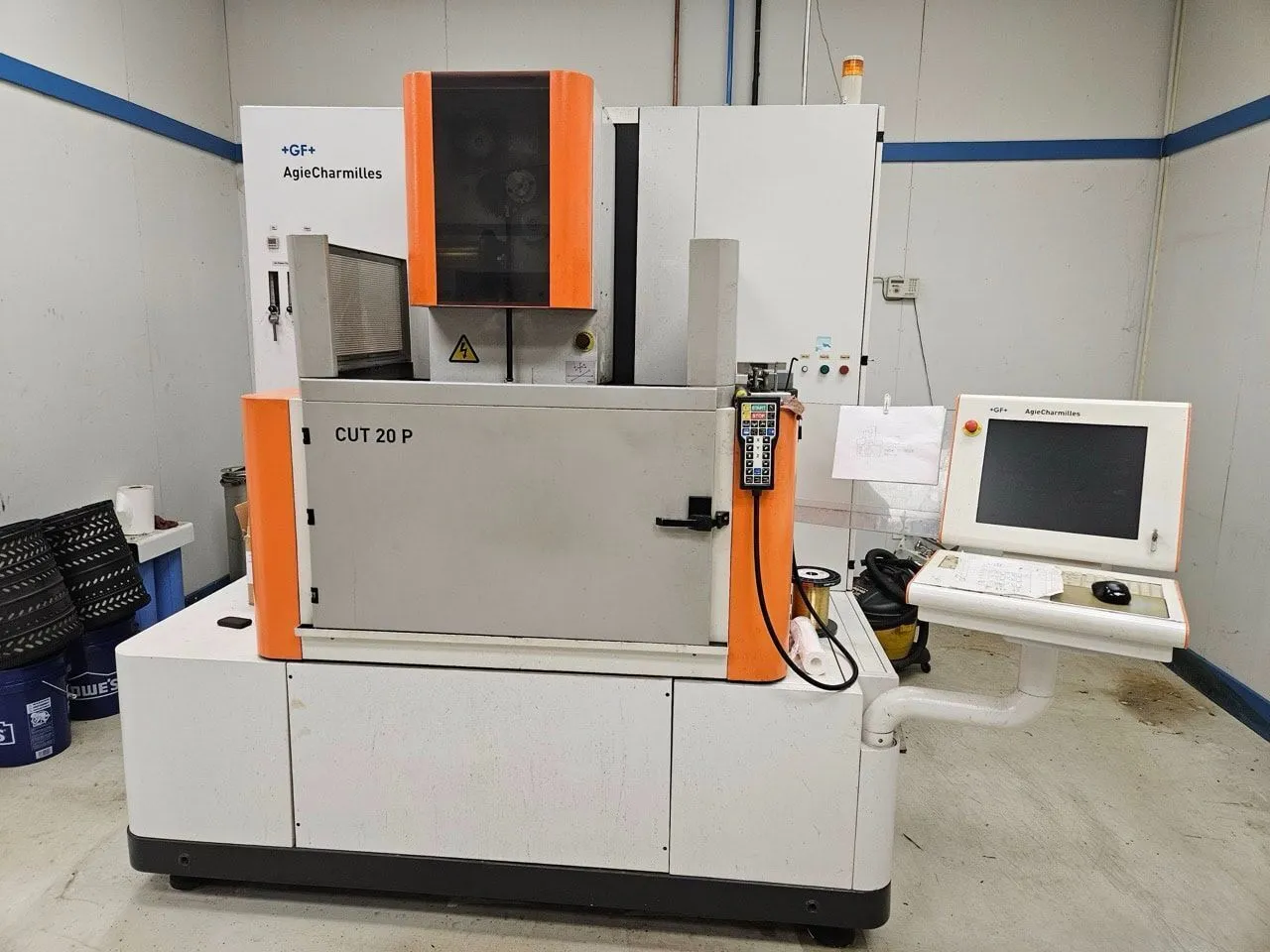

USED 2011 AGIECHARMILLES CUT 20 P

AGIECHARMILLES CUT 20 P Wire EDM, 2011, 5-axis, auto threading, submerged, table 27.55"x18.89", X/Y/Z: 13.78"/9.84"/9.84", U/V: 1.77", wire 0.004"-0.012", 211 gal tank, 882 lb capacity, dimensions 95"x79"x92", weight 5,820 lbs.

# of Axis: 5
Table Size – L: 27.55″
Table Size – W: 18.89″
Table Load Capacity: 882lb
X – Axis Travel: 13.78″
Y – Axis Travel: 9.84″
Z – Axis Travel: 9.84″
U/V – Axis Travel: 1.77 in
Auto Threading: Yes
Wire Diameter – Min: 0.004″
Wire Diameter – Max: 0.012″
Dielectric Tank Capacity: 211 gal
Submerged: Yes
Dimensions: 95″ x 79″ x 92″ tall
Weight: 5,820
