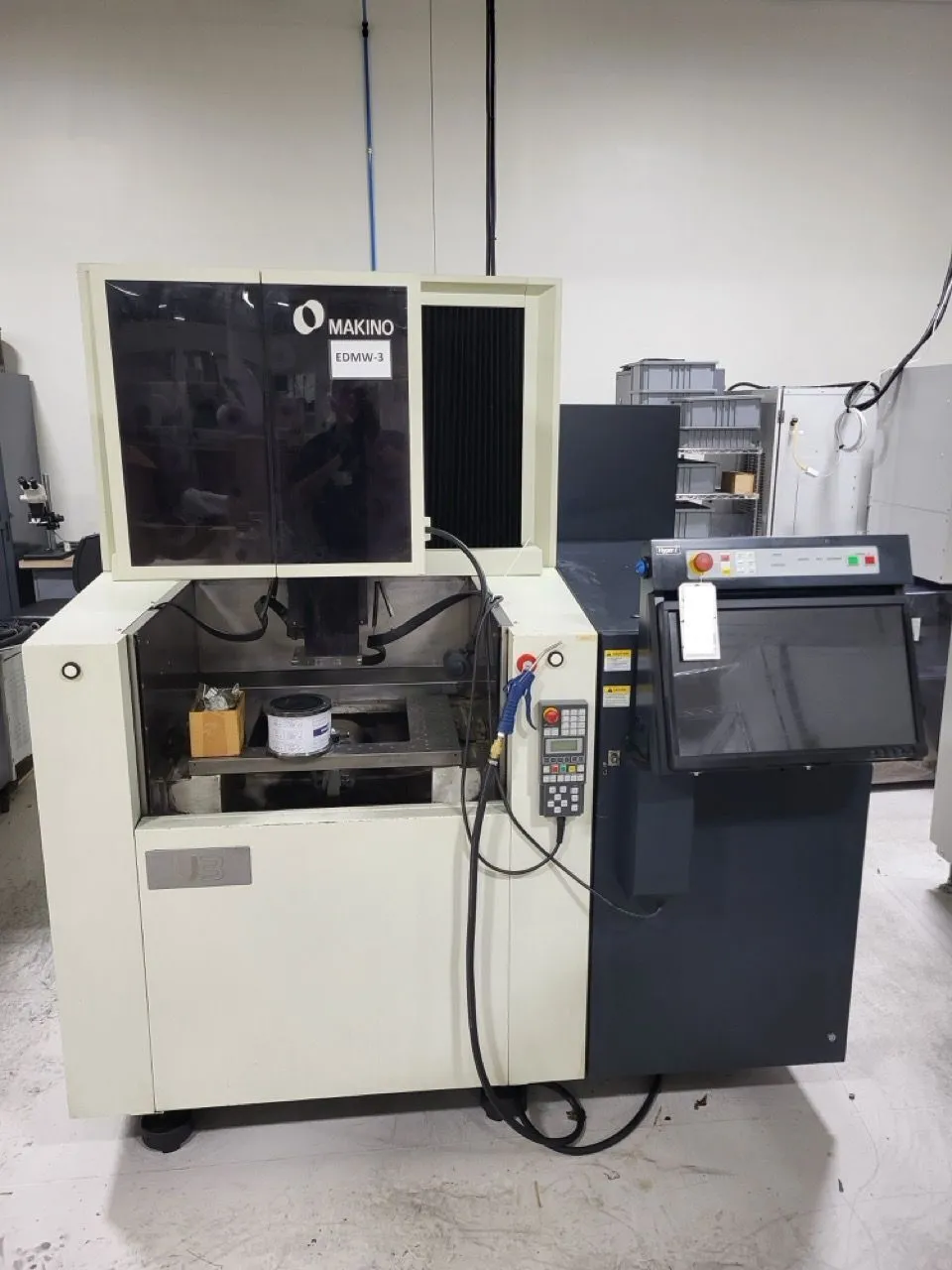

Discover precision with the 2014 MAKINO U3 Wire EDM, featuring Hyper-I Control, automatic wire threading, and filtration.
| X | 14.6" | 370.84 mm |
| Y | 10.6" | 269.24 mm |
| Z | 8.7" | 220.98 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Control | CNC (Hyper i) | CNC (Hyper i) |
X-Axis: 14.56″
Y-Axis: 10.63″
Z-Axis: 8.66″
U-Axis: ±1.97″
V-Axis: ±1.97″
Workpiece Capacity
Max Workpiece Size: 30.3″ X 23.2″ X 8.7″
Max Workpiece Weight: 1,322 Lbs
Table Size: 24.8″ X 17.7″
Wire Diameter Range: 0.004″ – 0.012″
Tank Size: 31.1″ X 24.1″
Power: 200/480 V, 3 Phase
Dimensions: 77″x 91″ x 84″ H (Approx.)
Weight: 7054 Lbs. (Approx.)
Hyper-I Control
Automatic Wire Threading
Chiller
Transformer
Filtration System
