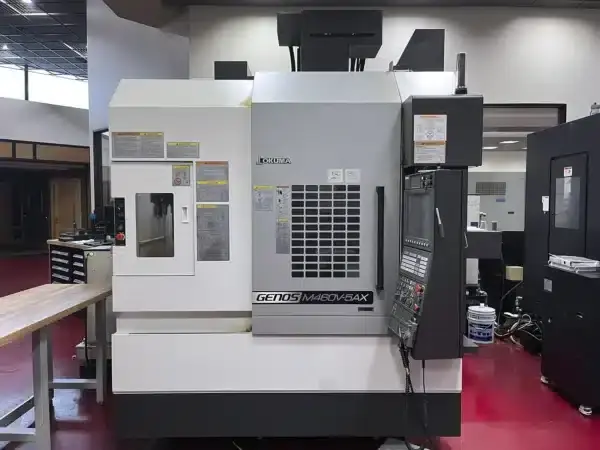

Okuma Genos M460V-5AX – 2021

Okuma Genos M460V5AX 5 Axis Machining Center
Machine specification

X-AXIS TRAVEL 30″

Y-AXIS TRAVEL 18.11″

Z-AXIS TRAVEL 18.11″

A-AXIS TRAVEL 20 to -110 degrees

C-AXIS TRAVEL 360 degrees

TABLE SURFACE TO SPINDLE NOSE 3.94″ to 22.05″

TABLE SIZE 15.75″

MAX WORK SIZE 23.62″ (Diameter) X 15.75″ (Height)

FLOOR TO TABLE TOP 41.34″

MAX LOAD CAPACITY 660 lbs

SPINDLE SPEED 15,000 RPM

SPINDLE TAPER CAT 40 Big plus

RAPID TRAVERSE X,Y 1575 ipm

RAPID TRAVERSE Z 1260 ipm

CUTTING FEEDRATE 1260 ipm

SPINDLE MOTOR 30/25 HP

ATC CAPACITY 32
Option / equipped with

Simultaneous 5 Axis Capability

Spindle Chiller

Coolant Thru Spindle (300 PSI)

CAT 40 Big Plus Tool Shank

Chip Conveyor

Renishaw RMP60 probing system
