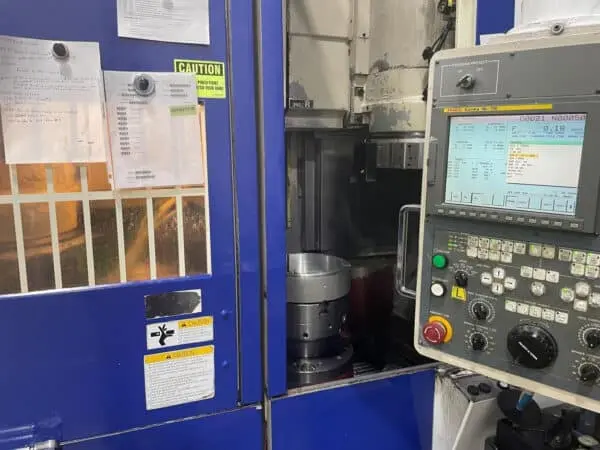

Okuma 2SP-V40 VTL – 2007

OKUMA 2SP-V40
MAIN SPECIFICATIONS

Swing Between Spindles .23.6″

Chuck Size (2) 12″ 3-Jaw Hydraulic Vertical Solid Chucks

Max. Cutting Dia. with Op. holders 22″

Max. Cutting Length 17.7″

Spindle Center Height from Floor 37.8″

Spindle Speed 25-2,500 RPM’s

Main Spindle Motor 25/30 HP.

Spindle Nose 2- A2-8

Turret Type 2-Drum Type

Tool Positions Turret 2-12 Station

X-Axis Travel 10.4″

Z-Axis Travel 17.7″

Rapid Rates X & Z 787 IPM

Machine Height 11.34″ H x 10.17″ W x 9.54″ L

Machine Weight 26,400 Lbs.

FANUC 18iTB

(2) Installed 12″- 3-Jaw Chucks
