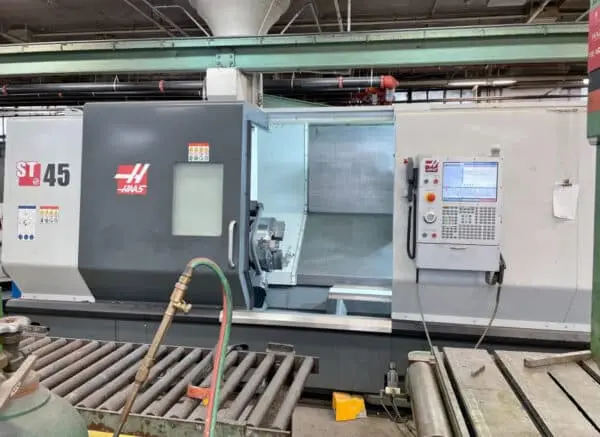

Haas ST-45 – 2023

HAAS ST45 CNC Lathe

MAX SWING 34.5″

MAX CUTTING DIAMETER 25.5″

MAX CUTTING LENGTH 44″

X-AXIS TRAVEL 17″

Z-AXIS TRAVEL 44″

CHUCK SIZE 18″

BAR CAPACITY 65″

SPINDLE BORE 7″

SPINDLE NOSE A2-11

SPINDLE MOTOR 40 hp

SPINDLE SPEED 1,400 RPM

RAPID TRAVERSE RATE X-AXIS 710 in/min.

RAPID TRAVERSE RATE Z-AXIS 710 in/min.

TURRET POSITIONS 12

TURRET TYPE BOLT-ON

DIMENSIONS 230″ x 100″ x 90″

WEIGHT 28,000 LBS

HAAS NEXTGEN CONTROL

2-SPEED GEARBOX

18”, 3-JAW SAMCHULLY HYDRAULIC CHUCK (MH-218)

6.5” BAR CAPACITY

EXTENDED TOOL POCKET (UP TO 33”)

PROGRAMMABLE TAILSTOCK

TOOL PRESETTER

CHIP CONVEYOR

HIGH-PRESSURE COOLANT (1,000 PSI)

AUXILIARY COOLANT FILTRATION SYSTEM

CHIP TRAY FILTER KIT

REMOTE JOG HANDLE

VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)

MEDIA DISPLAY M-CODE (M130)

SPINDLE ORIENTATION

RIGID TAPPING

MACROS

ETHERNET

USB PORT

1GB MEMORY

WIFI CONNECTIVITY
