DOOSAN LYNX 2100LB – 2020

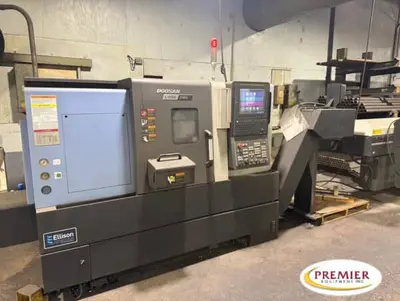

Doosan Lynx 2100LB CNC Lathe

Swing over bed:  23.6”
Swing over saddle:  15.7”
Recommended turning diameter:  8.3”
Max. turning diameter:  13.8”
Max. turning length:  21.7”
Bar working diameter:  2.6”
X-axis:  8.1”
Z-axis:  22.0”
Spindle speed:  4500 RPM
Spindle motor power (15min/cont.) :  20/15 HP
Spindle Bore:  3.0”
Turret No.of tool stations:  12

Doosan-Fanuc i Series Plus CNC Control
COLLET Type CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
PARTS CATCHER
12′ LNS SPRINT 565 S2 BARFEED
