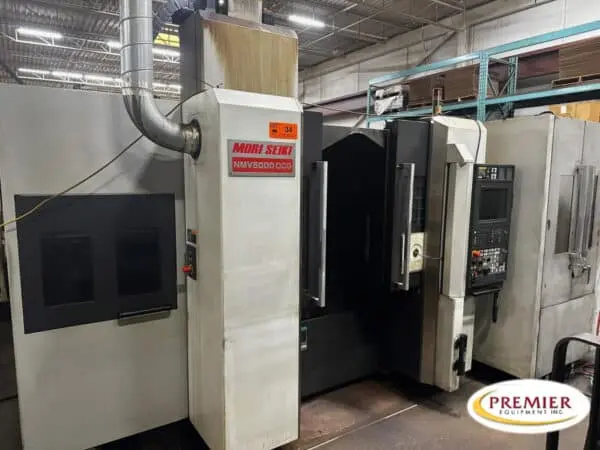

Mori Seiki NMV-5000DCG 5-Axis with 2P – 2008

Mori Seiki NMV5000 DCG with Pallet Changer 5-Axis CNC Vertical Machining Center

Table Working Surface19.7”
Table Load Capacity660 lbs
Max Workpiece Swing Diameter27.5”
Max Workpiece Height17.7”
X Axis Travel28.7”
Y Axis Travel20.1″
Z Axis Travel20.1″
Distance from Table Surface to Spindle Guarge Plane5.1” – 25.2”
B-Axis Travel+160 Deg – -180 Deg
C-Axis Travel360 Degree
Max Spindle Speed12,000 RPM
Spindle Motor20/25 HP
Type of Spindle Taper HoleNo. 40
Rapid Traverse X&Y / Z1968 / 1575 IPM
Magazine Capacity ATC
Max Tool Diameter3.5” / 4.9”
Max Tool Length11.8”
Max Tool Weight17.6 lbs
Tool Change Time1.8 sec Tool to Tool
Floor Space109” x 155” x 129”
Weight27,280 lbs

All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.

MSX-711 III CNC Control
Pallet Changer
Manual Pulse Generator
